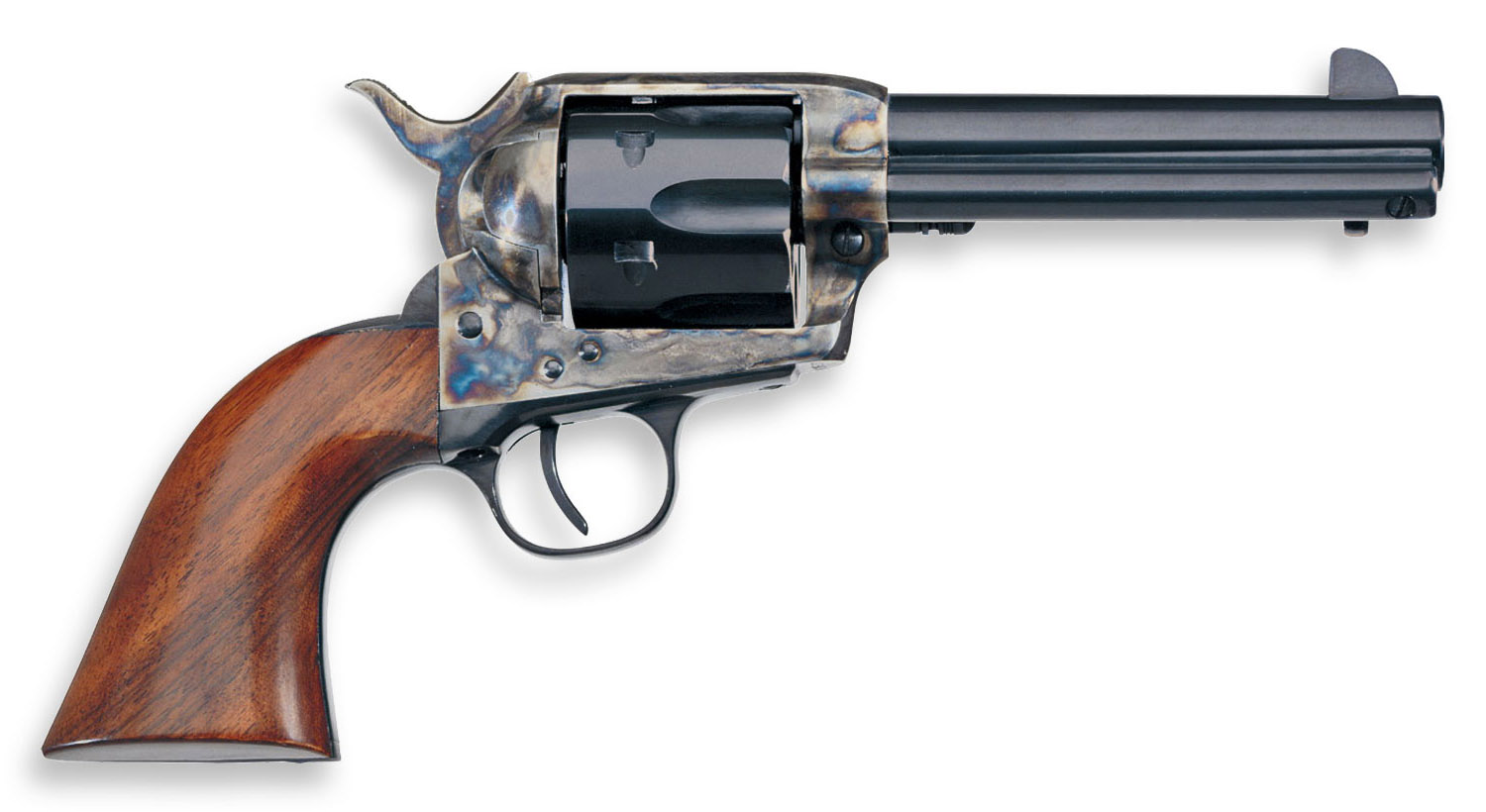

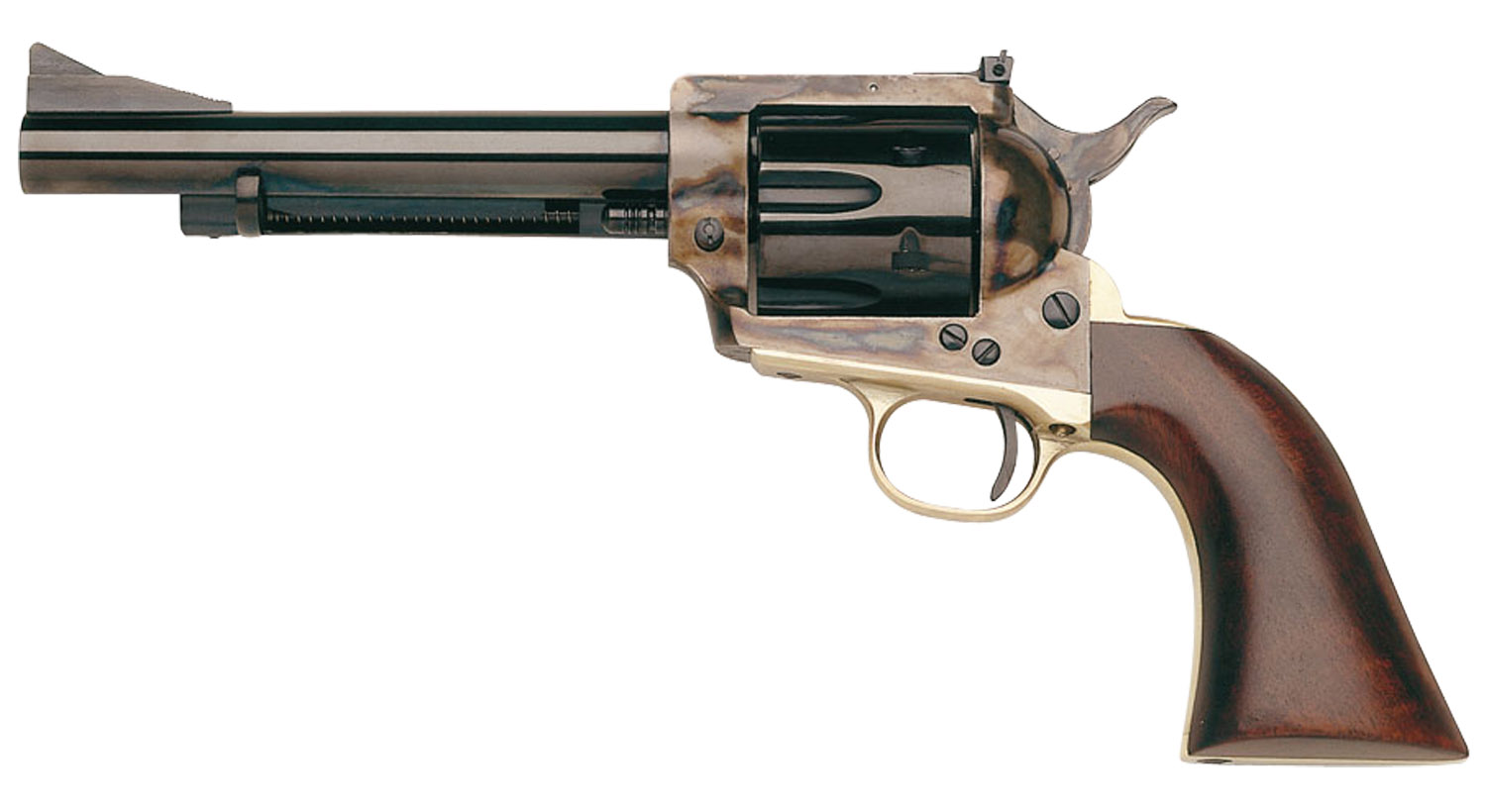

Made in 1872 this is a gun that needs no introduction. The buyer can specify either the “old model” screw retainer for the cylinder pin or the more convenient “new model” plunger. The grip frame can be either steel or brass and on the metal surface you can select standard blueing eye-catching charcoal blueing full nickel plating white finish old west antique f inish. Grips can also be selected i.e. smooth walnut checkered walnut black plastic polymer ivory pearl or buffalo. These single actions are available also with a “birdhead” style grip (only in walnut). Uberti has such a vast range of Single Action revolvers – between the finish caliber and barrel length you are looking at an assortment of over 500 000 different models. Incredible but true!
FinishesTechnicalParts and Schematics
000: |
STANDARD |
A00: |
OLD WEST ANTIQUE PATINA FINISH REV. |
C00: |
CHARCOAL BLUE FINISH |
W00: |
WHITE FINISH FOR REV. |
N00: |
NICKEL PLATING FOR REV. |
E35: |
S.A. GOLD ENGRAV. |
L06: |
LASERENGRAVING FOR S.A. PATTON |
Caliber: |
.32/20-.38SP-.357MAG-.38/40-.44SP-.45LC-.45ACP |
Length of Barrel: |
3″ – 3½” – 4″ – 4¾” – 5½” – 7½” – 10″ – 12″ – 18″ |
Overall Length: |
bbl.7½ 13.11″ |
Weight: |
bbl.7½ 2.50 lbs |
Barrel: |
Forged steel |
Frame: |
Forged steel and color case |
Twist: |
Left |
Cylinder: |
Fluted |
Triggerguard: |
Steel or Brass |
Grip: |
One piece walnut |
Magazine tube capacity: |
6 |
Barrel Shape: |
Round Tapered |
Sight: |
Fixed or Adjustable |

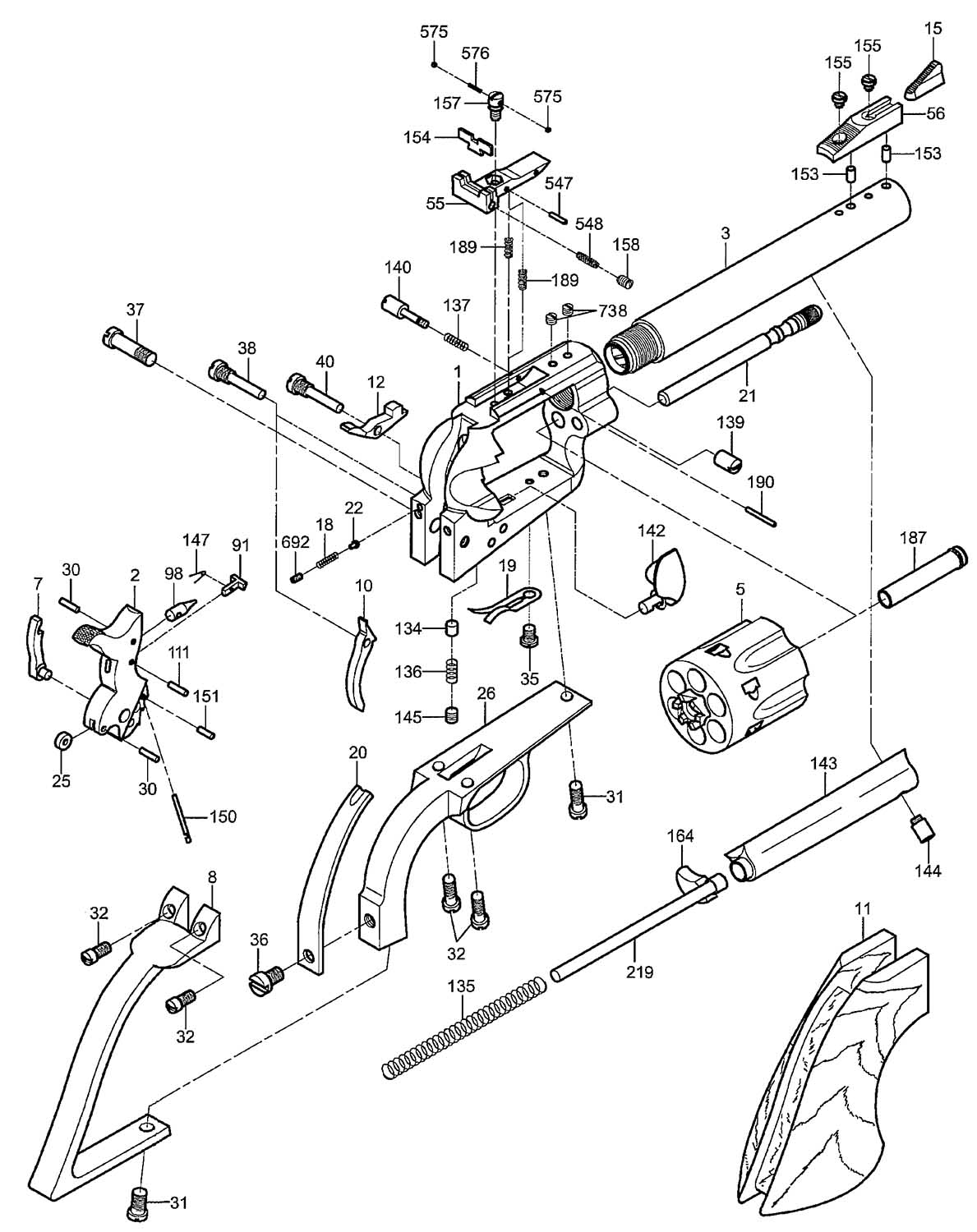

Item |
Model |
Barrel |
Length cal. |
0516 |
CATTLEMAN BUNTLINE REV. TARGET 18″ .45LC STEEL CAT.1503 |
18” |
45LC |
N. |
Code No. |
Q.ty |
Description |
1 |
A0500001 |
1 |
CATTLEMAN TARGET FRAME ASSEMBLY |
2 |
A0400002 |
1 |
SAA HAMMER WITH SAFETY ASSEMBLY |
3 |
0516003 |
1 |
BARREL .45COLT |
5 |
0410005 |
1 |
CYLINDER .45LC |
7 |
0400007 |
1 |
HAND |
8 |
0005008 |
1 |
STEEL BACKSTRAP |
10 |
0400010 |
1 |
TRIGGER |
11 |
0005011 |
1 |
GRIPS |
12 |
0400012 |
1 |
BOLT |
15 |
0101015 |
1 |
SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0005026 |
1 |
STEEL TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
55 |
0310055 |
1 |
REAR |
56 |
0500056 |
1 |
FRONT SIGHT RAMP |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0400143 |
1 |
EJECTOR TUBE |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
153 |
|
1 |
|
154 |
0310154 |
1 |
REAR SIGHT BLADE |
155 |
0310155 |
2 |
FRONT SIGHT RAMP RET.SCREW |
157 |
0310157 |
1 |
REAR SIGHT ELEV. SCREW |
158 |
0310158 |
1 |
REAR SIGHT SCREW |
187 |
0400187 |
1 |
BASE PIN BUSHING |
189 |
0310189 |
2 |
REAR SIGHT SPRING |
190 |
0500190 |
1 |
REAR SIGHT RET.SCREW |
219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
547 |
0310547 |
1 |
REAR SIGHT ELEV.SCREW PIN |
575 |
0310575 |
2 |
REAR SIGHT SCREW SPHERE |
576 |
0310576 |
1 |
REAR SIGHT DETENT BALL SPRING |
692 |
0400692 |
1 |
HAND PIN SCREW |

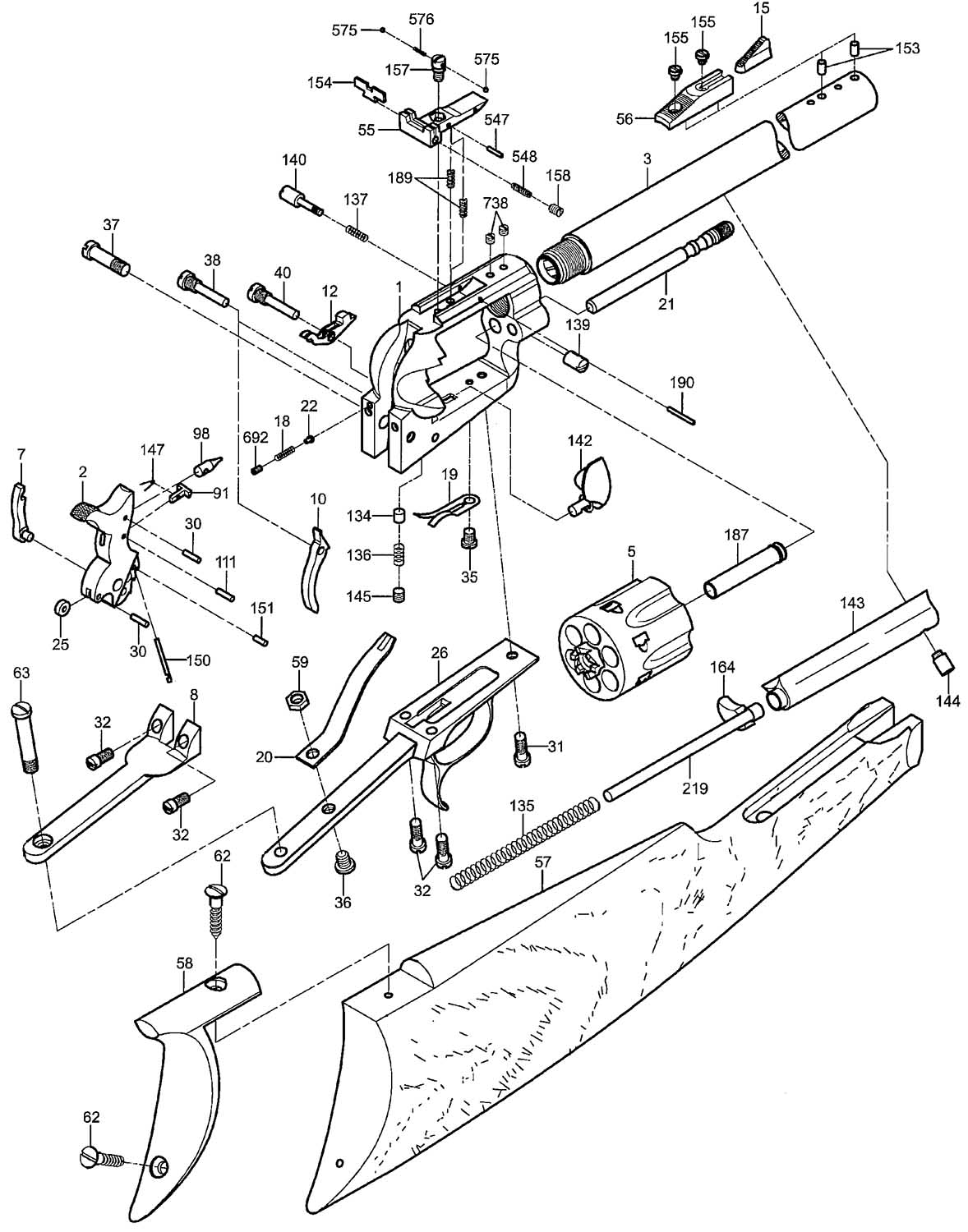

0519 |
S.A. REV.CARB.TARGET 18″ .45LC CAT.1595 |
18” |
45LC |
N. |
Code No. |
Q.ty |
Description |
1 |
A0500001 |
1 |
CATTLEMAN TARGET FRAME ASSEMBLY |
2 |
A0400002 |
1 |
SAA HAMMER WITH SAFETY ASSEMBLY |
3 |
0516003 |
1 |
BARREL .45COLT |
5 |
0410005 |
1 |
CYLINDER .45LC |
7 |
0400007 |
1 |
HAND |
8 |
0409008 |
1 |
BACKSTRAP |
10 |
0400010 |
1 |
TRIGGER |
12 |
0400012 |
1 |
BOLT |
15 |
0101015 |
1 |
SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0409020 |
1 |
MAIN SPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0409026 |
1 |
TRIGGERGUARD |
31 |
0000031 |
1 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0409036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
56 |
0500056 |
1 |
FRONT SIGHT RAMP |
57 |
0409057 |
1 |
STOCK |
58 |
0120058 |
1 |
BUTT PLATE |
59 |
0120059 |
1 |
MAIN SPRING LOOP SCREW |
62 |
0200062 |
2 |
BUTT PLATE SCREW |
63 |
0409063 |
1 |
TANG SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0400143 |
1 |
EJECTOR TUBE |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
153 |
|
1 |
|
154 |
0500154 |
1 |
REAR SIGHT BLADE |
155 |
0310155 |
2 |
FRONT SIGHT RAMP RET.SCREW |
157 |
0500157 |
1 |
REAR SIGHT ELEVATION SCREW |
158 |
0500158 |
2 |
REAR SIGHT SCREW |
159 |
0500159 |
1 |
REAR SIGHT |
187 |
0400187 |
1 |
BASE PIN BUSHING |
189 |
0500189 |
1 |
REAR SIGHT SPRING |
190 |
0500190 |
2 |
REAR SIGHT RET.SCREW |
219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
547 |
0500547 |
1 |
REAR SIGHT ELEV.SCREW PIN |
692 |
0400692 |
1 |
HAND PIN SCREW |
0540 |
CATTLEMAN REV.TARGET 4.3/4″ .357MAG BRASS CAT.2604 |
4.3/4” |
357MAG. |
N. |
Code No. |
Q.ty |
Description |
1 |
A0500001 |
1 |
CATTLEMAN TARGET FRAME ASSEMBLY |
2 |
A0400002 |
1 |
SAA HAMMER WITH SAFETY ASSEMBLY |
3 |
0500003 |
1 |
BARREL 4.3/4″ .357MAG/38SP. |
5 |
0400005 |
1 |
CYLINDER .357MAG |
7 |
0400007 |
1 |
HAND |
8 |
0000008 |
1 |
CIVIL BRASS BACKSTRAP |
10 |
0400010 |
1 |
TRIGGER |
11 |
0000011 |
1 |
GRIP |
12 |
0400012 |
1 |
BOLT |
15 |
0101015 |
1 |
SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0000026 |
1 |
CIVIL BRASS TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
56 |
0500056 |
1 |
FRONT SIGHT RAMP |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0400143 |
1 |
EJECTOR TUBE |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
153 |
|
1 |
|
154 |
0500154 |
1 |
REAR SIGHT BLADE |
155 |
0310155 |
2 |
FRONT SIGHT RAMP RET.SCREW |
157 |
0500157 |
1 |
REAR SIGHT ELEVATION SCREW |
158 |
0500158 |
2 |
REAR SIGHT SCREW |
159 |
0500159 |
1 |
REAR SIGHT |
187 |
0400187 |
1 |
BASE PIN BUSHING |
189 |
0500189 |
1 |
REAR SIGHT SPRING |
190 |
0500190 |
2 |
REAR SIGHT RET.SCREW |
219 |
A0400219 |
1 |
SAA EJECTOR N.M.4.3/4″.357MG ASS. |
547 |
0500547 |
1 |
REAR SIGHT ELEV.SCREW PIN |
692 |
0400692 |
1 |
HAND PIN SCREW |
0541 |
CATTLEMAN REV.TARGET 5.1/2″ .357MAG BRASS CAT.1534 |
5.1/2” |
357MAG. |
N. |
Code No. |
Q.ty |
Description |
1 |
A0500001 |
1 |
CATTLEMAN TARGET FRAME ASSEMBLY |
2 |
A0400002 |
1 |
SAA HAMMER WITH SAFETY ASSEMBLY |
3 |
0501003 |
1 |
BARREL 4.3/4″ .357MAG/38SP. |
5 |
0400005 |
1 |
CYLINDER .357MAG |
7 |
0400007 |
1 |
HAND |
8 |
0000008 |
1 |
CIVIL BRASS BACKSTRAP |
10 |
0400010 |
1 |
TRIGGER |
11 |
0000011 |
1 |
GRIP |
12 |
0400012 |
1 |
BOLT |
15 |
0101015 |
1 |
SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0000026 |
1 |
CIVIL BRASS TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
56 |
0500056 |
1 |
FRONT SIGHT RAMP |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0400143 |
1 |
EJECTOR TUBE |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
153 |
|
1 |
|
154 |
0500154 |
1 |
REAR SIGHT BLADE |
155 |
0310155 |
2 |
FRONT SIGHT RAMP RET.SCREW |
157 |
0500157 |
1 |
REAR SIGHT ELEVATION SCREW |
158 |
0500158 |
2 |
REAR SIGHT SCREW |
159 |
0500159 |
1 |
REAR SIGHT |
187 |
0400187 |
1 |
BASE PIN BUSHING |
189 |
0500189 |
1 |
REAR SIGHT SPRING |
190 |
0500190 |
2 |
REAR SIGHT RET.SCREW |
219 |
A0400219 |
1 |
SAA EJECTOR N.M.4.3/4″.357MG ASS. |
547 |
0500547 |
1 |
REAR SIGHT ELEV.SCREW PIN |
692 |
0400692 |
1 |
HAND PIN SCREW |
0545 |
CATTLEMAN REV.TARGET 7.1/2″ .357MAG BRASS CAT.1535 |
7.1/2” |
357MAG. |
N. |
Code No. |
Q.ty |
Description |
1 |
A0500001 |
1 |
CATTLEMAN TARGET FRAME ASSEMBLY |
2 |
A0400002 |
1 |
SAA HAMMER WITH SAFETY ASSEMBLY |
3 |
|
1 |
|
5 |
0400005 |
1 |
CYLINDER .357MAG |
7 |
0400007 |
1 |
HAND |
8 |
0000008 |
1 |
CIVIL BRASS BACKSTRAP |
10 |
0400010 |
1 |
TRIGGER |
11 |
0000011 |
1 |
GRIP |
12 |
0400012 |
1 |
BOLT |
15 |
0101015 |
1 |
SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0000026 |
1 |
CIVIL BRASS TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
56 |
0500056 |
1 |
FRONT SIGHT RAMP |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0400143 |
1 |
EJECTOR TUBE |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
153 |
|
1 |
|
154 |
0500154 |
1 |
REAR SIGHT BLADE |
155 |
0310155 |
2 |
FRONT SIGHT RAMP RET.SCREW |
157 |
0500157 |
1 |
REAR SIGHT ELEVATION SCREW |
158 |
0500158 |
2 |
REAR SIGHT SCREW |
159 |
0500159 |
1 |
REAR SIGHT |
187 |
0400187 |
1 |
BASE PIN BUSHING |
189 |
0500189 |
1 |
REAR SIGHT SPRING |
190 |
0500190 |
2 |
REAR SIGHT RET.SCREW |
219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
547 |
0500547 |
1 |
REAR SIGHT ELEV.SCREW PIN |
692 |
0400692 |
1 |
HAND PIN SCREW |
0546 |
CATTLEMAN BUNTLINE REV.TARGET 18″ .357MAG BRASS CAT.1505 |
18” |
357MAG. |
N. |
Code No. |
Q.ty |
Description |
1 |
A0500001 |
1 |
CATTLEMAN TARGET FRAME ASSEMBLY |
2 |
A0400002 |
1 |
SAA HAMMER WITH SAFETY ASSEMBLY |
3 |
0506003 |
1 |
BARREL 18″ TARGET .357MAG |
5 |
0400005 |
1 |
CYLINDER .357MAG |
7 |
0400007 |
1 |
HAND |
8 |
0048008 |
1 |
BRASS CIVIL BACKSTRAP |
10 |
0400010 |
1 |
TRIGGER |
11 |
0040011 |
1 |
GRIP |
12 |
0400012 |
1 |
BOLT |
15 |
0101015 |
1 |
SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0040026 |
1 |
TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
56 |
0500056 |
1 |
FRONT SIGHT RAMP |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0400143 |
1 |
EJECTOR TUBE |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
153 |
|
1 |
|
154 |
0500154 |
1 |
REAR SIGHT BLADE |
155 |
0310155 |
2 |
FRONT SIGHT RAMP RET.SCREW |
157 |
0500157 |
1 |
REAR SIGHT ELEVATION SCREW |
158 |
0500158 |
2 |
REAR SIGHT SCREW |
159 |
0500159 |
1 |
REAR SIGHT |
187 |
0400187 |
1 |
BASE PIN BUSHING |
189 |
0500189 |
1 |
REAR SIGHT SPRING |
190 |
0500190 |
2 |
REAR SIGHT RET.SCREW |
219 |
A0400219 |
1 |
SAA EJECTOR N.M.4.3/4″.357MG ASS. |
455 |
0040455 |
1 |
CONNECT.SCREW |
547 |
0500547 |
1 |
REAR SIGHT ELEV.SCREW PIN |
692 |
0400692 |
1 |
HAND PIN SCREW |
0550 |
CATTLEMAN REV.TARGET 4.3/4″ .45LC BRASS CAT.1854 |
4.3/4” |
45LC |
N. |
Code No. |
Q.ty |
Description |
1 |
A0500001 |
1 |
CATTLEMAN TARGET FRAME ASSEMBLY |
2 |
A0400002 |
1 |
SAA HAMMER WITH SAFETY ASSEMBLY |
3 |
0510003 |
1 |
BARREL 4.3/4″ .357MAG/38SP. |
5 |
0410005 |
1 |
CYLINDER .45LC |
7 |
0400007 |
1 |
HAND |
8 |
0000008 |
1 |
CIVIL BRASS BACKSTRAP |
10 |
0400010 |
1 |
TRIGGER |
11 |
0000011 |
1 |
GRIP |
12 |
0400012 |
1 |
BOLT |
15 |
0101015 |
1 |
SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0000026 |
1 |
CIVIL BRASS TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
55 |
0310055 |
1 |
REAR |
56 |
0500056 |
1 |
FRONT SIGHT RAMP |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0400143 |
1 |
EJECTOR TUBE |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
153 |
|
1 |
|
154 |
0310154 |
1 |
REAR SIGHT BLADE |
155 |
0310155 |
2 |
FRONT SIGHT RAMP RET.SCREW |
157 |
0310157 |
1 |
REAR SIGHT ELEV. SCREW |
158 |
0310158 |
1 |
REAR SIGHT SCREW |
187 |
0400187 |
1 |
BASE PIN BUSHING |
189 |
0310189 |
2 |
REAR SIGHT SPRING |
190 |
0500190 |
1 |
REAR SIGHT RET.SCREW |
219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
547 |
0310547 |
1 |
REAR SIGHT ELEV.SCREW PIN |
575 |
0310575 |
2 |
REAR SIGHT SCREW SPHERE |
576 |
0310576 |
1 |
REAR SIGHT DETENT BALL SPRING |
692 |
0400692 |
1 |
HAND PIN SCREW |
0551 |
CATTLEMAN REV.TARGET 5.1/2″ .45LC BRASS CAT.1532 |
5.1/2” |
45LC |
N. |
Code No. |
Q.ty |
Description |
1 |
A0500001 |
1 |
CATTLEMAN TARGET FRAME ASSEMBLY |
2 |
A0400002 |
1 |
SAA HAMMER WITH SAFETY ASSEMBLY |
3 |
0511003 |
1 |
BARREL 4.3/4″ .357MAG/38SP. |
5 |
0410005 |
1 |
CYLINDER .45LC |
7 |
0400007 |
1 |
HAND |
8 |
0000008 |
1 |
CIVIL BRASS BACKSTRAP |
10 |
0400010 |
1 |
TRIGGER |
11 |
0000011 |
1 |
GRIP |
12 |
0400012 |
1 |
BOLT |
15 |
0101015 |
1 |
SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0000026 |
1 |
CIVIL BRASS TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
55 |
0310055 |
1 |
REAR |
56 |
0500056 |
1 |
FRONT SIGHT RAMP |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0400143 |
1 |
EJECTOR TUBE |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
153 |
|
1 |
|
154 |
0310154 |
1 |
REAR SIGHT BLADE |
155 |
0310155 |
2 |
FRONT SIGHT RAMP RET.SCREW |
157 |
0310157 |
1 |
REAR SIGHT ELEV. SCREW |
158 |
0310158 |
1 |
REAR SIGHT SCREW |
187 |
0400187 |
1 |
BASE PIN BUSHING |
189 |
0310189 |
2 |
REAR SIGHT SPRING |
190 |
0500190 |
1 |
REAR SIGHT RET.SCREW |
219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
547 |
0310547 |
1 |
REAR SIGHT ELEV.SCREW PIN |
575 |
0310575 |
2 |
REAR SIGHT SCREW SPHERE |
576 |
0310576 |
1 |
REAR SIGHT DETENT BALL SPRING |
692 |
0400692 |
1 |
HAND PIN SCREW |
0555 |
CATTLEMAN REV.TARGET 7.1/2″ .45LC BRASS CAT.1533 |
7.1/2” |
45LC |
N. |
Code No. |
Q.ty |
Description |
1 |
A0500001 |
1 |
CATTLEMAN TARGET FRAME ASSEMBLY |
2 |
A0400002 |
1 |
SAA HAMMER WITH SAFETY ASSEMBLY |
3 |
|
1 |
|
5 |
0410005 |
1 |
CYLINDER .45LC |
7 |
0400007 |
1 |
HAND |
8 |
0000008 |
1 |
CIVIL BRASS BACKSTRAP |
10 |
0400010 |
1 |
TRIGGER |
11 |
0000011 |
1 |
GRIP |
12 |
0400012 |
1 |
BOLT |
15 |
0101015 |
1 |
SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0000026 |
1 |
CIVIL BRASS TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
55 |
0310055 |
1 |
REAR |
56 |
0500056 |
1 |
FRONT SIGHT RAMP |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0400143 |
1 |
EJECTOR TUBE |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
153 |
|
1 |
|
154 |
0310154 |
1 |
REAR SIGHT BLADE |
155 |
0310155 |
2 |
FRONT SIGHT RAMP RET.SCREW |
157 |
0310157 |
1 |
REAR SIGHT ELEV. SCREW |
158 |
0310158 |
1 |
REAR SIGHT SCREW |
187 |
0400187 |
1 |
BASE PIN BUSHING |
189 |
0310189 |
2 |
REAR SIGHT SPRING |
190 |
0500190 |
1 |
REAR SIGHT RET.SCREW |
219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
547 |
0310547 |
1 |
REAR SIGHT ELEV.SCREW PIN |
575 |
0310575 |
2 |
REAR SIGHT SCREW SPHERE |
576 |
0310576 |
1 |
REAR SIGHT DETENT BALL SPRING |
692 |
0400692 |
1 |
HAND PIN SCREW |
0556 |
CATTLEMAN BUNTLINE REV.TARGET .45LC BRASS CAT.1503 |
18” |
45LC |
N. |
Code No. |
Q.ty |
Description |
1 |
A0500001 |
1 |
CATTLEMAN TARGET FRAME ASSEMBLY |
2 |
A0400002 |
1 |
SAA HAMMER WITH SAFETY ASSEMBLY |
3 |
0516003 |
1 |
BARREL .45COLT |
5 |
0410005 |
1 |
CYLINDER .45LC |
7 |
0400007 |
1 |
HAND |
8 |
0048008 |
1 |
BRASS CIVIL BACKSTRAP |
10 |
0400010 |
1 |
TRIGGER |
11 |
0040011 |
1 |
GRIP |
12 |
0400012 |
1 |
BOLT |
15 |
0101015 |
1 |
SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0040026 |
1 |
TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
56 |
0500056 |
1 |
FRONT SIGHT RAMP |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0400143 |
1 |
EJECTOR TUBE |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
153 |
|
1 |
|
154 |
0500154 |
1 |
REAR SIGHT BLADE |
155 |
0310155 |
2 |
FRONT SIGHT RAMP RET.SCREW |
157 |
0500157 |
1 |
REAR SIGHT ELEVATION SCREW |
158 |
0500158 |
2 |
REAR SIGHT SCREW |
159 |
0500159 |
1 |
REAR SIGHT |
187 |
0400187 |
1 |
BASE PIN BUSHING |
189 |
0500189 |
1 |
REAR SIGHT SPRING |
190 |
0500190 |
2 |
REAR SIGHT RET.SCREW |
219 |
A0400219 |
1 |
SAA EJECTOR N.M.4.3/4″.357MG ASS. |
455 |
0040455 |
1 |
CONNECT.SCREW |
547 |
0500547 |
1 |
REAR SIGHT ELEV.SCREW PIN |
692 |
0400692 |
1 |
HAND PIN SCREW |
0572 |
CATTLEMAN REV. QD. 3.1/2″ .45LC BRASS CAT.8276 |
3.1/2” |
45LC |
N. |
Code No. |
Q.ty |
Description |
1 |
A4100001 |
1 |
CATTLEMAN FRAME ASSEMBLY |
2 |
A0400002 |
1 |
SAA HAMMER WITH SAFETY ASSEMBLY |
3 |
0346003 |
1 |
SA BARREL 3.1/2″ .45 |
5 |
0410005 |
1 |
CYLINDER .45LC |
7 |
0400007 |
1 |
HAND |
8 |
0000008 |
1 |
CIVIL BRASS BACKSTRAP |
10 |
0400010 |
1 |
TRIGGER |
11 |
0000011 |
1 |
GRIP |
12 |
0400012 |
1 |
BOLT |
15 |
0940015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0000026 |
1 |
CIVIL BRASS TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
135 |
0338135 |
1 |
EJECTOR SPRING 3.1/2″ |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0338143 |
1 |
EJECTOR ROD TUBE 3.1/2″ |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
187 |
0400187 |
1 |
BASE PIN BUSHING |
219 |
A0338219 |
1 |
SAA EJECTOR N.M. 3.1/2″ .45LC ASSEMBLY |
692 |
0400692 |
1 |
HAND PIN SCREW |
0573 |
CATTLEMAN REV. QD. 3.1/2″ .44/40 BRASS CAT.8271 |
3.1/2” |
44-40 |
N. |
Code No. |
Q.ty |
Description |
1 |
A4100001 |
1 |
CATTLEMAN FRAME ASSEMBLY |
2 |
A0400002 |
1 |
SAA HAMMER WITH SAFETY ASSEMBLY |
3 |
0344003 |
1 |
SA BARREL 3.1/2″ .44/40 |
5 |
0420005 |
1 |
CYLINDER .44/40 |
7 |
0400007 |
1 |
HAND |
8 |
0000008 |
1 |
CIVIL BRASS BACKSTRAP |
10 |
0400010 |
1 |
TRIGGER |
11 |
0000011 |
1 |
GRIP |
12 |
0400012 |
1 |
BOLT |
15 |
0940015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0000026 |
1 |
CIVIL BRASS TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
135 |
0338135 |
1 |
EJECTOR SPRING 3.1/2″ |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0338143 |
1 |
EJECTOR ROD TUBE 3.1/2″ |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
187 |
0400187 |
1 |
BASE PIN BUSHING |
219 |
A0338219 |
1 |
SAA EJECTOR N.M. 3.1/2″ .45LC ASSEMBLY |
692 |
0400692 |
1 |
HAND PIN SCREW |

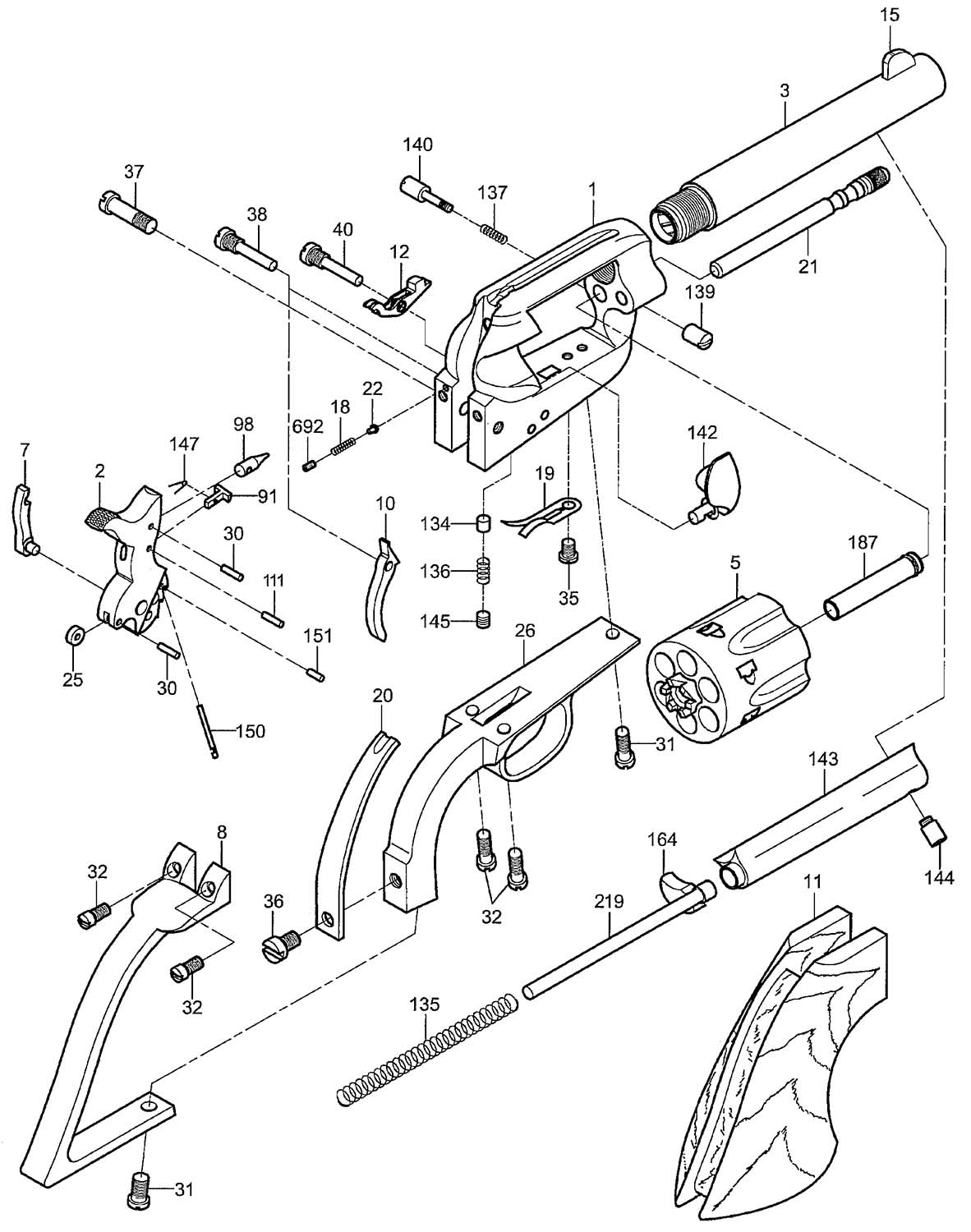

0574 |
CATTLEMAN REV. QD. 3.1/2″ .357MAG BRASS CAT.8273 |
3.1/2” |
357MAG. |
N. |
Code No. |
Q.ty |
Description |
1 |
A4100001 |
1 |
CATTLEMAN FRAME ASSEMBLY |
2 |
A0400002 |
1 |
SAA HAMMER WITH SAFETY ASSEMBLY |
3 |
0340003 |
1 |
SA BARREL 3.1/2″ .357MAG |
5 |
0400005 |
1 |
CYLINDER .357MAG |
7 |
0400007 |
1 |
HAND |
8 |
0000008 |
1 |
CIVIL BRASS BACKSTRAP |
10 |
0400010 |
1 |
TRIGGER |
11 |
0000011 |
1 |
GRIP |
12 |
0400012 |
1 |
BOLT |
15 |
0946015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0000026 |
1 |
CIVIL BRASS TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
135 |
0338135 |
1 |
EJECTOR SPRING 3.1/2″ |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0338143 |
1 |
EJECTOR ROD TUBE 3.1/2″ |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
187 |
0400187 |
1 |
BASE PIN BUSHING |
219 |
A0340219 |
1 |
SAA EJECTOR N.M. 3.1/2″ .357MAG ASSEMBLY |
692 |
0400692 |
1 |
HAND PIN SCREW |
0669 |
CATTLEMAN REV. QD.3.1/2″ .32/20 STEEL CAT.10491 |
3.1/2” |
32-20 |
N. |
Code No. |
Q.ty |
Description |
1 |
A4100001 |
1 |
CATTLEMAN FRAME ASSEMBLY |
2 |
A0400002 |
1 |
SAA HAMMER WITH SAFETY ASSEMBLY |
3 |
0665003 |
1 |
SA BARREL 3.1/2″ .32-20 |
5 |
0665005 |
1 |
CYLINDER .32-20 |
7 |
0400007 |
1 |
HAND |
8 |
0005008 |
1 |
STEEL BACKSTRAP |
10 |
0400010 |
1 |
TRIGGER |
11 |
0005011 |
1 |
GRIPS |
12 |
0400012 |
1 |
BOLT |
15 |
0940015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0005026 |
1 |
STEEL TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
135 |
0338135 |
1 |
EJECTOR SPRING 3.1/2″ |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0338143 |
1 |
EJECTOR ROD TUBE 3.1/2″ |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
187 |
0400187 |
1 |
BASE PIN BUSHING |
219 |
A0340219 |
1 |
SAA EJECTOR N.M. 3.1/2″ .357MAG ASSEMBLY |
692 |
0400692 |
1 |
HAND PIN SCREW |
0674 |
CATTLEMAN REV.Q.D. 4.3/4″ .32/20 STEEL CAT.10492 |
4.3/4” |
32-20 |
N. |
Code No. |
Q.ty |
Description |
1 |
A4100001 |
1 |
CATTLEMAN FRAME ASSEMBLY |
2 |
A0400002 |
1 |
SAA HAMMER WITH SAFETY ASSEMBLY |
3 |
0666003 |
1 |
BARREL 4.3/4″ .32-20 |
5 |
0665005 |
1 |
CYLINDER .32-20 |
7 |
0400007 |
1 |
HAND |
8 |
0005008 |
1 |
STEEL BACKSTRAP |
10 |
0400010 |
1 |
TRIGGER |
11 |
0005011 |
1 |
GRIPS |
12 |
0400012 |
1 |
BOLT |
15 |
0940015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0005026 |
1 |
STEEL TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0400143 |
1 |
EJECTOR TUBE |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
187 |
0400187 |
1 |
BASE PIN BUSHING |
219 |
A0400219 |
1 |
SAA EJECTOR N.M.4.3/4″.357MG ASS. |
692 |
0400692 |
1 |
HAND PIN SCREW |
0675 |
CATTLEMAN REV. QD.5.1/2″ .32/20 STEEL CAT.10493 |
5.1/2” |
32-20 |
N. |

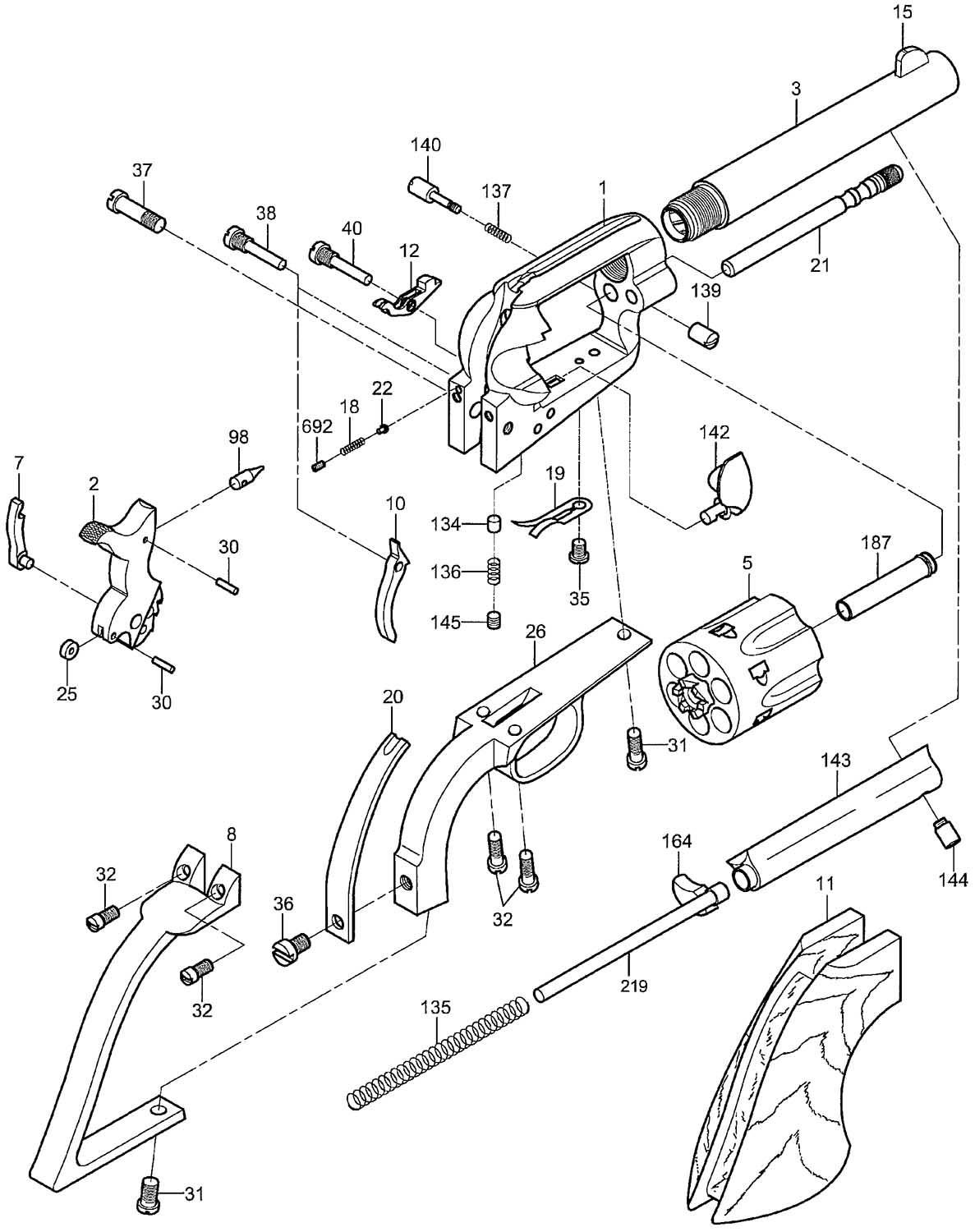

Code No. |
Q.ty |
Description |
1 |
A4100001 |
1 |
CATTLEMAN FRAME ASSEMBLY |
2 |
A0400002 |
1 |
SAA HAMMER WITH SAFETY ASSEMBLY |
3 |
0667003 |
1 |
BARREL 5.1/2″ .32-20 |
5 |
0665005 |
1 |
CYLINDER .32-20 |
7 |
0400007 |
1 |
HAND |
8 |
0005008 |
1 |
STEEL BACKSTRAP |
10 |
0400010 |
1 |
TRIGGER |
11 |
0005011 |
1 |
GRIPS |
12 |
0400012 |
1 |
BOLT |
15 |
0940015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0005026 |
1 |
STEEL TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0400143 |
1 |
EJECTOR TUBE |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
187 |
0400187 |
1 |
BASE PIN BUSHING |
219 |
A0400219 |
1 |
SAA EJECTOR N.M.4.3/4″.357MG ASS. |
692 |
0400692 |
1 |
HAND PIN SCREW |
0676 |
CATTLEMAN REV. QD. 7.1/2″ .32/20 STEEL CAT.10494 |
7.1/2” |
32-20 |
N. |
Code No. |
Q.ty |
Description |
1 |
A4100001 |
1 |
CATTLEMAN FRAME ASSEMBLY |
2 |
A0400002 |
1 |
SAA HAMMER WITH SAFETY ASSEMBLY |
3 |
0668003 |
1 |
BARREL 7.1/2″ .32-20 |
5 |
0665005 |
1 |
CYLINDER .32-20 |
7 |
0400007 |
1 |
HAND |
8 |
0005008 |
1 |
STEEL BACKSTRAP |
10 |
0400010 |
1 |
TRIGGER |
11 |
0005011 |
1 |
GRIPS |
12 |
0400012 |
1 |
BOLT |
15 |
0940015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0005026 |
1 |
STEEL TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0400143 |
1 |
EJECTOR TUBE |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
187 |
0400187 |
1 |
BASE PIN BUSHING |
219 |
A0400219 |
1 |
SAA EJECTOR N.M.4.3/4″.357MG ASS. |
692 |
0400692 |
1 |
HAND PIN SCREW |
0680 |
CATTLEMAN REV.QD. 4.3/4″ .44S&W SP. STEEL CAT.5539 |
4.3/4” |
44SPEC. |
N. |
Code No. |
Q.ty |
Description |
1 |
A4100001 |
1 |
CATTLEMAN FRAME ASSEMBLY |
2 |
A0400002 |
1 |
SAA HAMMER WITH SAFETY ASSEMBLY |
3 |
0420003 |
1 |
BARREL 4.3/4″ .44/40 |
5 |
0680005 |
1 |
CYLINDER .44S&WSP |
7 |
0400007 |
1 |
HAND |
8 |
0005008 |
1 |
STEEL BACKSTRAP |
10 |
0400010 |
1 |
TRIGGER |
11 |
0005011 |
1 |
GRIPS |
12 |
0400012 |
1 |
BOLT |
15 |
0940015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0005026 |
1 |
STEEL TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0400143 |
1 |
EJECTOR TUBE |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
187 |
0400187 |
1 |
BASE PIN BUSHING |
219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
692 |
0400692 |
1 |
HAND PIN SCREW |
0681 |
CATTLEMAN REV.QD.5.1/2″ .44S&W SP. STEEL CAT.5540 |
5.1/2” |
44SPEC. |
N. |
Code No. |
Q.ty |
Description |
1 |
A4100001 |
1 |
CATTLEMAN FRAME ASSEMBLY |
2 |
A0400002 |
1 |
SAA HAMMER WITH SAFETY ASSEMBLY |
3 |
0421003 |
1 |
BARREL 5.1/2″ .44/40 |
5 |
0680005 |
1 |
CYLINDER .44S&WSP |
7 |
0400007 |
1 |
HAND |
8 |
0005008 |
1 |
STEEL BACKSTRAP |
10 |
0400010 |
1 |
TRIGGER |
11 |
0005011 |
1 |
GRIPS |
12 |
0400012 |
1 |
BOLT |
15 |
0940015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0005026 |
1 |
STEEL TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0400143 |
1 |
EJECTOR TUBE |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
187 |
0400187 |
1 |
BASE PIN BUSHING |
219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
692 |
0400692 |
1 |
HAND PIN SCREW |
0682 |
CATTLEMAN REV.QD.7.1/2″ .44S&W SP. STEEL CAT.5541 |
7.1/2” |
44SPEC. |
N. |
Code No. |
Q.ty |
Description |
1 |
A4100001 |
1 |
CATTLEMAN FRAME ASSEMBLY |
2 |
A0400002 |
1 |
SAA HAMMER WITH SAFETY ASSEMBLY |
3 |
0425003 |
1 |
BARREL 7.1/2″ .44/40 |
5 |
0680005 |
1 |
CYLINDER .44S&WSP |
7 |
0400007 |
1 |
HAND |
8 |
0005008 |
1 |
STEEL BACKSTRAP |
10 |
0400010 |
1 |
TRIGGER |
11 |
0005011 |
1 |
GRIPS |
12 |
0400012 |
1 |
BOLT |
15 |
0940015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0005026 |
1 |
STEEL TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0400143 |
1 |
EJECTOR TUBE |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
187 |
0400187 |
1 |
BASE PIN BUSHING |
219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
692 |
0400692 |
1 |
HAND PIN SCREW |
0685 |
CATTLEMAN REV. QD.4.3/4″ .38/40 STEEL CAT.5537 |
4.3/4” |
38-40 |
N. |
Code No. |
Q.ty |
Description |
1 |
A4100001 |
1 |
CATTLEMAN FRAME ASSEMBLY |
2 |
A0400002 |
1 |
SAA HAMMER WITH SAFETY ASSEMBLY |
3 |
0685003 |
1 |
BARREL 4.3/4″ .38/40 |
5 |
0685005 |
1 |
CYLINDER .38/40 |
7 |
0400007 |
1 |
HAND |
8 |
0005008 |
1 |
STEEL BACKSTRAP |
10 |
0400010 |
1 |
TRIGGER |
11 |
0005011 |
1 |
GRIPS |
12 |
0400012 |
1 |
BOLT |
15 |
0940015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0005026 |
1 |
STEEL TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0400143 |
1 |
EJECTOR TUBE |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
187 |
0400187 |
1 |
BASE PIN BUSHING |
219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
692 |
0400692 |
1 |
HAND PIN SCREW |
0686 |
CATTLEMAN REV. QD.5.1/2″ .38/40 STEEL CAT.5542 |
5.1/2” |
38-40 |
N. |
Code No. |
Q.ty |
Description |
1 |
A4100001 |
1 |
CATTLEMAN FRAME ASSEMBLY |
2 |
A0400002 |
1 |
SAA HAMMER WITH SAFETY ASSEMBLY |
3 |
0686003 |
1 |
BARREL 5.1/2″ .38/40 |
5 |
0685005 |
1 |
CYLINDER .38/40 |
7 |
0400007 |
1 |
HAND |
8 |
0005008 |
1 |
STEEL BACKSTRAP |
10 |
0400010 |
1 |
TRIGGER |
11 |
0005011 |
1 |
GRIPS |
12 |
0400012 |
1 |
BOLT |
15 |
0940015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0005026 |
1 |
STEEL TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0400143 |
1 |
EJECTOR TUBE |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
187 |
0400187 |
1 |
BASE PIN BUSHING |
219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
692 |
0400692 |
1 |
HAND PIN SCREW |
0687 |
CATTLEMAN REV. QD.7.1/2″ .38/40 STEEL CAT.5538 |
7.1/2” |
38-40 |
N. |
Code No. |
Q.ty |
Description |
1 |
A4100001 |
1 |
CATTLEMAN FRAME ASSEMBLY |
2 |
A0400002 |
1 |
SAA HAMMER WITH SAFETY ASSEMBLY |
3 |
0687003 |
1 |
BARREL 7.1/2″ .38/40 |
5 |
0685005 |
1 |
CYLINDER .38/40 |
7 |
0400007 |
1 |
HAND |
8 |
0005008 |
1 |
STEEL BACKSTRAP |
10 |
0400010 |
1 |
TRIGGER |
11 |
0005011 |
1 |
GRIPS |
12 |
0400012 |
1 |
BOLT |
15 |
0940015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0005026 |
1 |
STEEL TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0400143 |
1 |
EJECTOR TUBE |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
187 |
0400187 |
1 |
BASE PIN BUSHING |
219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
692 |
0400692 |
1 |
HAND PIN SCREW |
0690 |
CATTLEMAN REV.QD.4.3/4″ .44S&W SP. BRASS CAT.5539 |
4.3/4” |
44SPEC. |
N. |
Code No. |
Q.ty |
Description |
1 |
A4100001 |
1 |
CATTLEMAN FRAME ASSEMBLY |
2 |
A0400002 |
1 |
SAA HAMMER WITH SAFETY ASSEMBLY |
3 |
0420003 |
1 |
BARREL 4.3/4″ .44/40 |
5 |
0680005 |
1 |
CYLINDER .44S&WSP |
7 |
0400007 |
1 |
HAND |
8 |
0000008 |
1 |
CIVIL BRASS BACKSTRAP |
10 |
0400010 |
1 |
TRIGGER |
11 |
0000011 |
1 |
GRIP |
12 |
0400012 |
1 |
BOLT |
15 |
0940015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0000026 |
1 |
CIVIL BRASS TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0400143 |
1 |
EJECTOR TUBE |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
187 |
0400187 |
1 |
BASE PIN BUSHING |
219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
692 |
0400692 |
1 |
HAND PIN SCREW |
0691 |
CATTLEMAN REV.QD.5.1/2″ .44S&W SP. BRASS CAT.5540 |
5.1/2” |
44SPEC. |
N. |
Code No. |
Q.ty |
Description |
1 |
A4100001 |
1 |
CATTLEMAN FRAME ASSEMBLY |
2 |
A0400002 |
1 |
SAA HAMMER WITH SAFETY ASSEMBLY |
3 |
0421003 |
1 |
BARREL 5.1/2″ .44/40 |
5 |
0680005 |
1 |
CYLINDER .44S&WSP |
7 |
0400007 |
1 |
HAND |
8 |
0000008 |
1 |
CIVIL BRASS BACKSTRAP |
10 |
0400010 |
1 |
TRIGGER |
11 |
0000011 |
1 |
GRIP |
12 |
0400012 |
1 |
BOLT |
15 |
0940015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0000026 |
1 |
CIVIL BRASS TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0400143 |
1 |
EJECTOR TUBE |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
187 |
0400187 |
1 |
BASE PIN BUSHING |
219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
692 |
0400692 |
1 |
HAND PIN SCREW |
0692 |
CATTLEMAN REV.QD.7.1/2″ .44S&W SP. BRASS CAT.5541 |
7.1/2” |
44SPEC. |
N. |
Code No. |
Q.ty |
Description |
1 |
A4100001 |
1 |
CATTLEMAN FRAME ASSEMBLY |
2 |
A0400002 |
1 |
SAA HAMMER WITH SAFETY ASSEMBLY |
3 |
0425003 |
1 |
BARREL 7.1/2″ .44/40 |
5 |
0680005 |
1 |
CYLINDER .44S&WSP |
7 |
0400007 |
1 |
HAND |
8 |
0000008 |
1 |
CIVIL BRASS BACKSTRAP |
10 |
0400010 |
1 |
TRIGGER |
11 |
0000011 |
1 |
GRIP |
12 |
0400012 |
1 |
BOLT |
15 |
0940015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0000026 |
1 |
CIVIL BRASS TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0400143 |
1 |
EJECTOR TUBE |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
187 |
0400187 |
1 |
BASE PIN BUSHING |
219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
692 |
0400692 |
1 |
HAND PIN SCREW |
0695 |
CATTLEMAN REV.QD. 4.3/4″ .38/40 BRASS CAT.5537 |
4.3/4” |
38-40 |
N. |
Code No. |
Q.ty |
Description |
1 |
A4100001 |
1 |
CATTLEMAN FRAME ASSEMBLY |
2 |
A0400002 |
1 |
SAA HAMMER WITH SAFETY ASSEMBLY |
3 |
0685003 |
1 |
BARREL 4.3/4″ .38/40 |
5 |
0685005 |
1 |
CYLINDER .38/40 |
7 |
0400007 |
1 |
HAND |
8 |
0000008 |
1 |
CIVIL BRASS BACKSTRAP |
10 |
0400010 |
1 |
TRIGGER |
11 |
0000011 |
1 |
GRIP |
12 |
0400012 |
1 |
BOLT |
15 |
0940015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0000026 |
1 |
CIVIL BRASS TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0400143 |
1 |
EJECTOR TUBE |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
187 |
0400187 |
1 |
BASE PIN BUSHING |
219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
692 |
0400692 |
1 |
HAND PIN SCREW |
0696 |
CATTLEMAN REV. QD.5.1/2″ .38/40 BRASS CAT.5542 |
5.1/2” |
38-40 |
N. |
Code No. |
Q.ty |
Description |
1 |
A4100001 |
1 |
CATTLEMAN FRAME ASSEMBLY |
2 |
A0400002 |
1 |
SAA HAMMER WITH SAFETY ASSEMBLY |
3 |
0686003 |
1 |
BARREL 5.1/2″ .38/40 |
5 |
0685005 |
1 |
CYLINDER .38/40 |
7 |
0400007 |
1 |
HAND |
8 |
0000008 |
1 |
CIVIL BRASS BACKSTRAP |
10 |
0400010 |
1 |
TRIGGER |
11 |
0000011 |
1 |
GRIP |
12 |
0400012 |
1 |
BOLT |
15 |
0940015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0000026 |
1 |
CIVIL BRASS TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0400143 |
1 |
EJECTOR TUBE |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
187 |
0400187 |
1 |
BASE PIN BUSHING |
219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
692 |
0400692 |
1 |
HAND PIN SCREW |
0697 |
CATTLEMAN REV. QD. 7.1/2″ .38/40 BRASS CAT.5538 |
7.1/2” |
38-40 |
N. |
Code No. |
Q.ty |
Description |
1 |
A4100001 |
1 |
CATTLEMAN FRAME ASSEMBLY |
2 |
A0400002 |
1 |
SAA HAMMER WITH SAFETY ASSEMBLY |
3 |
0687003 |
1 |
BARREL 7.1/2″ .38/40 |
5 |
0685005 |
1 |
CYLINDER .38/40 |
7 |
0400007 |
1 |
HAND |
8 |
0000008 |
1 |
CIVIL BRASS BACKSTRAP |
10 |
0400010 |
1 |
TRIGGER |
11 |
0000011 |
1 |
GRIP |
12 |
0400012 |
1 |
BOLT |
15 |
0940015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0000026 |
1 |
CIVIL BRASS TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0400143 |
1 |
EJECTOR TUBE |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
187 |
0400187 |
1 |
BASE PIN BUSHING |
219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
692 |
0400692 |
1 |
HAND PIN SCREW |
4000 |
CATTLEMAN REV.Q.D. 4.3/4″ .45LC STEEL CAT.13728 GUNFIGHTER VERSION |
4.3/4” |
45LC |
N. |
Code No. |
Q.ty |
Description |
1 |
A4100001 |
1 |
CATTLEMAN FRAME ASSEMBLY |
2 |
A0400002 |
1 |
SAA HAMMER WITH SAFETY ASSEMBLY |
3 |
0410003 |
1 |
BARREL 4.3/4″ .45LC |
5 |
0940005 |
1 |
CYLINDER .45LC |
7 |
0400007 |
1 |
HAND |
8 |
0005008 |
1 |
STEEL BACKSTRAP |
10 |
0400010 |
1 |
TRIGGER |
12 |
0400012 |
1 |
BOLT |
15 |
0940015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0005026 |
1 |
STEEL TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
43 |
0940043 |
1 |
RIGHT GRIP NUT |
44 |
0940044 |
1 |
LEFT GRIP NUT |
45 |
4000045 |
1 |
RIGHT GRIP |
46 |
4000046 |
1 |
LEFT GRIP |
54 |
0940054 |
1 |
GRIP SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0400143 |
1 |
EJECTOR TUBE |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
692 |
0400692 |
1 |
HAND PIN SCREW |
4001 |
CATTLEMAN REV.Q.D. 5.1/2″ .45LC STEEL CAT.13231 GUNFIGHTER VERSION |
5.1/2” |
45LC |
N. |
Code No. |
Q.ty |
Description |
1 |
A4100001 |
1 |
CATTLEMAN FRAME ASSEMBLY |
2 |
A0400002 |
1 |
SAA HAMMER WITH SAFETY ASSEMBLY |
3 |
0411003 |
1 |
BARREL 5.1/2″ |
5 |
0940005 |
1 |
CYLINDER .45LC |
7 |
0400007 |
1 |
HAND |
8 |
0005008 |
1 |
STEEL BACKSTRAP |
10 |
0400010 |
1 |
TRIGGER |
12 |
0400012 |
1 |
BOLT |
15 |
0940015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0005026 |
1 |
STEEL TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
43 |
0940043 |
1 |
RIGHT GRIP NUT |
44 |
0940044 |
1 |
LEFT GRIP NUT |
45 |
4000045 |
1 |
RIGHT GRIP |
46 |
4000046 |
1 |
LEFT GRIP |
54 |
0940054 |
1 |
GRIP SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0400143 |
1 |
EJECTOR TUBE |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
692 |
0400692 |
1 |
HAND PIN SCREW |
4002 |
CATTLEMAN REV.Q.D. 7.1/2″ .45LC STEEL CAT.1520 GUNFIGHTER VERSION |
7.1/2” |
45LC |
N. |
Code No. |
Q.ty |
Description |
1 |
A4100001 |
1 |
CATTLEMAN FRAME ASSEMBLY |
2 |
A0400002 |
1 |
SAA HAMMER WITH SAFETY ASSEMBLY |
3 |
0415003 |
1 |
BARREL 7.1/2″ .45LC |
5 |
0940005 |
1 |
CYLINDER .45LC |
7 |
0400007 |
1 |
HAND |
8 |
0005008 |
1 |
STEEL BACKSTRAP |
10 |
0400010 |
1 |
TRIGGER |
12 |
0400012 |
1 |
BOLT |
15 |
0940015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0005026 |
1 |
STEEL TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
43 |
0940043 |
1 |
RIGHT GRIP NUT |
44 |
0940044 |
1 |
LEFT GRIP NUT |
45 |
4000045 |
1 |
RIGHT GRIP |
46 |
4000046 |
1 |
LEFT GRIP |
54 |
0940054 |
1 |
GRIP SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0400143 |
1 |
EJECTOR TUBE |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
692 |
0400692 |
1 |
HAND PIN SCREW |
4003 |
CATTLEMAN REV.Q.D. 4.3/4″ .45LC STEEL CAT.13728 CHISHOLM VERSION |
4.3/4” |
45LC |
N. |
Code No. |
Q.ty |
Description |
1 |
A4100001 |
1 |
CATTLEMAN FRAME ASSEMBLY |
2 |
A0400002 |
1 |
SAA HAMMER WITH SAFETY ASSEMBLY |
3 |
0410003 |
1 |
BARREL 4.3/4″ .45LC |
5 |
0940005 |
1 |
CYLINDER .45LC |
7 |
0400007 |
1 |
HAND |
8 |
0005008 |
1 |
STEEL BACKSTRAP |
10 |
0400010 |
1 |
TRIGGER |
11 |
0005011 |
1 |
GRIPS |
12 |
0400012 |
1 |
BOLT |
15 |
0940015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0005026 |
1 |
STEEL TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0400143 |
1 |
EJECTOR TUBE |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
692 |
0400692 |
1 |
HAND PIN SCREW |
4004 |
CATTLEMAN REV.Q.D. 5.1/2″ .45LC STEEL CAT.13231 CHISHOLM VERSION |
5.1/2” |
45LC |
N. |
Code No. |
Q.ty |
Description |
1 |
A4100001 |
1 |
CATTLEMAN FRAME ASSEMBLY |
2 |
A0400002 |
1 |
SAA HAMMER WITH SAFETY ASSEMBLY |
3 |
0411003 |
1 |
BARREL 5.1/2″ |
5 |
0940005 |
1 |
CYLINDER .45LC |
7 |
0400007 |
1 |
HAND |
8 |
0005008 |
1 |
STEEL BACKSTRAP |
10 |
0400010 |
1 |
TRIGGER |
11 |
0005011 |
1 |
GRIPS |
12 |
0400012 |
1 |
BOLT |
15 |
0940015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0005026 |
1 |
STEEL TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0400143 |
1 |
EJECTOR TUBE |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
692 |
0400692 |
1 |
HAND PIN SCREW |
4005 |
CATTLEMAN REV.Q.D. 7.1/2″ .45LC STEEL CAT.1520 CHISHOLM VERSION |
7.1/2” |
45LC |
N. |
Code No. |
Q.ty |
Description |
1 |
A4100001 |
1 |
CATTLEMAN FRAME ASSEMBLY |
2 |
A0400002 |
1 |
SAA HAMMER WITH SAFETY ASSEMBLY |
3 |
0415003 |
1 |
BARREL 7.1/2″ .45LC |
5 |
0940005 |
1 |
CYLINDER .45LC |
7 |
0400007 |
1 |
HAND |
8 |
0005008 |
1 |
STEEL BACKSTRAP |
10 |
0400010 |
1 |
TRIGGER |
11 |
0005011 |
1 |
GRIPS |
12 |
0400012 |
1 |
BOLT |
15 |
0940015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0005026 |
1 |
STEEL TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0400143 |
1 |
EJECTOR TUBE |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
692 |
0400692 |
1 |
HAND PIN SCREW |
4006 |
CATTLEMAN REV.Q.D. 4.3/4″ .45LC STEEL CAT.13728 PAIR LS |
4.3/4” |
45LC |
N. |
Code No. |
Q.ty |
Description |
1 |
A4100001 |
1 |
CATTLEMAN FRAME ASSEMBLY |
2 |
A0400002 |
1 |
SAA HAMMER WITH SAFETY ASSEMBLY |
3 |
0410003 |
1 |
BARREL 4.3/4″ .45LC |
5 |
0410005 |
1 |
CYLINDER .45LC |
7 |
0400007 |
1 |
HAND |
8 |
0005008 |
1 |
STEEL BACKSTRAP |
10 |
0400010 |
1 |
TRIGGER |
11 |
0005011 |
1 |
GRIPS |
12 |
0400012 |
1 |
BOLT |
15 |
0940015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0005026 |
1 |
STEEL TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0400143 |
1 |
EJECTOR TUBE |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
187 |
0400187 |
1 |
BASE PIN BUSHING |
219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
692 |
0400692 |
1 |
HAND PIN SCREW |
4007 |
CATTLEMAN REV.Q.D. 5.1/2″ .45LC STEEL CAT.13231 PAIR LS |
5.1/2” |
45LC |
N. |
Code No. |
Q.ty |
Description |
1 |
A4100001 |
1 |
CATTLEMAN FRAME ASSEMBLY |
2 |
A0400002 |
1 |
SAA HAMMER WITH SAFETY ASSEMBLY |
3 |
0411003 |
1 |
BARREL 5.1/2″ |
5 |
0410005 |
1 |
CYLINDER .45LC |
7 |
0400007 |
1 |
HAND |
8 |
0005008 |
1 |
STEEL BACKSTRAP |
10 |
0400010 |
1 |
TRIGGER |
11 |
0005011 |
1 |
GRIPS |
12 |
0400012 |
1 |
BOLT |
15 |
0940015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0005026 |
1 |
STEEL TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0400143 |
1 |
EJECTOR TUBE |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
187 |
0400187 |
1 |
BASE PIN BUSHING |
219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
692 |
0400692 |
1 |
HAND PIN SCREW |
4008 |
CATTLEMAN REV.Q.D. 4.3/4″ .45LC STEEL CAT.13728 PAIR RS |
4.3/4” |
45LC |
N. |
Code No. |
Q.ty |
Description |
1 |
A4100001 |
1 |
CATTLEMAN FRAME ASSEMBLY |
2 |
A0400002 |
1 |
SAA HAMMER WITH SAFETY ASSEMBLY |
3 |
0410003 |
1 |
BARREL 4.3/4″ .45LC |
5 |
0410005 |
1 |
CYLINDER .45LC |
7 |
0400007 |
1 |
HAND |
8 |
0005008 |
1 |
STEEL BACKSTRAP |
10 |
0400010 |
1 |
TRIGGER |
11 |
0005011 |
1 |
GRIPS |
12 |
0400012 |
1 |
BOLT |
15 |
0940015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0005026 |
1 |
STEEL TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0400143 |
1 |
EJECTOR TUBE |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
187 |
0400187 |
1 |
BASE PIN BUSHING |
219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
692 |
0400692 |
1 |
HAND PIN SCREW |
4009 |
CATTLEMAN REV.Q.D. 5.1/2″ .45LC STEEL CAT.13231 PAIR RS |
5.1/2” |
45LC |
N. |
Code No. |
Q.ty |
Description |
1 |
A4100001 |
1 |
CATTLEMAN FRAME ASSEMBLY |
2 |
A0400002 |
1 |
SAA HAMMER WITH SAFETY ASSEMBLY |
3 |
0411003 |
1 |
BARREL 5.1/2″ |
5 |
0410005 |
1 |
CYLINDER .45LC |
7 |
0400007 |
1 |
HAND |
8 |
0005008 |
1 |
STEEL BACKSTRAP |
10 |
0400010 |
1 |
TRIGGER |
11 |
0005011 |
1 |
GRIPS |
12 |
0400012 |
1 |
BOLT |
15 |
0940015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0005026 |
1 |
STEEL TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0400143 |
1 |
EJECTOR TUBE |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
187 |
0400187 |
1 |
BASE PIN BUSHING |
219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
692 |
0400692 |
1 |
HAND PIN SCREW |
4010 |
CATTLEMAN REV.Q.D. 4.3/4″ .45LC STEEL CAT.13728 CHISHOLM PAIR LS |
4.3/4” |
45LC |
N. |
Code No. |
Q.ty |
Description |
1 |
A4100001 |
1 |
CATTLEMAN FRAME ASSEMBLY |
2 |
A0400002 |
1 |
SAA HAMMER WITH SAFETY ASSEMBLY |
3 |
0410003 |
1 |
BARREL 4.3/4″ .45LC |
5 |
0940005 |
1 |
CYLINDER .45LC |
7 |
0400007 |
1 |
HAND |
8 |
0005008 |
1 |
STEEL BACKSTRAP |
10 |
0400010 |
1 |
TRIGGER |
11 |
0005011 |
1 |
GRIPS |
12 |
0400012 |
1 |
BOLT |
15 |
0940015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0005026 |
1 |
STEEL TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0400143 |
1 |
EJECTOR TUBE |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
692 |
0400692 |
1 |
HAND PIN SCREW |
4011 |
CATTLEMAN REV.Q.D. 4.3/4″ .45LC STEEL CAT.13728 CHISHOLM PAIR RS |
4.3/4” |
45LC |
N. |
Code No. |
Q.ty |
Description |
1 |
A4100001 |
1 |
CATTLEMAN FRAME ASSEMBLY |
2 |
A0400002 |
1 |
SAA HAMMER WITH SAFETY ASSEMBLY |
3 |
0410003 |
1 |
BARREL 4.3/4″ .45LC |
5 |
0940005 |
1 |
CYLINDER .45LC |
7 |
0400007 |
1 |
HAND |
8 |
0005008 |
1 |
STEEL BACKSTRAP |
10 |
0400010 |
1 |
TRIGGER |
11 |
0005011 |
1 |
GRIPS |
12 |
0400012 |
1 |
BOLT |
15 |
0940015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0005026 |
1 |
STEEL TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0400143 |
1 |
EJECTOR TUBE |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
692 |
0400692 |
1 |
HAND PIN SCREW |
4012 |
CATTLEMAN REV.Q.D. 5.1/2″ .45LC STEEL CAT.13231 CODY PAIR LS |
5.1/2” |
45LC |
N. |
Code No. |
Q.ty |
Description |
1 |
A4100001 |
1 |
CATTLEMAN FRAME ASSEMBLY |
2 |
A0400002 |
1 |
SAA HAMMER WITH SAFETY ASSEMBLY |
3 |
0411003 |
1 |
BARREL 5.1/2″ |
5 |
0940005 |
1 |
CYLINDER .45LC |
7 |
0400007 |
1 |
HAND |
8 |
0005008 |
1 |
STEEL BACKSTRAP |
10 |
0400010 |
1 |
TRIGGER |
11 |
0005011 |
1 |
GRIPS |
12 |
0400012 |
1 |
BOLT |
15 |
0940015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0005026 |
1 |
STEEL TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0400143 |
1 |
EJECTOR TUBE |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
692 |
0400692 |
1 |
HAND PIN SCREW |
4013 |
CATTLEMAN REV.Q.D. 5.1/2″ .45LC STEEL CAT.13231 CODY PAIR RS |
5.1/2” |
45LC |
N. |
Code No. |
Q.ty |
Description |
1 |
A4100001 |
1 |
CATTLEMAN FRAME ASSEMBLY |
2 |
A0400002 |
1 |
SAA HAMMER WITH SAFETY ASSEMBLY |
3 |
0411003 |
1 |
BARREL 5.1/2″ |
5 |
0940005 |
1 |
CYLINDER .45LC |
7 |
0400007 |
1 |
HAND |
8 |
0005008 |
1 |
STEEL BACKSTRAP |
10 |
0400010 |
1 |
TRIGGER |
11 |
0005011 |
1 |
GRIPS |
12 |
0400012 |
1 |
BOLT |
15 |
0940015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0005026 |
1 |
STEEL TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0400143 |
1 |
EJECTOR TUBE |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
692 |
0400692 |
1 |
HAND PIN SCREW |
4100 |
CATTLEMAN REV.Q.D. 4.3/4″ .45LC STEEL C.13728(SQUARE NOTCH VERSION) |
4.3/4” |
45LC |
N. |
Code No. |
Q.ty |
Description |
1 |
A4100001 |
1 |
CATTLEMAN FRAME ASSEMBLY |
2 |
A0502002 |
1 |
SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
3 |
0410003 |
1 |
BARREL 4.3/4″ .45LC |
5 |
0410005 |
1 |
CYLINDER .45LC |
7 |
0400007 |
1 |
HAND |
8 |
0005008 |
1 |
STEEL BACKSTRAP |
10 |
0400010 |
1 |
TRIGGER |
11 |
0005011 |
1 |
GRIPS |
12 |
0400012 |
1 |
BOLT |
15 |
0940015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0005026 |
1 |
STEEL TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0400143 |
1 |
EJECTOR TUBE |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
187 |
0400187 |
1 |
BASE PIN BUSHING |
219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
692 |
0400692 |
1 |
HAND PIN SCREW |
4101 |
CATTLEMAN REV.Q.D. 5.1/2″ .45LC STEEL C.13231(SQUARE NOTCH VERSION) |
5.1/2” |
45LC |
N. |
Code No. |
Q.ty |
Description |
1 |
A4100001 |
1 |
CATTLEMAN FRAME ASSEMBLY |
2 |
A0502002 |
1 |
SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
3 |
0411003 |
1 |
BARREL 5.1/2″ |
5 |
0410005 |
1 |
CYLINDER .45LC |
7 |
0400007 |
1 |
HAND |
8 |
0005008 |
1 |
STEEL BACKSTRAP |
10 |
0400010 |
1 |
TRIGGER |
11 |
0005011 |
1 |
GRIPS |
12 |
0400012 |
1 |
BOLT |
15 |
0940015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0005026 |
1 |
STEEL TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0400143 |
1 |
EJECTOR TUBE |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
187 |
0400187 |
1 |
BASE PIN BUSHING |
219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
692 |
0400692 |
1 |
HAND PIN SCREW |
4102 |
CATTLEMAN REV.Q.D. 7.1/2″ .45LC STEEL C.1520 (SQUARE NOTCH VERSION) |
7.1/2” |
45LC |
N. |
Code No. |
Q.ty |
Description |
1 |
A4100001 |
1 |
CATTLEMAN FRAME ASSEMBLY |
2 |
A0502002 |
1 |
SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
3 |
0415003 |
1 |
BARREL 7.1/2″ .45LC |
5 |
0410005 |
1 |
CYLINDER .45LC |
7 |
0400007 |
1 |
HAND |
8 |
0005008 |
1 |
STEEL BACKSTRAP |
10 |
0400010 |
1 |
TRIGGER |
11 |
0005011 |
1 |
GRIPS |
12 |
0400012 |
1 |
BOLT |
15 |
0940015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0005026 |
1 |
STEEL TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0400143 |
1 |
EJECTOR TUBE |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
187 |
0400187 |
1 |
BASE PIN BUSHING |
219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
692 |
0400692 |
1 |
HAND PIN SCREW |
4103 |
CATTLEMAN REV.Q.D. 4.3/4″ .357M. STEEL C.1521 (SQUARE NOTCH VERSION) |
4.3/4” |
357MAG |
N. |
Code No. |
Q.ty |
Description |
1 |
A4100001 |
1 |
CATTLEMAN FRAME ASSEMBLY |
2 |
A0502002 |
1 |
SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
3 |
0400003 |
1 |
BARREL 4.3/4″ .357MAG/38SP. |
5 |
0400005 |
1 |
CYLINDER .357MAG |
7 |
0400007 |
1 |
HAND |
8 |
0005008 |
1 |
STEEL BACKSTRAP |
10 |
0400010 |
1 |
TRIGGER |
11 |
0005011 |
1 |
GRIPS |
12 |
0400012 |
1 |
BOLT |
15 |
0946015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0005026 |
1 |
STEEL TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0400143 |
1 |
EJECTOR TUBE |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
145 |
0400145 |
1 |
GATE CATCH SCREW |
187 |
0400187 |
1 |
BASE PIN BUSHING |
219 |
A0400219 |
1 |
SAA EJECTOR N.M.4.3/4″.357MG ASS. |
692 |
0400692 |
1 |
HAND PIN SCREW |
4104 |
CATTLEMAN REV.Q.D. 5.1/2″ .357M STEEL C.1522 (SQUARE NOTCH VERSION) |
5.1/2” |
357MAG |
N. |
Code No. |
Q.ty |
Description |
1 |
A4100001 |
1 |
CATTLEMAN FRAME ASSEMBLY |
2 |
A0502002 |
1 |
SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
3 |
0401003 |
1 |
BARREL 5.1/2″ .357MAG/38SP. |
5 |
0400005 |
1 |
CYLINDER .357MAG |
7 |
0400007 |
1 |
HAND |
8 |
0005008 |
1 |
STEEL BACKSTRAP |
10 |
0400010 |
1 |
TRIGGER |
11 |
0005011 |
1 |
GRIPS |
12 |
0400012 |
1 |
BOLT |
15 |
0946015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0005026 |
1 |
STEEL TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0400143 |
1 |
EJECTOR TUBE |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
187 |
0400187 |
1 |
BASE PIN BUSHING |
219 |
A0400219 |
1 |
SAA EJECTOR N.M.4.3/4″.357MG ASS. |
692 |
0400692 |
1 |
HAND PIN SCREW |
4105 |
CATTLEMAN REV.Q.D. 7.1/2″ .357M STEEL C.1523 (SQUARE NOTCH VERSION) |
7.1/2” |
357MAG |
N. |
Code No. |
Q.ty |
Description |
1 |
A4100001 |
1 |
CATTLEMAN FRAME ASSEMBLY |
2 |
A0502002 |
1 |
SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
3 |
0405003 |
1 |
BARREL 7.1/2″ .357MAG/38SP. |
5 |
0400005 |
1 |
CYLINDER .357MAG |
7 |
0400007 |
1 |
HAND |
8 |
0005008 |
1 |
STEEL BACKSTRAP |
10 |
0400010 |
1 |
TRIGGER |
11 |
0005011 |
1 |
GRIPS |
12 |
0400012 |
1 |
BOLT |
15 |
0946015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0005026 |
1 |
STEEL TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0400143 |
1 |
EJECTOR TUBE |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
187 |
0400187 |
1 |
BASE PIN BUSHING |
219 |
A0400219 |
1 |
SAA EJECTOR N.M.4.3/4″.357MG ASS. |
692 |
0400692 |
1 |
HAND PIN SCREW |
4107 |
CATTLEMAN REV.Q.D. 4.3/4″ .44-40 STEEL C.13727(SQUARE NOTCH VERSION) |
4.3/4” |
44-40 |
N. |
Code No. |
Q.ty |
Description |
1 |
A4100001 |
1 |
CATTLEMAN FRAME ASSEMBLY |
2 |
A0502002 |
1 |
SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
3 |
0420003 |
1 |
BARREL 4.3/4″ .44/40 |
5 |
0420005 |
1 |
CYLINDER .44/40 |
7 |
0400007 |
1 |
HAND |
8 |
0005008 |
1 |
STEEL BACKSTRAP |
10 |
0400010 |
1 |
TRIGGER |
11 |
0005011 |
1 |
GRIPS |
12 |
0400012 |
1 |
BOLT |
15 |
0940015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0005026 |
1 |
STEEL TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0400143 |
1 |
EJECTOR TUBE |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
187 |
0400187 |
1 |
BASE PIN BUSHING |
219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
692 |
0400692 |
1 |
HAND PIN SCREW |
4108 |
CATTLEMAN REV.Q.D. 5.1/2″ .44-40 STEEL C.13230(SQUARE NOTCH VERSION) |
5.1/2” |
44-40 |
N. |
Code No. |
Q.ty |
Description |
1 |
A4100001 |
1 |
CATTLEMAN FRAME ASSEMBLY |
2 |
A0502002 |
1 |
SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
3 |
0421003 |
1 |
BARREL 5.1/2″ .44/40 |
5 |
0420005 |
1 |
CYLINDER .44/40 |
7 |
0400007 |
1 |
HAND |
8 |
0005008 |
1 |
STEEL BACKSTRAP |
10 |
0400010 |
1 |
TRIGGER |
11 |
0005011 |
1 |
GRIPS |
12 |
0400012 |
1 |
BOLT |
15 |
0940015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0005026 |
1 |
STEEL TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0400143 |
1 |
EJECTOR TUBE |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
187 |
0400187 |
1 |
BASE PIN BUSHING |
219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
692 |
0400692 |
1 |
HAND PIN SCREW |
4109 |
CATTLEMAN REV.Q.D. 7.1/2″ .44-40 STEEL C.1517 (SQUARE NOTCH VERSION) |
7.1/2” |
44-40 |
N. |
Code No. |
Q.ty |
Description |
1 |
A4100001 |
1 |
CATTLEMAN FRAME ASSEMBLY |
2 |
A0502002 |
1 |
SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
3 |
0425003 |
1 |
BARREL 7.1/2″ .44/40 |
5 |
0420005 |
1 |
CYLINDER .44/40 |
7 |
0400007 |
1 |
HAND |
8 |
0005008 |
1 |
STEEL BACKSTRAP |
10 |
0400010 |
1 |
TRIGGER |
11 |
0005011 |
1 |
GRIPS |
12 |
0400012 |
1 |
BOLT |
15 |
0940015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0005026 |
1 |
STEEL TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0400143 |
1 |
EJECTOR TUBE |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
187 |
0400187 |
1 |
BASE PIN BUSHING |
219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
692 |
0400692 |
1 |
HAND PIN SCREW |
4110 |
CATTLEMAN REV.Q.D. 4.3/4″ .45LC STEEL CAT.1518 DESPERADO VERSION |
4.3/4” |
45LC |
N. |
Code No. |
Q.ty |
Description |
1 |
A4100001 |
1 |
CATTLEMAN FRAME ASSEMBLY |
2 |
A0400002 |
1 |
SAA HAMMER WITH SAFETY ASSEMBLY |
3 |
0410003 |
1 |
BARREL 4.3/4″ .45LC |
5 |
0410005 |
1 |
CYLINDER .45LC |
7 |
0400007 |
1 |
HAND |
8 |
0005008 |
1 |
STEEL BACKSTRAP |
10 |
0400010 |
1 |
TRIGGER |
11 |
4110011 |
1 |
POLYMER BUFFALO GRIP |
12 |
0400012 |
1 |
BOLT |
15 |
0940015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0005026 |
1 |
STEEL TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0400143 |
1 |
EJECTOR TUBE |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
187 |
0400187 |
1 |
BASE PIN BUSHING |
219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
692 |
0400692 |
1 |
HAND PIN SCREW |
4111 |
CATTLEMAN REV.Q.D. 5.1/2″ .45LC STEEL CAT.1519 DESPERADO VERSION |
5.1/2” |
45LC |
N. |
Code No. |
Q.ty |
Description |
1 |
A4100001 |
1 |
CATTLEMAN FRAME ASSEMBLY |
2 |
A0400002 |
1 |
SAA HAMMER WITH SAFETY ASSEMBLY |
3 |
0411003 |
1 |
BARREL 5.1/2″ |
5 |
0410005 |
1 |
CYLINDER .45LC |
7 |
0400007 |
1 |
HAND |
8 |
0005008 |
1 |
STEEL BACKSTRAP |
10 |
0400010 |
1 |
TRIGGER |
11 |
4110011 |
1 |
POLYMER BUFFALO GRIP |
12 |
0400012 |
1 |
BOLT |
15 |
0940015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0005026 |
1 |
STEEL TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0400143 |
1 |
EJECTOR TUBE |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
187 |
0400187 |
1 |
BASE PIN BUSHING |
219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
692 |
0400692 |
1 |
HAND PIN SCREW |
4112 |
CATTLEMAN REV.Q.D. 7.1/2″ .45LC STEEL CAT.1520 DESPERADO VERSION |
7.1/2” |
45LC |
N. |
Code No. |
Q.ty |
Description |
1 |
A4100001 |
1 |
CATTLEMAN FRAME ASSEMBLY |
2 |
A0400002 |
1 |
SAA HAMMER WITH SAFETY ASSEMBLY |
3 |
0415003 |
1 |
BARREL 7.1/2″ .45LC |
5 |
0410005 |
1 |
CYLINDER .45LC |
7 |
0400007 |
1 |
HAND |
8 |
0005008 |
1 |
STEEL BACKSTRAP |
10 |
0400010 |
1 |
TRIGGER |
11 |
4110011 |
1 |
POLYMER BUFFALO GRIP |
12 |
0400012 |
1 |
BOLT |
15 |
0940015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0005026 |
1 |
STEEL TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0400143 |
1 |
EJECTOR TUBE |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
187 |
0400187 |
1 |
BASE PIN BUSHING |
219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
692 |
0400692 |
1 |
HAND PIN SCREW |
4500 |
CATTLEMAN REV.Q.D. 4.3/4″ .45LC STAINLESS STEEL CAT.13728 |
4.3/4” |
45LC |
N. |
Code No. |
Q.ty |
Description |
1 |
A4500001 |
1 |
SAA STAINLESS STEEL FRAME ASSEMBLY |
2 |
A4500002 |
1 |
SAA STAINLESS STEEL HAMMER ASSEMBLY |
3 |
4500003 |
1 |
BARREL 4.3/4″ .45LC |
5 |
4500005 |
1 |
CYLINDER .45LC |
7 |
0400007 |
1 |
HAND |
8 |
4500008 |
1 |
BACKSTRAP |
10 |
4500010 |
1 |
TRIGGER |
11 |
0000011 |
1 |
GRIP |
12 |
0400012 |
1 |
BOLT |
15 |
4500015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
4500019 |
1 |
SEAR AND BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
4500021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
4500026 |
1 |
TRIGGERGUARD IN STEEL |
31 |
4500031 |
2 |
TRIGGERGUARD SCREW |
32 |
4500032 |
4 |
REAR BACKSTRAP SCREW |
35 |
4500035 |
1 |
BOLT SPRING SCREW |
36 |
4500036 |
1 |
MAIN SPRING SCREW |
37 |
4500037 |
1 |
HAMMER SCREW |
38 |
4500038 |
1 |
TRIGGER SCREW |
40 |
4500040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
4500139 |
1 |
BASE PIN NUT |
140 |
4500140 |
1 |
BASE PIN SCREW |
143 |
4500143 |
1 |
EJECTOR ROD TUBE |
144 |
4500144 |
1 |
EJECTOR ROD TUBE SCREW |
219 |
A4500219 |
1 |
EJECTOR 4.3/4″ .45LC ASSEMBLY STAINLESS STEEL |
444 |
4500444 |
1 |
FIRING PIN BEARING |
692 |
0400692 |
1 |
HAND PIN SCREW |
4501 |
CATTLEMAN REV.Q.D. 5.1/2″ .45LC STAINLESS STEEL CAT.13231 |
5.1/2” |
45LC |
N. |
Code No. |
Q.ty |
Description |
1 |
A4500001 |
1 |
SAA STAINLESS STEEL FRAME ASSEMBLY |
2 |
A4500002 |
1 |
SAA STAINLESS STEEL HAMMER ASSEMBLY |
3 |
4501003 |
1 |
BARREL 5.1/2″ |
5 |
4500005 |
1 |
CYLINDER .45LC |
7 |
0400007 |
1 |
HAND |
8 |
4500008 |
1 |
BACKSTRAP |
10 |
4500010 |
1 |
TRIGGER |
11 |
0000011 |
1 |
GRIP |
12 |
0400012 |
1 |
BOLT |
15 |
4500015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
4500019 |
1 |
SEAR AND BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
4500021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
4500026 |
1 |
TRIGGERGUARD IN STEEL |
31 |
4500031 |
2 |
TRIGGERGUARD SCREW |
32 |
4500032 |
4 |
REAR BACKSTRAP SCREW |
35 |
4500035 |
1 |
BOLT SPRING SCREW |
36 |
4500036 |
1 |
MAIN SPRING SCREW |
37 |
4500037 |
1 |
HAMMER SCREW |
38 |
4500038 |
1 |
TRIGGER SCREW |
40 |
4500040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
4500139 |
1 |
BASE PIN NUT |
140 |
4500140 |
1 |
BASE PIN SCREW |
143 |
4500143 |
1 |
EJECTOR ROD TUBE |
144 |
4500144 |
1 |
EJECTOR ROD TUBE SCREW |
219 |
A4500219 |
1 |
EJECTOR 4.3/4″ .45LC ASSEMBLY STAINLESS STEEL |
444 |
4500444 |
1 |
FIRING PIN BEARING |
692 |
0400692 |
1 |
HAND PIN SCREW |
4502 |
CATTLEMAN REV.Q.D. 7.1/2″ .45LC STAINLESS STEEL CAT.1520 |
7.1/2” |
45LC |
N. |
Code No. |
Q.ty |
Description |
1 |
A4500001 |
1 |
SAA STAINLESS STEEL FRAME ASSEMBLY |
2 |
A4500002 |
1 |
SAA STAINLESS STEEL HAMMER ASSEMBLY |
3 |
4502003 |
1 |
BARREL 7.1/2″ .45LC |
5 |
4500005 |
1 |
CYLINDER .45LC |
7 |
0400007 |
1 |
HAND |
8 |
4500008 |
1 |
BACKSTRAP |
10 |
4500010 |
1 |
TRIGGER |
11 |
0000011 |
1 |
GRIP |
12 |
0400012 |
1 |
BOLT |
15 |
4500015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
4500019 |
1 |
SEAR AND BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
4500021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
4500026 |
1 |
TRIGGERGUARD IN STEEL |
31 |
4500031 |
2 |
TRIGGERGUARD SCREW |
32 |
4500032 |
4 |
REAR BACKSTRAP SCREW |
35 |
4500035 |
1 |
BOLT SPRING SCREW |
36 |
4500036 |
1 |
MAIN SPRING SCREW |
37 |
4500037 |
1 |
HAMMER SCREW |
38 |
4500038 |
1 |
TRIGGER SCREW |
40 |
4500040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
4500139 |
1 |
BASE PIN NUT |
140 |
4500140 |
1 |
BASE PIN SCREW |
143 |
4500143 |
1 |
EJECTOR ROD TUBE |
144 |
4500144 |
1 |
EJECTOR ROD TUBE SCREW |
219 |
A4500219 |
1 |
EJECTOR 4.3/4″ .45LC ASSEMBLY STAINLESS STEEL |
444 |
4500444 |
1 |
FIRING PIN BEARING |
692 |
0400692 |
1 |
HAND PIN SCREW |
4503 |
CATTLEMAN REV.Q.D. 4.3/4″ .357MAG. STAINLESS STEEL CAT.1521 |
4.3/4” |
357MAG |
N. |
Code No. |
Q.ty |
Description |
1 |
A4500001 |
1 |
SAA STAINLESS STEEL FRAME ASSEMBLY |
2 |
A4500002 |
1 |
SAA STAINLESS STEEL HAMMER ASSEMBLY |
3 |
4503003 |
1 |
BARREL 4.3/4″ .357M |
5 |
4503005 |
1 |
CYLINDER .357M. |
7 |
0400007 |
1 |
HAND |
8 |
4500008 |
1 |
BACKSTRAP |
10 |
4500010 |
1 |
TRIGGER |
11 |
0000011 |
1 |
GRIP |
12 |
0400012 |
1 |
BOLT |
15 |
4503015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
4500019 |
1 |
SEAR AND BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
4500021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
4500026 |
1 |
TRIGGERGUARD IN STEEL |
31 |
4500031 |
2 |
TRIGGERGUARD SCREW |
32 |
4500032 |
4 |
REAR BACKSTRAP SCREW |
35 |
4500035 |
1 |
BOLT SPRING SCREW |
36 |
4500036 |
1 |
MAIN SPRING SCREW |
37 |
4500037 |
1 |
HAMMER SCREW |
38 |
4500038 |
1 |
TRIGGER SCREW |
40 |
4500040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
4500139 |
1 |
BASE PIN NUT |
140 |
4500140 |
1 |
BASE PIN SCREW |
143 |
4500143 |
1 |
EJECTOR ROD TUBE |
144 |
4500144 |
1 |
EJECTOR ROD TUBE SCREW |
219 |
A4503219 |
1 |
EJECTOR 4.3/4″ .357MG ASSEMBLY STAINLESS STEEL |
444 |
4500444 |
1 |
FIRING PIN BEARING |
692 |
0400692 |
1 |
HAND PIN SCREW |
4504 |
CATTLEMAN REV.Q.D. 5.1/2″ .357MAG. STAINLESS STEEL CAT.1522 |
5.1/2” |
357MAG |
N. |
Code No. |
Q.ty |
Description |
1 |
A4500001 |
1 |
SAA STAINLESS STEEL FRAME ASSEMBLY |
2 |
A4500002 |
1 |
SAA STAINLESS STEEL HAMMER ASSEMBLY |
3 |
4504003 |
1 |
BARREL 5.1/2″357M. |
5 |
4503005 |
1 |
CYLINDER .357M. |
7 |
0400007 |
1 |
HAND |
8 |
4500008 |
1 |
BACKSTRAP |
10 |
4500010 |
1 |
TRIGGER |
11 |
0000011 |
1 |
GRIP |
12 |
0400012 |
1 |
BOLT |
15 |
4503015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
4500019 |
1 |
SEAR AND BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
4500021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
4500026 |
1 |
TRIGGERGUARD IN STEEL |
31 |
4500031 |
2 |
TRIGGERGUARD SCREW |
32 |
4500032 |
4 |
REAR BACKSTRAP SCREW |
35 |
4500035 |
1 |
BOLT SPRING SCREW |
36 |
4500036 |
1 |
MAIN SPRING SCREW |
37 |
4500037 |
1 |
HAMMER SCREW |
38 |
4500038 |
1 |
TRIGGER SCREW |
40 |
4500040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
4500139 |
1 |
BASE PIN NUT |
140 |
4500140 |
1 |
BASE PIN SCREW |
143 |
4500143 |
1 |
EJECTOR ROD TUBE |
144 |
4500144 |
1 |
EJECTOR ROD TUBE SCREW |
219 |
A4503219 |
1 |
EJECTOR 4.3/4″ .357MG ASSEMBLY STAINLESS STEEL |
444 |
4500444 |
1 |
FIRING PIN BEARING |
692 |
0400692 |
1 |
HAND PIN SCREW |
4505 |
CATTLEMAN REV.Q.D. 7.1/2″ .357MAG. STAINLESS STEEL CAT.1523 |
7.1/2” |
357MAG |
N. |
Code No. |
Q.ty |
Description |
1 |
A4500001 |
1 |
SAA STAINLESS STEEL FRAME ASSEMBLY |
2 |
A4500002 |
1 |
SAA STAINLESS STEEL HAMMER ASSEMBLY |
3 |
4505003 |
1 |
BARREL 7.1/2″ .357M. |
5 |
4503005 |
1 |
CYLINDER .357M. |
7 |
0400007 |
1 |
HAND |
8 |
4500008 |
1 |
BACKSTRAP |
10 |
4500010 |
1 |
TRIGGER |
11 |
0000011 |
1 |
GRIP |
12 |
0400012 |
1 |
BOLT |
15 |
4503015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
4500019 |
1 |
SEAR AND BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
4500021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
4500026 |
1 |
TRIGGERGUARD IN STEEL |
31 |
4500031 |
2 |
TRIGGERGUARD SCREW |
32 |
4500032 |
4 |
REAR BACKSTRAP SCREW |
35 |
4500035 |
1 |
BOLT SPRING SCREW |
36 |
4500036 |
1 |
MAIN SPRING SCREW |
37 |
4500037 |
1 |
HAMMER SCREW |
38 |
4500038 |
1 |
TRIGGER SCREW |
40 |
4500040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
4500139 |
1 |
BASE PIN NUT |
140 |
4500140 |
1 |
BASE PIN SCREW |
143 |
4500143 |
1 |
EJECTOR ROD TUBE |
144 |
4500144 |
1 |
EJECTOR ROD TUBE SCREW |
219 |
A4503219 |
1 |
EJECTOR 4.3/4″ .357MG ASSEMBLY STAINLESS STEEL |
444 |
4500444 |
1 |
FIRING PIN BEARING |
692 |
0400692 |
1 |
HAND PIN SCREW |
4506 |
CATTLEMAN REV.QD.3.1/2″.45LC C.8276 N.M.THUNDERER MOD. STAINLESS STEEL |
3.1/2” |
45LC |
N. |
Code No. |
Q.ty |
Description |
1 |
A4500001 |
1 |
SAA STAINLESS STEEL FRAME ASSEMBLY |
2 |
A4500002 |
1 |
SAA STAINLESS STEEL HAMMER ASSEMBLY |
3 |
4506003 |
1 |
SA BARREL 3.1/2″.45 |
5 |
4500005 |
1 |
CYLINDER .45LC |
7 |
0400007 |
1 |
HAND |
8 |
4506008 |
1 |
THUNDERER BACKSTRAP |
10 |
4500010 |
1 |
TRIGGER |
11 |
0338011 |
1 |
`THUNDERER` GRIP |
12 |
0400012 |
1 |
BOLT |
15 |
4500015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
4500019 |
1 |
SEAR AND BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
4500021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
4500026 |
1 |
TRIGGERGUARD IN STEEL |
31 |
4500031 |
2 |
TRIGGERGUARD SCREW |
32 |
4500032 |
4 |
REAR BACKSTRAP SCREW |
35 |
4500035 |
1 |
BOLT SPRING SCREW |
36 |
4500036 |
1 |
MAIN SPRING SCREW |
37 |
4500037 |
1 |
HAMMER SCREW |
38 |
4500038 |
1 |
TRIGGER SCREW |
40 |
4500040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
4500139 |
1 |
BASE PIN NUT |
140 |
4500140 |
1 |
BASE PIN SCREW |
143 |
4506143 |
1 |
EJECTOR ROD TUBE |
144 |
4500144 |
1 |
EJECTOR ROD TUBE SCREW |
219 |
A4506219 |
1 |
EJECTOR 3.1/2″ .357MG ASSEMBLY STAINLESS STEEL |
692 |
0400692 |
1 |
HAND PIN SCREW |
4507 |
CATTLEMAN REV.QD.4.3/4″.45LC C.8304 N.M.THUNDERER MOD. STAINLESS STEEL |
4.3/4” |
45LC |
N. |
Code No. |
Q.ty |
Description |
1 |
A4500001 |
1 |
SAA STAINLESS STEEL FRAME ASSEMBLY |
2 |
A4500002 |
1 |
SAA STAINLESS STEEL HAMMER ASSEMBLY |
3 |
4500003 |
1 |
BARREL 4.3/4″ .45LC |
5 |
4500005 |
1 |
CYLINDER .45LC |
7 |
0400007 |
1 |
HAND |
8 |
4506008 |
1 |
THUNDERER BACKSTRAP |
10 |
4500010 |
1 |
TRIGGER |
11 |
0338011 |
1 |
`THUNDERER` GRIP |
12 |
0400012 |
1 |
BOLT |
15 |
4500015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
4500019 |
1 |
SEAR AND BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
4500021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
4500026 |
1 |
TRIGGERGUARD IN STEEL |
31 |
4500031 |
2 |
TRIGGERGUARD SCREW |
32 |
4500032 |
4 |
REAR BACKSTRAP SCREW |
35 |
4500035 |
1 |
BOLT SPRING SCREW |
36 |
4500036 |
1 |
MAIN SPRING SCREW |
37 |
4500037 |
1 |
HAMMER SCREW |
38 |
4500038 |
1 |
TRIGGER SCREW |
40 |
4500040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
4500139 |
1 |
BASE PIN NUT |
140 |
4500140 |
1 |
BASE PIN SCREW |
143 |
4500143 |
1 |
EJECTOR ROD TUBE |
144 |
4500144 |
1 |
EJECTOR ROD TUBE SCREW |
219 |
A4500219 |
1 |
EJECTOR 4.3/4″ .45LC ASSEMBLY STAINLESS STEEL |
692 |
0400692 |
1 |
HAND PIN SCREW |
4508 |
CATTLEMAN REV.QD.3.1/2″.357M.C.8273 N.M.THUNDERER MOD. STAINLESS STEEL |
3.1/2” |
357MAG |
N. |
Code No. |
Q.ty |
Description |
1 |
A4500001 |
1 |
SAA STAINLESS STEEL FRAME ASSEMBLY |
2 |
A4500002 |
1 |
SAA STAINLESS STEEL HAMMER ASSEMBLY |
3 |
4508003 |
1 |
SA BARREL 3.1/2″.357M. |
5 |
4503005 |
1 |
CYLINDER .357M. |
7 |
0400007 |
1 |
HAND |
8 |
4506008 |
1 |
THUNDERER BACKSTRAP |
10 |
4500010 |
1 |
TRIGGER |
11 |
0338011 |
1 |
`THUNDERER` GRIP |
12 |
0400012 |
1 |
BOLT |
15 |
4503015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
4500019 |
1 |
SEAR AND BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
4500021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
4500026 |
1 |
TRIGGERGUARD IN STEEL |
31 |
4500031 |
2 |
TRIGGERGUARD SCREW |
32 |
4500032 |
4 |
REAR BACKSTRAP SCREW |
35 |
4500035 |
1 |
BOLT SPRING SCREW |
36 |
4500036 |
1 |
MAIN SPRING SCREW |
37 |
4500037 |
1 |
HAMMER SCREW |
38 |
4500038 |
1 |
TRIGGER SCREW |
40 |
4500040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
4500139 |
1 |
BASE PIN NUT |
140 |
4500140 |
1 |
BASE PIN SCREW |
143 |
4506143 |
1 |
EJECTOR ROD TUBE |
144 |
4500144 |
1 |
EJECTOR ROD TUBE SCREW |
219 |
A4508219 |
1 |
EJECTOR 3.1/2″ .357MG ASSEMBLY STAINLESS STEEL |
692 |
0400692 |
1 |
HAND PIN SCREW |
4509 |
CATTLEMAN REV.QD.4.3/4″.357M.C.8305 N.M.THUNDERER MOD. STAINLESS STEEL |
4.3/4” |
357MAG |
N. |
Code No. |
Q.ty |
Description |
1 |
A4500001 |
1 |
SAA STAINLESS STEEL FRAME ASSEMBLY |
2 |
A4500002 |
1 |
SAA STAINLESS STEEL HAMMER ASSEMBLY |
3 |
4503003 |
1 |
BARREL 4.3/4″ .357M |
5 |
4503005 |
1 |
CYLINDER .357M. |
7 |
0400007 |
1 |
HAND |
8 |
4506008 |
1 |
THUNDERER BACKSTRAP |
10 |
4500010 |
1 |
TRIGGER |
11 |
0338011 |
1 |
`THUNDERER` GRIP |
12 |
0400012 |
1 |
BOLT |
15 |
4503015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
4500019 |
1 |
SEAR AND BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
4500021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
4500026 |
1 |
TRIGGERGUARD IN STEEL |
31 |
4500031 |
2 |
TRIGGERGUARD SCREW |
32 |
4500032 |
4 |
REAR BACKSTRAP SCREW |
35 |
4500035 |
1 |
BOLT SPRING SCREW |
36 |
4500036 |
1 |
MAIN SPRING SCREW |
37 |
4500037 |
1 |
HAMMER SCREW |
38 |
4500038 |
1 |
TRIGGER SCREW |
40 |
4500040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
4500139 |
1 |
BASE PIN NUT |
140 |
4500140 |
1 |
BASE PIN SCREW |
143 |
4500143 |
1 |
EJECTOR ROD TUBE |
144 |
4500144 |
1 |
EJECTOR ROD TUBE SCREW |
219 |
A4503219 |
1 |
EJECTOR 4.3/4″ .357MG ASSEMBLY STAINLESS STEEL |
692 |
0400692 |
1 |
HAND PIN SCREW |
4520 |
CATTLEMAN REV.Q.D. 4.3/4″ .45LC STAINLESS STEEL CAT.13728 (SQUARE NOTCH VERSION) |
4.3/4” |
45LC |
N. |
Code No. |
Q.ty |
Description |
1 |
A4500001 |
1 |
SAA STAINLESS STEEL FRAME ASSEMBLY |
2 |
A4500002 |
1 |
SAA STAINLESS STEEL HAMMER ASSEMBLY |
3 |
4500003 |
1 |
BARREL 4.3/4″ .45LC |
5 |
4500005 |
1 |
CYLINDER .45LC |
7 |
0400007 |
1 |
HAND |
8 |
4500008 |
1 |
BACKSTRAP |
10 |
4500010 |
1 |
TRIGGER |
11 |
0000011 |
1 |
GRIP |
12 |
0400012 |
1 |
BOLT |
15 |
4500015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
4500019 |
1 |
SEAR AND BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
4500021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
4500026 |
1 |
TRIGGERGUARD IN STEEL |
31 |
4500031 |
2 |
TRIGGERGUARD SCREW |
32 |
4500032 |
4 |
REAR BACKSTRAP SCREW |
35 |
4500035 |
1 |
BOLT SPRING SCREW |
36 |
4500036 |
1 |
MAIN SPRING SCREW |
37 |
4500037 |
1 |
HAMMER SCREW |
38 |
4500038 |
1 |
TRIGGER SCREW |
40 |
4500040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
4500139 |
1 |
BASE PIN NUT |
140 |
4500140 |
1 |
BASE PIN SCREW |
143 |
4500143 |
1 |
EJECTOR ROD TUBE |
144 |
4500144 |
1 |
EJECTOR ROD TUBE SCREW |
219 |
A4500219 |
1 |
EJECTOR 4.3/4″ .45LC ASSEMBLY STAINLESS STEEL |
444 |
4500444 |
1 |
FIRING PIN BEARING |
692 |
0400692 |
1 |
HAND PIN SCREW |
4521 |
CATTLEMAN REV.Q.D. 5.1/2″ .45LC STAINLESS STEEL CAT.13231 (SQUARE NOTCH VERSION) |
5.1/2” |
45LC |
N. |
Code No. |
Q.ty |
Description |
1 |
A4500001 |
1 |
SAA STAINLESS STEEL FRAME ASSEMBLY |
2 |
A4500002 |
1 |
SAA STAINLESS STEEL HAMMER ASSEMBLY |
3 |
4501003 |
1 |
BARREL 5.1/2″ |
5 |
4500005 |
1 |
CYLINDER .45LC |
7 |
0400007 |
1 |
HAND |
8 |
4500008 |
1 |
BACKSTRAP |
10 |
4500010 |
1 |
TRIGGER |
11 |
0000011 |
1 |
GRIP |
12 |
0400012 |
1 |
BOLT |
15 |
4500015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
4500019 |
1 |
SEAR AND BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
4500021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
4500026 |
1 |
TRIGGERGUARD IN STEEL |
31 |
4500031 |
2 |
TRIGGERGUARD SCREW |
32 |
4500032 |
4 |
REAR BACKSTRAP SCREW |
35 |
4500035 |
1 |
BOLT SPRING SCREW |
36 |
4500036 |
1 |
MAIN SPRING SCREW |
37 |
4500037 |
1 |
HAMMER SCREW |
38 |
4500038 |
1 |
TRIGGER SCREW |
40 |
4500040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
4500139 |
1 |
BASE PIN NUT |
140 |
4500140 |
1 |
BASE PIN SCREW |
143 |
4500143 |
1 |
EJECTOR ROD TUBE |
144 |
4500144 |
1 |
EJECTOR ROD TUBE SCREW |
219 |
A4500219 |
1 |
EJECTOR 4.3/4″ .45LC ASSEMBLY STAINLESS STEEL |
444 |
4500444 |
1 |
FIRING PIN BEARING |
692 |
0400692 |
1 |
HAND PIN SCREW |
4522 |
CATTLEMAN REV.Q.D. 7.1/2″ .45LC STAINLESS STEEL CAT.1520 (SQUARE NOTCH VERSION) |
7.1/2” |
45LC |
N. |
Code No. |
Q.ty |
Description |
1 |
A4500001 |
1 |
SAA STAINLESS STEEL FRAME ASSEMBLY |
2 |
A4500002 |
1 |
SAA STAINLESS STEEL HAMMER ASSEMBLY |
3 |
4502003 |
1 |
BARREL 7.1/2″ .45LC |
5 |
4500005 |
1 |
CYLINDER .45LC |
7 |
0400007 |
1 |
HAND |
8 |
4500008 |
1 |
BACKSTRAP |
10 |
4500010 |
1 |
TRIGGER |
11 |
0000011 |
1 |
GRIP |
12 |
0400012 |
1 |
BOLT |
15 |
4500015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
4500019 |
1 |
SEAR AND BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
4500021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
4500026 |
1 |
TRIGGERGUARD IN STEEL |
31 |
4500031 |
2 |
TRIGGERGUARD SCREW |
32 |
4500032 |
4 |
REAR BACKSTRAP SCREW |
35 |
4500035 |
1 |
BOLT SPRING SCREW |
36 |
4500036 |
1 |
MAIN SPRING SCREW |
37 |
4500037 |
1 |
HAMMER SCREW |
38 |
4500038 |
1 |
TRIGGER SCREW |
40 |
4500040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
4500139 |
1 |
BASE PIN NUT |
140 |
4500140 |
1 |
BASE PIN SCREW |
143 |
4500143 |
1 |
EJECTOR ROD TUBE |
144 |
4500144 |
1 |
EJECTOR ROD TUBE SCREW |
219 |
A4500219 |
1 |
EJECTOR 4.3/4″ .45LC ASSEMBLY STAINLESS STEEL |
444 |
4500444 |
1 |
FIRING PIN BEARING |
692 |
0400692 |
1 |
HAND PIN SCREW |
4523 |
CATTLEMAN REV.Q.D. 4.3/4″ .357M. STAINLESS STEEL CAT.1521 (SQUARE NOTCH VERSION) |
4.3/4” |
357MAG |
N. |
Code No. |
Q.ty |
Description |
1 |
A4500001 |
1 |
SAA STAINLESS STEEL FRAME ASSEMBLY |
2 |
A4500002 |
1 |
SAA STAINLESS STEEL HAMMER ASSEMBLY |
3 |
4503003 |
1 |
BARREL 4.3/4″ .357M |
5 |
4503005 |
1 |
CYLINDER .357M. |
7 |
0400007 |
1 |
HAND |
8 |
4500008 |
1 |
BACKSTRAP |
10 |
4500010 |
1 |
TRIGGER |
11 |
0000011 |
1 |
GRIP |
12 |
0400012 |
1 |
BOLT |
15 |
4503015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
4500019 |
1 |
SEAR AND BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
4500021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
4500026 |
1 |
TRIGGERGUARD IN STEEL |
31 |
4500031 |
2 |
TRIGGERGUARD SCREW |
32 |
4500032 |
4 |
REAR BACKSTRAP SCREW |
35 |
4500035 |
1 |
BOLT SPRING SCREW |
36 |
4500036 |
1 |
MAIN SPRING SCREW |
37 |
4500037 |
1 |
HAMMER SCREW |
38 |
4500038 |
1 |
TRIGGER SCREW |
40 |
4500040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
4500139 |
1 |
BASE PIN NUT |
140 |
4500140 |
1 |
BASE PIN SCREW |
143 |
4500143 |
1 |
EJECTOR ROD TUBE |
144 |
4500144 |
1 |
EJECTOR ROD TUBE SCREW |
219 |
A4503219 |
1 |
EJECTOR 4.3/4″ .357MG ASSEMBLY STAINLESS STEEL |
444 |
4500444 |
1 |
FIRING PIN BEARING |
692 |
0400692 |
1 |
HAND PIN SCREW |
4524 |
CATTLEMAN REV.Q.D. 5.1/2″ .357M. STAINLESS STEEL CAT.1522 (SQUARE NOTCH VERSION) |
5.1/2” |
357MAG |
N. |
Code No. |
Q.ty |
Description |
1 |
A4500001 |
1 |
SAA STAINLESS STEEL FRAME ASSEMBLY |
2 |
A4500002 |
1 |
SAA STAINLESS STEEL HAMMER ASSEMBLY |
3 |
4504003 |
1 |
BARREL 5.1/2″357M. |
5 |
4503005 |
1 |
CYLINDER .357M. |
7 |
0400007 |
1 |
HAND |
8 |
4500008 |
1 |
BACKSTRAP |
10 |
4500010 |
1 |
TRIGGER |
11 |
0000011 |
1 |
GRIP |
12 |
0400012 |
1 |
BOLT |
15 |
4503015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
4500019 |
1 |
SEAR AND BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
4500021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
4500026 |
1 |
TRIGGERGUARD IN STEEL |
31 |
4500031 |
2 |
TRIGGERGUARD SCREW |
32 |
4500032 |
4 |
REAR BACKSTRAP SCREW |
35 |
4500035 |
1 |
BOLT SPRING SCREW |
36 |
4500036 |
1 |
MAIN SPRING SCREW |
37 |
4500037 |
1 |
HAMMER SCREW |
38 |
4500038 |
1 |
TRIGGER SCREW |
40 |
4500040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
4500139 |
1 |
BASE PIN NUT |
140 |
4500140 |
1 |
BASE PIN SCREW |
143 |
4500143 |
1 |
EJECTOR ROD TUBE |
144 |
4500144 |
1 |
EJECTOR ROD TUBE SCREW |
219 |
A4503219 |
1 |
EJECTOR 4.3/4″ .357MG ASSEMBLY STAINLESS STEEL |
444 |
4500444 |
1 |
FIRING PIN BEARING |
692 |
0400692 |
1 |
HAND PIN SCREW |
4525 |
CATTLEMAN REV.Q.D. 7.1/2″ .357M. STAINLESS STEEL CAT.1523 (SQUARE NOTCH VERSION) |
7.1/2” |
357MAG |
N. |
Code No. |
Q.ty |
Description |
1 |
A4500001 |
1 |
SAA STAINLESS STEEL FRAME ASSEMBLY |
2 |
A4500002 |
1 |
SAA STAINLESS STEEL HAMMER ASSEMBLY |
3 |
4505003 |
1 |
BARREL 7.1/2″ .357M. |
5 |
4503005 |
1 |
CYLINDER .357M. |
7 |
0400007 |
1 |
HAND |
8 |
4500008 |
1 |
BACKSTRAP |
10 |
4500010 |
1 |
TRIGGER |
11 |
0000011 |
1 |
GRIP |
12 |
0400012 |
1 |
BOLT |
15 |
4503015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
4500019 |
1 |
SEAR AND BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
4500021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
4500026 |
1 |
TRIGGERGUARD IN STEEL |
31 |
4500031 |
2 |
TRIGGERGUARD SCREW |
32 |
4500032 |
4 |
REAR BACKSTRAP SCREW |
35 |
4500035 |
1 |
BOLT SPRING SCREW |
36 |
4500036 |
1 |
MAIN SPRING SCREW |
37 |
4500037 |
1 |
HAMMER SCREW |
38 |
4500038 |
1 |
TRIGGER SCREW |
40 |
4500040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
4500139 |
1 |
BASE PIN NUT |
140 |
4500140 |
1 |
BASE PIN SCREW |
143 |
4500143 |
1 |
EJECTOR ROD TUBE |
144 |
4500144 |
1 |
EJECTOR ROD TUBE SCREW |
219 |
A4503219 |
1 |
EJECTOR 4.3/4″ .357MG ASSEMBLY STAINLESS STEEL |
444 |
4500444 |
1 |
FIRING PIN BEARING |
692 |
0400692 |
1 |
HAND PIN SCREW |
4600 |
CATTLEMAN REV.Q.D. 4.3/4″ .45LC STEEL CAT.13728 FAST SHOT VERSION |
4.3/4” |
45LC |
N. |
Code No. |
Q.ty |
Description |
1 |
A4100001 |
1 |
CATTLEMAN FRAME ASSEMBLY |
2 |
A4600002 |
1 |
SAA FAST SHOT HAMMER WITH SAFETY ASSEMBLY |
3 |
0410003 |
1 |
BARREL 4.3/4″ .45LC |
5 |
0410005 |
1 |
CYLINDER .45LC |
7 |
0400007 |
1 |
HAND |
8 |
0047008 |
1 |
STEEL CIVIL BACKSTRAP |
10 |
0400010 |
1 |
TRIGGER |
11 |
4600011 |
1 |
GRIP |
12 |
0400012 |
1 |
BOLT |
15 |
0940015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0360026 |
1 |
STEEL TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0400143 |
1 |
EJECTOR TUBE |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
187 |
0400187 |
1 |
BASE PIN BUSHING |
219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
692 |
0400692 |
1 |
HAND PIN SCREW |
4601 |
CATTLEMAN REV.Q.D. 4.3/4″ .44/40 STEEL CAT.13727 FAST SHOT VERSION |
4.3/4” |
44-40 |
N. |
Code No. |
Q.ty |
Description |
1 |
A4100001 |
1 |
CATTLEMAN FRAME ASSEMBLY |
3 |
0420003 |
1 |
BARREL 4.3/4″ .44/40 |
5 |
0420005 |
1 |
CYLINDER .44/40 |
7 |
0400007 |
1 |
HAND |
8 |
0047008 |
1 |
STEEL CIVIL BACKSTRAP |
10 |
0400010 |
1 |
TRIGGER |
11 |
4600011 |
1 |
GRIP |
12 |
0400012 |
1 |
BOLT |
15 |
0940015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0360026 |
1 |
STEEL TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0400143 |
1 |
EJECTOR TUBE |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
187 |
0400187 |
1 |
BASE PIN BUSHING |
219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
692 |
0400692 |
1 |
HAND PIN SCREW |
4602 |
CATTLEMAN REV.Q.D. 5.1/2″ .45LC STEEL CAT.13231 FAST SHOT VERSION |
5.1/2″ |
45LC |
N. |
Code No. |
Q.ty |
Description |
1 |
A4100001 |
1 |
CATTLEMAN FRAME ASSEMBLY |
2 |
A4600002 |
1 |
SAA FAST SHOT HAMMER WITH SAFETY ASSEMBLY |
3 |
0411003 |
1 |
BARREL 5.1/2″ |
5 |
0410005 |
1 |
CYLINDER .45LC |
7 |
0400007 |
1 |
HAND |
8 |
0047008 |
1 |
STEEL CIVIL BACKSTRAP |
10 |
0400010 |
1 |
TRIGGER |
11 |
4600011 |
1 |
GRIP |
12 |
0400012 |
1 |
BOLT |
15 |
0940015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0360026 |
1 |
STEEL TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0400143 |
1 |
EJECTOR TUBE |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
187 |
0400187 |
1 |
BASE PIN BUSHING |
219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
692 |
0400692 |
1 |
HAND PIN SCREW |
4603 |
CATTLEMAN REV.Q.D. 5.1/2″ .44/40 STEEL CAT.13230 FAST SHOT VERSION |
5.1/2″ |
44-40 |
N. |
Code No. |
Q.ty |
Description |
1 |
A4100001 |
1 |
CATTLEMAN FRAME ASSEMBLY |
2 |
A4600002 |
1 |
SAA FAST SHOT HAMMER WITH SAFETY ASSEMBLY |
3 |
0421003 |
1 |
BARREL 5.1/2″ .44/40 |
5 |
0420005 |
1 |
CYLINDER .44/40 |
7 |
0400007 |
1 |
HAND |
8 |
0047008 |
1 |
STEEL CIVIL BACKSTRAP |
10 |
0400010 |
1 |
TRIGGER |
11 |
4600011 |
1 |
GRIP |
12 |
0400012 |
1 |
BOLT |
15 |
0940015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0360026 |
1 |
STEEL TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0400143 |
1 |
EJECTOR TUBE |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
187 |
0400187 |
1 |
BASE PIN BUSHING |
219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
692 |
0400692 |
1 |
HAND PIN SCREW |
4610 |
CATTLEMAN REV.Q.D. 4.3/4″ .45LC STEEL CAT.13728 FAST DRAW VERSION |
4.3/4” |
45LC |
N. |
Code No. |
Q.ty |
Description |
1 |
A4100001 |
1 |
CATTLEMAN FRAME ASSEMBLY |
2 |
A0400002 |
1 |
SAA HAMMER WITH SAFETY ASSEMBLY |
3 |
0410003 |
1 |
BARREL 4.3/4″ .45LC |
5 |
0410005 |
1 |
CYLINDER .45LC |
7 |
0400007 |
1 |
HAND |
8 |
0005008 |
1 |
STEEL BACKSTRAP |
10 |
0701010 |
1 |
TRIGGER |
11 |
0005011 |
1 |
GRIPS |
12 |
0400012 |
1 |
BOLT |
15 |
0940015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0005026 |
1 |
STEEL TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0400143 |
1 |
EJECTOR TUBE |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
187 |
0400187 |
1 |
BASE PIN BUSHING |
219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
692 |
0400692 |
1 |
HAND PIN SCREW |
4611 |
CATTLEMAN REV.Q.D. 5.1/2″ .45LC STEEL CAT.13231 FAST DRAW VERSION |
5.1/2″ |
45LC |
N. |
Code No. |
Q.ty |
Description |
1 |
A4100001 |
1 |
CATTLEMAN FRAME ASSEMBLY |
2 |
A0400002 |
1 |
SAA HAMMER WITH SAFETY ASSEMBLY |
3 |
0411003 |
1 |
BARREL 5.1/2″ |
5 |
0410005 |
1 |
CYLINDER .45LC |
7 |
0400007 |
1 |
HAND |
8 |
0005008 |
1 |
STEEL BACKSTRAP |
10 |
0701010 |
1 |
TRIGGER |
11 |
0005011 |
1 |
GRIPS |
12 |
0400012 |
1 |
BOLT |
15 |
0940015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0005026 |
1 |
STEEL TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0400143 |
1 |
EJECTOR TUBE |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
187 |
0400187 |
1 |
BASE PIN BUSHING |
219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
692 |
0400692 |
1 |
HAND PIN SCREW |
4612 |
CATTLEMAN REV.Q.D. 4.3/4″ .357M. STEEL CAT.1521 FAST DRAW VERSION |
4.3/4” |
357MAG |
N. |
Code No. |
Q.ty |
Description |
1 |
A4100001 |
1 |
CATTLEMAN FRAME ASSEMBLY |
2 |
A0400002 |
1 |
SAA HAMMER WITH SAFETY ASSEMBLY |
3 |
0400003 |
1 |
BARREL 4.3/4″ .357MAG/38SP. |
5 |
0400005 |
1 |
CYLINDER .357MAG |
7 |
0400007 |
1 |
HAND |
8 |
0005008 |
1 |
STEEL BACKSTRAP |
10 |
0701010 |
1 |
TRIGGER |
11 |
0005011 |
1 |
GRIPS |
12 |
0400012 |
1 |
BOLT |
15 |
0946015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0005026 |
1 |
STEEL TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0400143 |
1 |
EJECTOR TUBE |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
187 |
0400187 |
1 |
BASE PIN BUSHING |
219 |
A0400219 |
1 |
SAA EJECTOR N.M.4.3/4″.357MG ASS. |
692 |
0400692 |
1 |
HAND PIN SCREW |
4613 |
CATTLEMAN REV.Q.D. 5.1/2″ .357M. STEEL CAT.1522 FAST DRAW VERSION |
5.1/2” |
357MAG |
N. |
Code No. |
Q.ty |
Description |
1 |
A4100001 |
1 |
CATTLEMAN FRAME ASSEMBLY |
2 |
A0400002 |
1 |
SAA HAMMER WITH SAFETY ASSEMBLY |
3 |
0401003 |
1 |
BARREL 5.1/2″ .357MAG/38SP. |
5 |
0400005 |
1 |
CYLINDER .357MAG |
7 |
0400007 |
1 |
HAND |
8 |
0005008 |
1 |
STEEL BACKSTRAP |
10 |
0701010 |
1 |
TRIGGER |
11 |
0005011 |
1 |
GRIPS |
12 |
0400012 |
1 |
BOLT |
15 |
0946015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0005026 |
1 |
STEEL TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
135 |
4500135 |
1 |
EJECTOR SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0400143 |
1 |
EJECTOR TUBE |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
187 |
0400187 |
1 |
BASE PIN BUSHING |
219 |
A0400219 |
1 |
SAA EJECTOR N.M.4.3/4″.357MG ASS. |
692 |
0400692 |
1 |
HAND PIN SCREW |
4614 |
CATTLEMAN REV.Q.D. 3.1/2″ .45LC STEEL CAT.8276 FAST DRAW VERSION |
3.1/2″ |
45LC |
N. |
Code No. |
Q.ty |
Description |
1 |
A4100001 |
1 |
CATTLEMAN FRAME ASSEMBLY |
2 |
A0400002 |
1 |
SAA HAMMER WITH SAFETY ASSEMBLY |
3 |
0346003 |
1 |
SA BARREL 3.1/2″ .45 |
5 |
0410005 |
1 |
CYLINDER .45LC |
7 |
0400007 |
1 |
HAND |
8 |
0005008 |
1 |
STEEL BACKSTRAP |
10 |
0701010 |
1 |
TRIGGER |
11 |
0005011 |
1 |
GRIPS |
12 |
0400012 |
1 |
BOLT |
15 |
0940015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0005026 |
1 |
STEEL TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
135 |
0338135 |
1 |
EJECTOR SPRING 3.1/2″ |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0338143 |
1 |
EJECTOR ROD TUBE 3.1/2″ |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
187 |
0400187 |
1 |
BASE PIN BUSHING |
219 |
A0338219 |
1 |
SAA EJECTOR N.M. 3.1/2″ .45LC ASSEMBLY |
692 |
0400692 |
1 |
HAND PIN SCREW |
4615 |
CATTLEMAN REV.Q.D. 3.1/2″ .357M. STEEL CAT.8273 FAST DRAW VERSION |
3.1/2” |
357MAG |
N. |
Code No. |
Q.ty |
Description |
1 |
A4100001 |
1 |
CATTLEMAN FRAME ASSEMBLY |
2 |
A0400002 |
1 |
SAA HAMMER WITH SAFETY ASSEMBLY |
3 |
0340003 |
1 |
SA BARREL 3.1/2″ .357MAG |
5 |
0400005 |
1 |
CYLINDER .357MAG |
7 |
0400007 |
1 |
HAND |
8 |
0005008 |
1 |
STEEL BACKSTRAP |
10 |
0701010 |
1 |
TRIGGER |
11 |
0005011 |
1 |
GRIPS |
12 |
0400012 |
1 |
BOLT |
15 |
0946015 |
1 |
FRONT SIGHT |
18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
20 |
0400020 |
1 |
MAINSPRING |
21 |
0400021 |
1 |
BASE PIN |
22 |
0400022 |
1 |
HAND PIN |
26 |
0005026 |
1 |
STEEL TRIGGERGUARD |
31 |
0000031 |
2 |
TRIGGERGUARD SCREW |
32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
35 |
0000035 |
1 |
SCREW |
36 |
0000036 |
1 |
MAIN SPRING SCREW |
37 |
0400037 |
1 |
HAMMER SCREW |
38 |
0000038 |
1 |
TRIGGER SCREW |
40 |
0000040 |
1 |
BOLT SCREW |
135 |
0338135 |
1 |
EJECTOR SPRING 3.1/2″ |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
143 |
0338143 |
1 |
EJECTOR ROD TUBE 3.1/2″ |
144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
187 |
0400187 |
1 |
BASE PIN BUSHING |
219 |
A0340219 |
1 |
SAA EJECTOR N.M. 3.1/2″ .357MAG ASSEMBLY |
692 |
0400692 |
1 |
HAND PIN SCREW |
