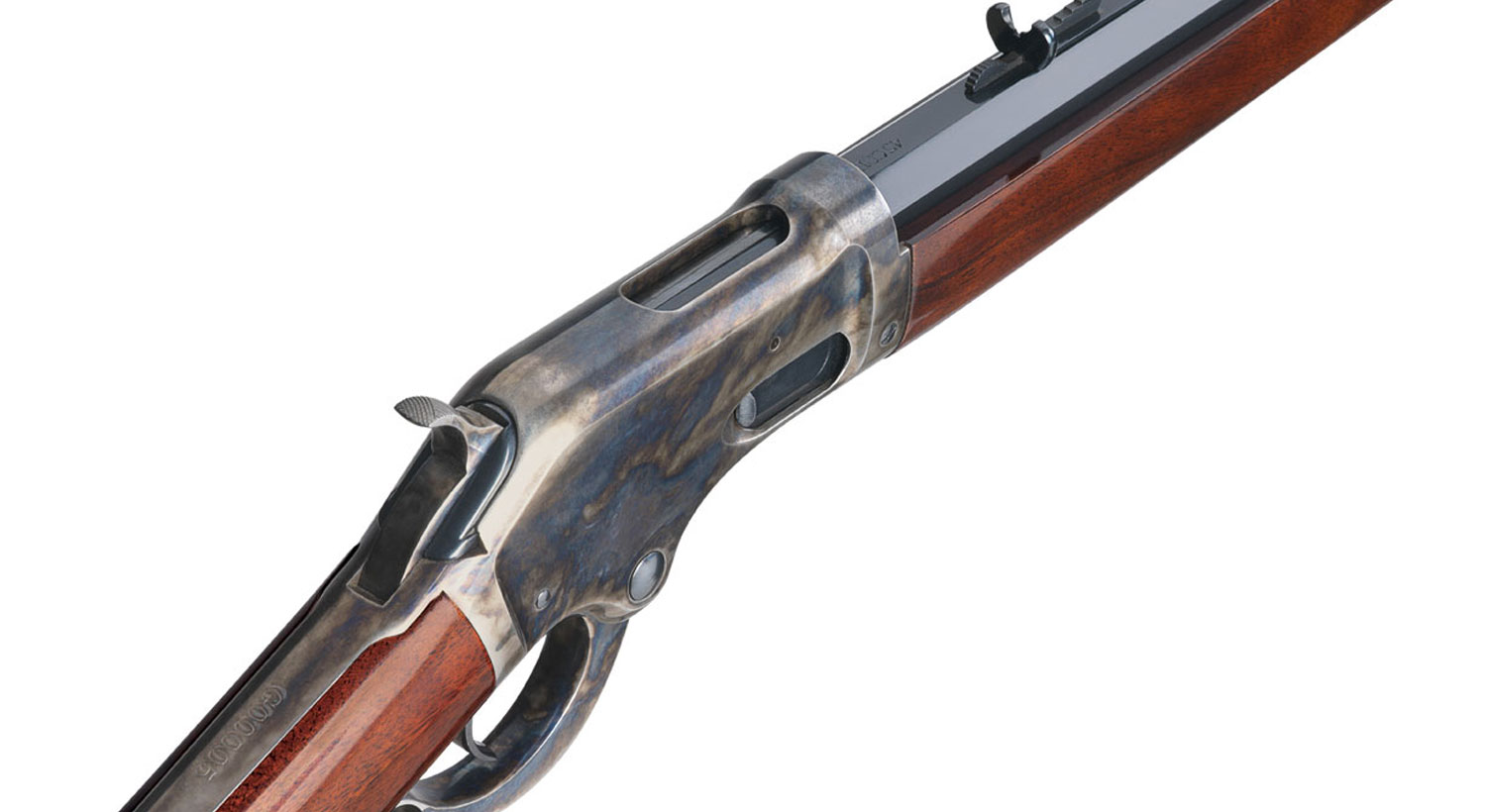

1883 MODEL LEVER ACTION RIfLE The 1883 Colt Burgess lever action made from ’83 to ’85 represents Colt’s lone attempt to compete with Winchester for the lever action rifle market. Colt’s initiative resulted in 6403 rifles. Manufacture of the Colt Burgess ceased early in 1885 only 21 months following its introduction. The model gun for the Colt Burgess is exhibited in the Colt Collection of the Connecticut State Library. With such a small production the Burgess is one of the rarer models of Colt weapons and has considerable Collector’s appeal. Collectors have nicknamed the Colt lever action the “Burgess” after its inventor Andrew Burgess. Burgess was a well known civil war photographer designer of fire alarms and a prolific designer of firearms. He had nearly 600 firearms patents to his credit. Only three engraved pieces were made and one of these (serial n°285) was presented to William F. ( Buffalo Bill) Cody. On the side of the frame is a motif of Cody shooting a buffalo from horseback using a Colt Burgess rifle. So the fact that Buffalo Bill Cody owned one of these guns adds to their color and appeal as does the overall handsome design and the lever operated action. Original price sheets from Colt and Winchester show the Winchester 1873 carbine was priced at $17 50 whereas the Colt Burgess carbine was priced at $24 oo. According to tradition Winchester did not take kindly to the intrusion and developed a few revolver designs which would have then been in direct competition with Colt’s mainstay products. Before long a deal was reached and Winchester agreed to stay out of the evolver business.
FinishesTechnicalParts and Schematics
000: |
STANDARD BLUE |
A01: |
ANTIQUE PATINA FINISH OLD WEST RIFLES |
C03: |
CHARCOAL BLUE |
W03: |
WHITE FINISH |
G03: |
CHECKERING ON FOREND ONLY BY HAND |
G04: |
STOCK AND FOREND CHECKERED BY HAND |
G05: |
HAND RUBBED OIL FINISH ON DELUXE WOOD |
G12: |
SUPERIOR OIL FINISH |
G28: |
CHECKERING ON STOCK ONLY BY HAND |
G33: |
CHECKERING ON FOREND ONLY BY LASER |
G34: |
CHECKERING ON STOCK ONLY BY LASER |
G35: |
STOCK AND FOREND CHECKERED BY LASER |
Caliber: |
.44/40 – .45LC |
Length of Barrel: |
20″ – 25½” |
Overall Length: |
bbl.25½” 42.90″ |
Weight: |
bbl.25½” 8.48 lbs |
Barrel: |
Forged steel |
Frame: |
Forged steel and color case |
Barrel Shape: |
carbine ROUND TAPERED – rifle ROUND TAPERED or OCTAGONAL TAPERED |
Stock: |
Walnut |
Forend: |
Walnut |
Item |
Model |
Barrel |
Length cal. |
2600 |
1883 BURGESS MOD.RIFLE 20″ .45LC CAT.16833 |
20″ |
45LC |
N. |
Code No. |
Q.ty |
Description |
1 |
2600001 |
1 |
FRAME |
2 |
2600002 |
1 |
HAMMER |
3 |
2600003 |
1 |
BARREL .45LC 20″ |
7 |
2600007 |
1 |
CARTRIDGE CARRIER |
15 |
0202015 |
1 |
SIGHT |
19 |
2600019 |
1 |
TRIGGER SPRING |
20 |
2600020 |
1 |
MAINSPRING |
26 |
2600026 |
1 |
TRIGGERGUARD |
35 |
2600035 |
1 |
TRIGGER SPRING SCREW |
36 |
2600036 |
1 |
MAINSPRING SCREW |
39 |
2600039 |
1 |
LEVER PIN SCREW |
50 |
2600050 |
1 |
BREECH BLOCK PISTON PIN |
55 |
0242055 |
1 |
REAR |
57 |
2600057 |
1 |
BUTT STOCK |
58 |
0242058 |
1 |
BUTT PLATE |
61 |
0242061 |
1 |
REAR SIGHT |
62 |
0200062 |
3 |
BUTT PLATE SCREW |
63 |
2600063 |
1 |
TANG SCREW |
68 |
2600068 |
1 |
FOREND 20″ |
78 |
2600078 |
1 |
CARTRIDGE STOP |
79 |
2600079 |
1 |
EXTRACTOR |
87 |
2600087 |
1 |
TRIGGER |
88 |
2600088 |
1 |
PLAIN SEAR |
89 |
2600089 |
1 |
LEVER |
91 |
2600091 |
1 |
SAFETY BAR |
95 |
2600095 |
1 |
FIRING PIN SPRING |
96 |
0230096 |
1 |
MAGAZINE SPRING |
97 |
2600097 |
1 |
BREECH BLOCK |
98 |
2600098 |
1 |
FIRING PIN |
105 |
2600105 |
1 |
CAMME PIN |
107 |
2600107 |
1 |
LEVER PIN |
108 |
2600108 |
1 |
EXTRACTOR PIN |
111 |
2600111 |
1 |
SAFETY BAR PIN |
112 |
0200112 |
1 |
HAMMER LINK PIN |
113 |
2600113 |
1 |
MAGAZINE FOLLOWER |
114 |
0230114 |
1 |
MAGAZINE TUBE PLUG |
115 |
0200115 |
1 |
STIRRUP |
118 |
2600118 |
1 |
MAGAZINE TUBE 20″ |
127 |
2600127 |
1 |
LADLE |
128 |
2600128 |
1 |
LADLE SCREW |
145 |
0400145 |
1 |
GATE CATCH SCREW |
167 |
2600167 |
1 |
TRIGGEGUARG SCREW |
205 |
2600205 |
1 |
CAMME |
216 |
0242216 |
1 |
FOREND PROTECTION |
225 |
0202225 |
1 |
FOREND PROTECTION BEARING |
237 |
2600237 |
1 |
LEVER HOOK SPRING |
238 |
2600238 |
1 |
HOOK LEVER PIN |
245 |
2600245 |
1 |
DISTANCE RING |
247 |
2600247 |
1 |
BREECH BLOCK PISTON SPRING |
275 |
0202275 |
1 |
MAGAZINE TUBE BEARING |
281 |
0202281 |
1 |
MAGAZINE TUBE BEARING PIN |
283 |
0202283 |
2 |
FOREND PROTECTION SCREW |
284 |
0240284 |
1 |
PROTECTION RUNNING SPHERE |
316 |
2600316 |
1 |
SAFETY SPRING |
449 |
2600449 |
1 |
LEVER PIN |
542 |
2600542 |
1 |
LEVER HOOK |
635 |
0850635 |
1 |
HAND SPRING PIN |
659 |
0850659 |
1 |
HINGE PIN PEG |
692 |
0400692 |
2 |
HAND PIN SCREW |
707 |
2600707 |
1 |
LADLE SPRING |
711 |
2600711 |
1 |
CARTRIDGE STOP SPRING |
713 |
7200713 |
2 |
MAIN SPRING |
717 |
2600717 |
1 |
FIRING PIN SCREW |
726 |
2600726 |
1 |
BREECH BLOCK PISTON |
738 |
2600738 |
1 |
PLUG FRAME SCREW |
754 |
2600754 |
1 |
LADLE PIN |
755 |
2600755 |
1 |
LADLE SUPPORT |
756 |
2600756 |
1 |
CARTRIDGE CARRIER STOP NUT |
759 |
2600759 |
1 |
LEVER SPHERE SPRING |
760 |
2600760 |
1 |
CARTRIDGE CARRIER SPHERE |
761 |
2600761 |
1 |
CARTRIDGE CARRIER SPHERE SPRING |
2601 |
1883 BURGESS MOD.RIFLE 20″ .44-40 CAT.16831 |
20″ |
44-40 |
N. |
Code No. |
Q.ty |
Description |
1 |
2600001 |
1 |
FRAME |
2 |
2600002 |
1 |
HAMMER |
3 |
2601003 |
1 |
BARREL .44-40 20″ |
7 |
2600007 |
1 |
CARTRIDGE CARRIER |
15 |
0202015 |
1 |
SIGHT |
19 |
2600019 |
1 |
TRIGGER SPRING |
20 |
2600020 |
1 |
MAINSPRING |
26 |
2600026 |
1 |
TRIGGERGUARD |
35 |
2600035 |
1 |
TRIGGER SPRING SCREW |
36 |
2600036 |
1 |
MAINSPRING SCREW |
39 |
2600039 |
1 |
LEVER PIN SCREW |
50 |
2600050 |
1 |
BREECH BLOCK PISTON PIN |
55 |
0242055 |
1 |
REAR |
57 |
2600057 |
1 |
BUTT STOCK |
58 |
0242058 |
1 |
BUTT PLATE |
61 |
0242061 |
1 |
REAR SIGHT |
62 |
0200062 |
3 |
BUTT PLATE SCREW |
63 |
2600063 |
1 |
TANG SCREW |
68 |
2600068 |
1 |
FOREND 20″ |
78 |
2600078 |
1 |
CARTRIDGE STOP |
79 |
2600079 |
1 |
EXTRACTOR |
87 |
2600087 |
1 |
TRIGGER |
88 |
2600088 |
1 |
PLAIN SEAR |
89 |
2600089 |
1 |
LEVER |
91 |
2600091 |
1 |
SAFETY BAR |
95 |
2600095 |
1 |
FIRING PIN SPRING |
96 |
0230096 |
1 |
MAGAZINE SPRING |
97 |
2600097 |
1 |
BREECH BLOCK |
98 |
2600098 |
1 |
FIRING PIN |
105 |
2600105 |
1 |
CAMME PIN |
107 |
2600107 |
1 |
LEVER PIN |
108 |
2600108 |
1 |
EXTRACTOR PIN |
111 |
2600111 |
1 |
SAFETY BAR PIN |
112 |
0200112 |
1 |
HAMMER LINK PIN |
113 |
2600113 |
1 |
MAGAZINE FOLLOWER |
114 |
0230114 |
1 |
MAGAZINE TUBE PLUG |
115 |
0200115 |
1 |
STIRRUP |
118 |
2600118 |
1 |
MAGAZINE TUBE 20″ |
127 |
2600127 |
1 |
LADLE |
128 |
2600128 |
1 |
LADLE SCREW |
145 |
0400145 |
1 |
GATE CATCH SCREW |
167 |
2600167 |
1 |
TRIGGEGUARG SCREW |
205 |
2600205 |
1 |
CAMME |
216 |
0242216 |
1 |
FOREND PROTECTION |
225 |
0202225 |
1 |
FOREND PROTECTION BEARING |
237 |
2600237 |
1 |
LEVER HOOK SPRING |
238 |
2600238 |
1 |
HOOK LEVER PIN |
245 |
2600245 |
1 |
DISTANCE RING |
247 |
2600247 |
1 |
BREECH BLOCK PISTON SPRING |
275 |
0202275 |
1 |
MAGAZINE TUBE BEARING |
281 |
0202281 |
1 |
MAGAZINE TUBE BEARING PIN |
283 |
0202283 |
2 |
FOREND PROTECTION SCREW |
284 |
0240284 |
1 |
PROTECTION RUNNING SPHERE |
316 |
2600316 |
1 |
SAFETY SPRING |
449 |
2600449 |
1 |
LEVER PIN |
542 |
2600542 |
1 |
LEVER HOOK |
635 |
0850635 |
1 |
HAND SPRING PIN |
659 |
0850659 |
1 |
HINGE PIN PEG |
692 |
0400692 |
2 |
HAND PIN SCREW |
707 |
2600707 |
1 |
LADLE SPRING |
711 |
2600711 |
1 |
CARTRIDGE STOP SPRING |
713 |
7200713 |
2 |
MAIN SPRING |
717 |
2600717 |
1 |
FIRING PIN SCREW |
726 |
2600726 |
1 |
BREECH BLOCK PISTON |
738 |
2600738 |
1 |
PLUG FRAME SCREW |
754 |
2600754 |
1 |
LADLE PIN |
755 |
2600755 |
1 |
LADLE SUPPORT |
756 |
2600756 |
1 |
CARTRIDGE CARRIER STOP NUT |
759 |
2600759 |
1 |
LEVER SPHERE SPRING |
760 |
2600760 |
1 |
CARTRIDGE CARRIER SPHERE |
761 |
2600761 |
1 |
CARTRIDGE CARRIER SPHERE SPRING |
2604 |
1883 BURGESS MOD.RIFLE 25.1/2″ .45LC CAT.16834 |
25.1/2″ |
45LC |
N. |
Code No. |
Q.ty |
Description |
1 |
2600001 |
1 |
FRAME |
2 |
2600002 |
1 |
HAMMER |
3 |
2604003 |
1 |
BARREL .45LC 25,1/2″ |
7 |
2600007 |
1 |
CARTRIDGE CARRIER |
15 |
0202015 |
1 |
SIGHT |
19 |
2600019 |
1 |
TRIGGER SPRING |
20 |
2600020 |
1 |
MAINSPRING |
26 |
2600026 |
1 |
TRIGGERGUARD |
35 |
2600035 |
1 |
TRIGGER SPRING SCREW |
36 |
2600036 |
1 |
MAINSPRING SCREW |
39 |
2600039 |
1 |
LEVER PIN SCREW |
50 |
2600050 |
1 |
BREECH BLOCK PISTON PIN |
55 |
0242055 |
1 |
REAR |
57 |
2600057 |
1 |
BUTT STOCK |
58 |
0242058 |
1 |
BUTT PLATE |
61 |
0242061 |
1 |
REAR SIGHT |
62 |
0200062 |
3 |
BUTT PLATE SCREW |
63 |
2600063 |
1 |
TANG SCREW |
68 |
2604068 |
1 |
FOREND 25,1/2″ |
78 |
2600078 |
1 |
CARTRIDGE STOP |
79 |
2600079 |
1 |
EXTRACTOR |
87 |
2600087 |
1 |
TRIGGER |
88 |
2600088 |
1 |
PLAIN SEAR |
89 |
2600089 |
1 |
LEVER |
91 |
2600091 |
1 |
SAFETY BAR |
95 |
2600095 |
1 |
FIRING PIN SPRING |
96 |
0232096 |
1 |
MAGAZINE SPRING |
97 |
2600097 |
1 |
BREECH BLOCK |
98 |
2600098 |
1 |
FIRING PIN |
105 |
2600105 |
1 |
CAMME PIN |
107 |
2600107 |
1 |
LEVER PIN |
108 |
2600108 |
1 |
EXTRACTOR PIN |
111 |
2600111 |
1 |
SAFETY BAR PIN |
112 |
0200112 |
1 |
HAMMER LINK PIN |
113 |
2600113 |
1 |
MAGAZINE FOLLOWER |
114 |
0230114 |
1 |
MAGAZINE TUBE PLUG |
115 |
0200115 |
1 |
STIRRUP |
118 |
2604118 |
1 |
MAGAZINE TUBE 25,1/2″ |
127 |
2600127 |
1 |
LADLE |
128 |
2600128 |
1 |
LADLE SCREW |
145 |
0400145 |
1 |
GATE CATCH SCREW |
167 |
2600167 |
1 |
TRIGGEGUARG SCREW |
205 |
2600205 |
1 |
CAMME |
216 |
0242216 |
1 |
FOREND PROTECTION |
225 |
0202225 |
1 |
FOREND PROTECTION BEARING |
237 |
2600237 |
1 |
LEVER HOOK SPRING |
238 |
2600238 |
1 |
HOOK LEVER PIN |
245 |
2600245 |
1 |
DISTANCE RING |
247 |
2600247 |
1 |
BREECH BLOCK PISTON SPRING |
275 |
0202275 |
1 |
MAGAZINE TUBE BEARING |
281 |
0202281 |
1 |
MAGAZINE TUBE BEARING PIN |
283 |
0202283 |
2 |
FOREND PROTECTION SCREW |
284 |
0240284 |
1 |
PROTECTION RUNNING SPHERE |
316 |
2600316 |
1 |
SAFETY SPRING |
449 |
2600449 |
1 |
LEVER PIN |
542 |
2600542 |
1 |
LEVER HOOK |
635 |
0850635 |
1 |
HAND SPRING PIN |
659 |
0850659 |
1 |
HINGE PIN PEG |
692 |
0400692 |
2 |
HAND PIN SCREW |
707 |
2600707 |
1 |
LADLE SPRING |
711 |
2600711 |
1 |
CARTRIDGE STOP SPRING |
713 |
7200713 |
2 |
MAIN SPRING |
717 |
2600717 |
1 |
FIRING PIN SCREW |
726 |
2600726 |
1 |
BREECH BLOCK PISTON |
738 |
2600738 |
1 |
PLUG FRAME SCREW |
754 |
2600754 |
1 |
LADLE PIN |
755 |
2600755 |
1 |
LADLE SUPPORT |
756 |
2600756 |
1 |
CARTRIDGE CARRIER STOP NUT |
759 |
2600759 |
1 |
LEVER SPHERE SPRING |
760 |
2600760 |
1 |
CARTRIDGE CARRIER SPHERE |
761 |
2600761 |
1 |
CARTRIDGE CARRIER SPHERE SPRING |
2605 |
1883 BURGESS MOD.RIFLE 25.1/2″ .44-40 CAT.16832 |
25.1/2″ |
44-40 |
N. |
Code No. |
Q.ty |
Description |
1 |
2600001 |
1 |
FRAME |
2 |
2600002 |
1 |
HAMMER |
3 |
2605003 |
1 |
BARREL .44-40 25,1/2″ |
7 |
2600007 |
1 |
CARTRIDGE CARRIER |
15 |
0202015 |
1 |
SIGHT |
19 |
2600019 |
1 |
TRIGGER SPRING |
20 |
2600020 |
1 |
MAINSPRING |
26 |
2600026 |
1 |
TRIGGERGUARD |
35 |
2600035 |
1 |
TRIGGER SPRING SCREW |
36 |
2600036 |
1 |
MAINSPRING SCREW |
39 |
2600039 |
1 |
LEVER PIN SCREW |
50 |
2600050 |
1 |
BREECH BLOCK PISTON PIN |
55 |
0242055 |
1 |
REAR |
57 |
2600057 |
1 |
BUTT STOCK |
58 |
0242058 |
1 |
BUTT PLATE |
61 |
0242061 |
1 |
REAR SIGHT |
62 |
0200062 |
3 |
BUTT PLATE SCREW |
63 |
2600063 |
1 |
TANG SCREW |
68 |
2604068 |
1 |
FOREND 25,1/2″ |
78 |
2600078 |
1 |
CARTRIDGE STOP |
79 |
2600079 |
1 |
EXTRACTOR |
87 |
2600087 |
1 |
TRIGGER |
88 |
2600088 |
1 |
PLAIN SEAR |
89 |
2600089 |
1 |
LEVER |
91 |
2600091 |
1 |
SAFETY BAR |
95 |
2600095 |
1 |
FIRING PIN SPRING |
96 |
0232096 |
1 |
MAGAZINE SPRING |
97 |
2600097 |
1 |
BREECH BLOCK |
98 |
2600098 |
1 |
FIRING PIN |
105 |
2600105 |
1 |
CAMME PIN |
107 |
2600107 |
1 |
LEVER PIN |
108 |
2600108 |
1 |
EXTRACTOR PIN |
111 |
2600111 |
1 |
SAFETY BAR PIN |
112 |
0200112 |
1 |
HAMMER LINK PIN |
113 |
2600113 |
1 |
MAGAZINE FOLLOWER |
114 |
0230114 |
1 |
MAGAZINE TUBE PLUG |
115 |
0200115 |
1 |
STIRRUP |
118 |
2604118 |
1 |
MAGAZINE TUBE 25,1/2″ |
127 |
2600127 |
1 |
LADLE |
128 |
2600128 |
1 |
LADLE SCREW |
145 |
0400145 |
1 |
GATE CATCH SCREW |
167 |
2600167 |
1 |
TRIGGEGUARG SCREW |
205 |
2600205 |
1 |
CAMME |
216 |
0242216 |
1 |
FOREND PROTECTION |
225 |
0202225 |
1 |
FOREND PROTECTION BEARING |
237 |
2600237 |
1 |
LEVER HOOK SPRING |
238 |
2600238 |
1 |
HOOK LEVER PIN |
245 |
2600245 |
1 |
DISTANCE RING |
247 |
2600247 |
1 |
BREECH BLOCK PISTON SPRING |
275 |
0202275 |
1 |
MAGAZINE TUBE BEARING |
281 |
0202281 |
1 |
MAGAZINE TUBE BEARING PIN |
283 |
0202283 |
2 |
FOREND PROTECTION SCREW |
284 |
0240284 |
1 |
PROTECTION RUNNING SPHERE |
316 |
2600316 |
1 |
SAFETY SPRING |
449 |
2600449 |
1 |
LEVER PIN |
542 |
2600542 |
1 |
LEVER HOOK |
635 |
0850635 |
1 |
HAND SPRING PIN |
659 |
0850659 |
1 |
HINGE PIN PEG |
692 |
0400692 |
2 |
HAND PIN SCREW |
707 |
2600707 |
1 |
LADLE SPRING |
711 |
2600711 |
1 |
CARTRIDGE STOP SPRING |
713 |
7200713 |
2 |
MAIN SPRING |
717 |
2600717 |
1 |
FIRING PIN SCREW |
726 |
2600726 |
1 |
BREECH BLOCK PISTON |
738 |
2600738 |
1 |
PLUG FRAME SCREW |
754 |
2600754 |
1 |
LADLE PIN |
755 |
2600755 |
1 |
LADLE SUPPORT |
756 |
2600756 |
1 |
CARTRIDGE CARRIER STOP NUT |
759 |
2600759 |
1 |
LEVER SPHERE SPRING |
760 |
2600760 |
1 |
CARTRIDGE CARRIER SPHERE |
761 |
2600761 |
1 |
CARTRIDGE CARRIER SPHERE SPRING |
2620 |
1883 BURGESS MOD.CARBINE 20″ .45LC CAT.16833 |
20″ |
45LC |
N. |
Code No. |
Q.ty |
Description |
1 |
2600001 |
1 |
FRAME |
2 |
2600002 |
1 |
HAMMER |
3 |
2620003 |
1 |
BARREL .45LC 20″ |
7 |
2600007 |
1 |
CARTRIDGE CARRIER |
19 |
2600019 |
1 |
TRIGGER SPRING |
20 |
2600020 |
1 |
MAINSPRING |
26 |
2600026 |
1 |
TRIGGERGUARD |
35 |
2600035 |
1 |
TRIGGER SPRING SCREW |
36 |
2600036 |
1 |
MAINSPRING SCREW |
39 |
2600039 |
1 |
LEVER PIN SCREW |
50 |
2600050 |
1 |
BREECH BLOCK PISTON PIN |
55 |
0242055 |
1 |
REAR |
57 |
2620057 |
1 |
BUTT STOCK |
58 |
0240058 |
1 |
BUTT PLATE |
61 |
0242061 |
1 |
REAR SIGHT |
62 |
0200062 |
3 |
BUTT PLATE SCREW |
63 |
2600063 |
1 |
TANG SCREW |
68 |
2620068 |
1 |
FOREND 20″ |
78 |
2600078 |
1 |
CARTRIDGE STOP |
79 |
2600079 |
1 |
EXTRACTOR |
80 |
0240080 |
1 |
FRONT BAND |
81 |
2620081 |
1 |
FOREND BAND |
87 |
2600087 |
1 |
TRIGGER |
88 |
2600088 |
1 |
PLAIN SEAR |
89 |
2600089 |
1 |
LEVER |
91 |
2600091 |
1 |
SAFETY BAR |
95 |
2600095 |
1 |
FIRING PIN SPRING |
96 |
0230096 |
1 |
MAGAZINE SPRING |
97 |
2600097 |
1 |
BREECH BLOCK |
98 |
2600098 |
1 |
FIRING PIN |
105 |
2600105 |
1 |
CAMME PIN |
107 |
2600107 |
1 |
LEVER PIN |
108 |
2600108 |
1 |
EXTRACTOR PIN |
111 |
2600111 |
1 |
SAFETY BAR PIN |
112 |
0200112 |
1 |
HAMMER LINK PIN |
113 |
2600113 |
1 |
MAGAZINE FOLLOWER |
114 |
0230114 |
1 |
MAGAZINE TUBE PLUG |
115 |
0200115 |
1 |
STIRRUP |
118 |
2600118 |
1 |
MAGAZINE TUBE 20″ |
121 |
0200121 |
1 |
BAND SCREW |
122 |
0200122 |
1 |
FOREND SCREW |
127 |
2600127 |
1 |
LADLE |
128 |
2600128 |
1 |
LADLE SCREW |
145 |
0400145 |
1 |
GATE CATCH SCREW |
167 |
2600167 |
1 |
TRIGGEGUARG SCREW |
205 |
2600205 |
1 |
CAMME |
237 |
2600237 |
1 |
LEVER HOOK SPRING |
238 |
2600238 |
1 |
HOOK LEVER PIN |
245 |
2600245 |
1 |
DISTANCE RING |
247 |
2600247 |
1 |
BREECH BLOCK PISTON SPRING |
284 |
0240284 |
1 |
PROTECTION RUNNING SPHERE |
316 |
2600316 |
1 |
SAFETY SPRING |
449 |
2600449 |
1 |
LEVER PIN |
542 |
2600542 |
1 |
LEVER HOOK |
635 |
0850635 |
1 |
HAND SPRING PIN |
659 |
0850659 |
1 |
HINGE PIN PEG |
692 |
0400692 |
1 |
HAND PIN SCREW |
707 |
2600707 |
1 |
LADLE SPRING |
711 |
2600711 |
1 |
CARTRIDGE STOP SPRING |
713 |
7200713 |
2 |
MAIN SPRING |
717 |
2600717 |
1 |
FIRING PIN SCREW |
726 |
2600726 |
1 |
BREECH BLOCK PISTON |
738 |
2600738 |
1 |
PLUG FRAME SCREW |
754 |
2600754 |
1 |
LADLE PIN |
755 |
2600755 |
1 |
LADLE SUPPORT |
756 |
2600756 |
1 |
CARTRIDGE CARRIER STOP NUT |
759 |
2600759 |
1 |
LEVER SPHERE SPRING |
760 |
2600760 |
1 |
CARTRIDGE CARRIER SPHERE |
761 |
2600761 |
1 |
CARTRIDGE CARRIER SPHERE SPRING |
2621 |
1883 BURGESS MOD.CARBINE 20″ .44-40 CAT.16831 |
20″ |
44-40 |
N. |
Code No. |
Q.ty |
Description |
1 |
2600001 |
1 |
FRAME |
2 |
2600002 |
1 |
HAMMER |
3 |
2621003 |
1 |
BARREL .44-40 20″ |
7 |
2600007 |
1 |
CARTRIDGE CARRIER |
19 |
2600019 |
1 |
TRIGGER SPRING |
20 |
2600020 |
1 |
MAINSPRING |
26 |
2600026 |
1 |
TRIGGERGUARD |
35 |
2600035 |
1 |
TRIGGER SPRING SCREW |
36 |
2600036 |
1 |
MAINSPRING SCREW |
39 |
2600039 |
1 |
LEVER PIN SCREW |
50 |
2600050 |
1 |
BREECH BLOCK PISTON PIN |
55 |
0242055 |
1 |
REAR |
57 |
2620057 |
1 |
BUTT STOCK |
58 |
0240058 |
1 |
BUTT PLATE |
61 |
0242061 |
1 |
REAR SIGHT |
62 |
0200062 |
3 |
BUTT PLATE SCREW |
63 |
2600063 |
1 |
TANG SCREW |
68 |
2620068 |
1 |
FOREND 20″ |
78 |
2600078 |
1 |
CARTRIDGE STOP |
79 |
2600079 |
1 |
EXTRACTOR |
80 |
0240080 |
1 |
FRONT BAND |
81 |
2620081 |
1 |
FOREND BAND |
87 |
2600087 |
1 |
TRIGGER |
88 |
2600088 |
1 |
PLAIN SEAR |
89 |
2600089 |
1 |
LEVER |
91 |
2600091 |
1 |
SAFETY BAR |
95 |
2600095 |
1 |
FIRING PIN SPRING |
96 |
0230096 |
1 |
MAGAZINE SPRING |
97 |
2600097 |
1 |
BREECH BLOCK |
98 |
2600098 |
1 |
FIRING PIN |
105 |
2600105 |
1 |
CAMME PIN |
107 |
2600107 |
1 |
LEVER PIN |
108 |
2600108 |
1 |
EXTRACTOR PIN |
111 |
2600111 |
1 |
SAFETY BAR PIN |
112 |
0200112 |
1 |
HAMMER LINK PIN |
113 |
2600113 |
1 |
MAGAZINE FOLLOWER |
114 |
0230114 |
1 |
MAGAZINE TUBE PLUG |
115 |
0200115 |
1 |
STIRRUP |
118 |
2600118 |
1 |
MAGAZINE TUBE 20″ |
121 |
0200121 |
1 |
BAND SCREW |
122 |
0200122 |
1 |
FOREND SCREW |
127 |
2600127 |
1 |
LADLE |
128 |
2600128 |
1 |
LADLE SCREW |
145 |
0400145 |
1 |
GATE CATCH SCREW |
167 |
2600167 |
1 |
TRIGGEGUARG SCREW |
205 |
2600205 |
1 |
CAMME |
237 |
2600237 |
1 |
LEVER HOOK SPRING |
238 |
2600238 |
1 |
HOOK LEVER PIN |
245 |
2600245 |
1 |
DISTANCE RING |
247 |
2600247 |
1 |
BREECH BLOCK PISTON SPRING |
284 |
0240284 |
1 |
PROTECTION RUNNING SPHERE |
316 |
2600316 |
1 |
SAFETY SPRING |
449 |
2600449 |
1 |
LEVER PIN |
542 |
2600542 |
1 |
LEVER HOOK |
635 |
0850635 |
1 |
HAND SPRING PIN |
659 |
0850659 |
1 |
HINGE PIN PEG |
692 |
0400692 |
1 |
HAND PIN SCREW |
707 |
2600707 |
1 |
LADLE SPRING |
711 |
2600711 |
1 |
CARTRIDGE STOP SPRING |
713 |
7200713 |
2 |
MAIN SPRING |
717 |
2600717 |
1 |
FIRING PIN SCREW |
726 |
2600726 |
1 |
BREECH BLOCK PISTON |
738 |
2600738 |
1 |
PLUG FRAME SCREW |
754 |
2600754 |
1 |
LADLE PIN |
755 |
2600755 |
1 |
LADLE SUPPORT |
756 |
2600756 |
1 |
CARTRIDGE CARRIER STOP NUT |
759 |
2600759 |
1 |
LEVER SPHERE SPRING |
760 |
2600760 |
1 |
CARTRIDGE CARRIER SPHERE |
761 |
2600761 |
1 |
CARTRIDGE CARRIER SPHERE SPRING |
2624 |
1883 BURGESS MOD.CARBINE 25.1/2″.45LC CAT.16834 |
25.1/2″ |
45LC |
N. |
Code No. |
Q.ty |
Description |
1 |
2600001 |
1 |
FRAME |
2 |
2600002 |
1 |
HAMMER |
3 |
2624003 |
1 |
BARREL .45LC 25,1/2″ |
7 |
2600007 |
1 |
CARTRIDGE CARRIER |
15 |
0202015 |
1 |
SIGHT |
19 |
2600019 |
1 |
TRIGGER SPRING |
20 |
2600020 |
1 |
MAINSPRING |
26 |
2600026 |
1 |
TRIGGERGUARD |
35 |
2600035 |
1 |
TRIGGER SPRING SCREW |
36 |
2600036 |
1 |
MAINSPRING SCREW |
39 |
2600039 |
1 |
LEVER PIN SCREW |
50 |
2600050 |
1 |
BREECH BLOCK PISTON PIN |
55 |
0242055 |
1 |
REAR |
57 |
2600057 |
1 |
BUTT STOCK |
58 |
0242058 |
1 |
BUTT PLATE |
61 |
0242061 |
1 |
REAR SIGHT |
62 |
0200062 |
3 |
BUTT PLATE SCREW |
63 |
2600063 |
1 |
TANG SCREW |
68 |
2604068 |
1 |
FOREND 25,1/2″ |
78 |
2600078 |
1 |
CARTRIDGE STOP |
79 |
2600079 |
1 |
EXTRACTOR |
87 |
2600087 |
1 |
TRIGGER |
88 |
2600088 |
1 |
PLAIN SEAR |
89 |
2600089 |
1 |
LEVER |
91 |
2600091 |
1 |
SAFETY BAR |
95 |
2600095 |
1 |
FIRING PIN SPRING |
96 |
0232096 |
1 |
MAGAZINE SPRING |
97 |
2600097 |
1 |
BREECH BLOCK |
98 |
2600098 |
1 |
FIRING PIN |
105 |
2600105 |
1 |
CAMME PIN |
107 |
2600107 |
1 |
LEVER PIN |
108 |
2600108 |
1 |
EXTRACTOR PIN |
111 |
2600111 |
1 |
SAFETY BAR PIN |
112 |
0200112 |
1 |
HAMMER LINK PIN |
113 |
2600113 |
1 |
MAGAZINE FOLLOWER |
114 |
0230114 |
1 |
MAGAZINE TUBE PLUG |
115 |
0200115 |
1 |
STIRRUP |
118 |
2604118 |
1 |
MAGAZINE TUBE 25,1/2″ |
127 |
2600127 |
1 |
LADLE |
128 |
2600128 |
1 |
LADLE SCREW |
145 |
0400145 |
1 |
GATE CATCH SCREW |
167 |
2600167 |
1 |
TRIGGEGUARG SCREW |
205 |
2600205 |
1 |
CAMME |
216 |
0242216 |
1 |
FOREND PROTECTION |
225 |
0202225 |
1 |
FOREND PROTECTION BEARING |
237 |
2600237 |
1 |
LEVER HOOK SPRING |
238 |
2600238 |
1 |
HOOK LEVER PIN |
245 |
2600245 |
1 |
DISTANCE RING |
247 |
2600247 |
1 |
BREECH BLOCK PISTON SPRING |
275 |
0202275 |
1 |
MAGAZINE TUBE BEARING |
281 |
0202281 |
1 |
MAGAZINE TUBE BEARING PIN |
283 |
0202283 |
2 |
FOREND PROTECTION SCREW |
284 |
0240284 |
1 |
PROTECTION RUNNING SPHERE |
316 |
2600316 |
1 |
SAFETY SPRING |
449 |
2600449 |
1 |
LEVER PIN |
542 |
2600542 |
1 |
LEVER HOOK |
635 |
0850635 |
1 |
HAND SPRING PIN |
659 |
0850659 |
1 |
HINGE PIN PEG |
692 |
0400692 |
2 |
HAND PIN SCREW |
707 |
2600707 |
1 |
LADLE SPRING |
711 |
2600711 |
1 |
CARTRIDGE STOP SPRING |
713 |
7200713 |
2 |
MAIN SPRING |
717 |
2600717 |
1 |
FIRING PIN SCREW |
726 |
2600726 |
1 |
BREECH BLOCK PISTON |
738 |
2600738 |
1 |
PLUG FRAME SCREW |
754 |
2600754 |
1 |
LADLE PIN |
755 |
2600755 |
1 |
LADLE SUPPORT |
756 |
2600756 |
1 |
CARTRIDGE CARRIER STOP NUT |
759 |
2600759 |
1 |
LEVER SPHERE SPRING |
760 |
2600760 |
1 |
CARTRIDGE CARRIER SPHERE |
761 |
2600761 |
1 |
CARTRIDGE CARRIER SPHERE SPRING |
2625 |
1883 BURGESS MOD.CARBINE 25.1/2″.44-40 CAT.16832 |
25.1/2″ |
44-40 |
N. |
Code No. |
Q.ty |
Description |
1 |
2600001 |
1 |
FRAME |
2 |
2600002 |
1 |
HAMMER |
3 |
2625003 |
1 |
BARREL .44-40 25,1/2″ |
7 |
2600007 |
1 |
CARTRIDGE CARRIER |
15 |
0202015 |
1 |
SIGHT |
19 |
2600019 |
1 |
TRIGGER SPRING |
20 |
2600020 |
1 |
MAINSPRING |
26 |
2600026 |
1 |
TRIGGERGUARD |
35 |
2600035 |
1 |
TRIGGER SPRING SCREW |
36 |
2600036 |
1 |
MAINSPRING SCREW |
39 |
2600039 |
1 |
LEVER PIN SCREW |
50 |
2600050 |
1 |
BREECH BLOCK PISTON PIN |
55 |
0242055 |
1 |
REAR |
57 |
2600057 |
1 |
BUTT STOCK |
58 |
0242058 |
1 |
BUTT PLATE |
61 |
0242061 |
1 |
REAR SIGHT |
62 |
0200062 |
3 |
BUTT PLATE SCREW |
63 |
2600063 |
1 |
TANG SCREW |
68 |
2604068 |
1 |
FOREND 25,1/2″ |
78 |
2600078 |
1 |
CARTRIDGE STOP |
79 |
2600079 |
1 |
EXTRACTOR |
87 |
2600087 |
1 |
TRIGGER |
88 |
2600088 |
1 |
PLAIN SEAR |
89 |
2600089 |
1 |
LEVER |
91 |
2600091 |
1 |
SAFETY BAR |
95 |
2600095 |
1 |
FIRING PIN SPRING |
96 |
0232096 |
1 |
MAGAZINE SPRING |
97 |
2600097 |
1 |
BREECH BLOCK |
98 |
2600098 |
1 |
FIRING PIN |
105 |
2600105 |
1 |
CAMME PIN |
107 |
2600107 |
1 |
LEVER PIN |
108 |
2600108 |
1 |
EXTRACTOR PIN |
111 |
2600111 |
1 |
SAFETY BAR PIN |
112 |
0200112 |
1 |
HAMMER LINK PIN |
113 |
2600113 |
1 |
MAGAZINE FOLLOWER |
114 |
0230114 |
1 |
MAGAZINE TUBE PLUG |
115 |
0200115 |
1 |
STIRRUP |
118 |
2604118 |
1 |
MAGAZINE TUBE 25,1/2″ |
127 |
2600127 |
1 |
LADLE |
128 |
2600128 |
1 |
LADLE SCREW |
145 |
0400145 |
1 |
GATE CATCH SCREW |
167 |
2600167 |
1 |
TRIGGEGUARG SCREW |
205 |
2600205 |
1 |
CAMME |
216 |
0242216 |
1 |
FOREND PROTECTION |
225 |
0202225 |
1 |
FOREND PROTECTION BEARING |
237 |
2600237 |
1 |
LEVER HOOK SPRING |
238 |
2600238 |
1 |
HOOK LEVER PIN |
245 |
2600245 |
1 |
DISTANCE RING |
247 |
2600247 |
1 |
BREECH BLOCK PISTON SPRING |
275 |
0202275 |
1 |
MAGAZINE TUBE BEARING |
281 |
0202281 |
1 |
MAGAZINE TUBE BEARING PIN |
283 |
0202283 |
2 |
FOREND PROTECTION SCREW |
284 |
0240284 |
1 |
PROTECTION RUNNING SPHERE |
316 |
2600316 |
1 |
SAFETY SPRING |
449 |
2600449 |
1 |
LEVER PIN |
542 |
2600542 |
1 |
LEVER HOOK |
635 |
0850635 |
1 |
HAND SPRING PIN |
659 |
0850659 |
1 |
HINGE PIN PEG |
692 |
0400692 |
2 |
HAND PIN SCREW |
707 |
2600707 |
1 |
LADLE SPRING |
711 |
2600711 |
1 |
CARTRIDGE STOP SPRING |
713 |
7200713 |
2 |
MAIN SPRING |
717 |
2600717 |
1 |
FIRING PIN SCREW |
726 |
2600726 |
1 |
BREECH BLOCK PISTON |
738 |
2600738 |
1 |
PLUG FRAME SCREW |
754 |
2600754 |
1 |
LADLE PIN |
755 |
2600755 |
1 |
LADLE SUPPORT |
756 |
2600756 |
1 |
CARTRIDGE CARRIER STOP NUT |
759 |
2600759 |
1 |
LEVER SPHERE SPRING |
760 |
2600760 |
1 |
CARTRIDGE CARRIER SPHERE |
761 |
2600761 |
1 |
CARTRIDGE CARRIER SPHERE SPRING |
