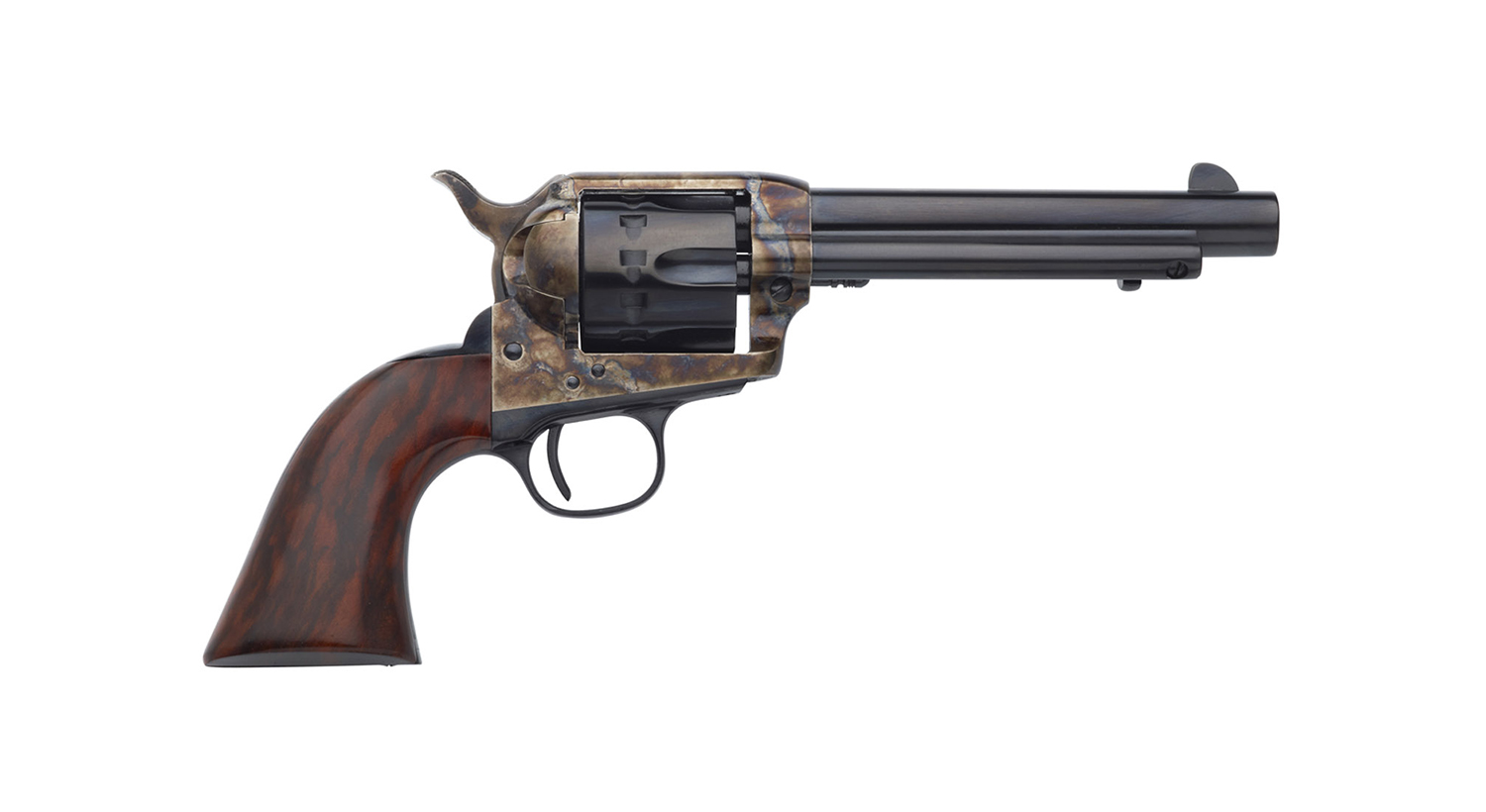

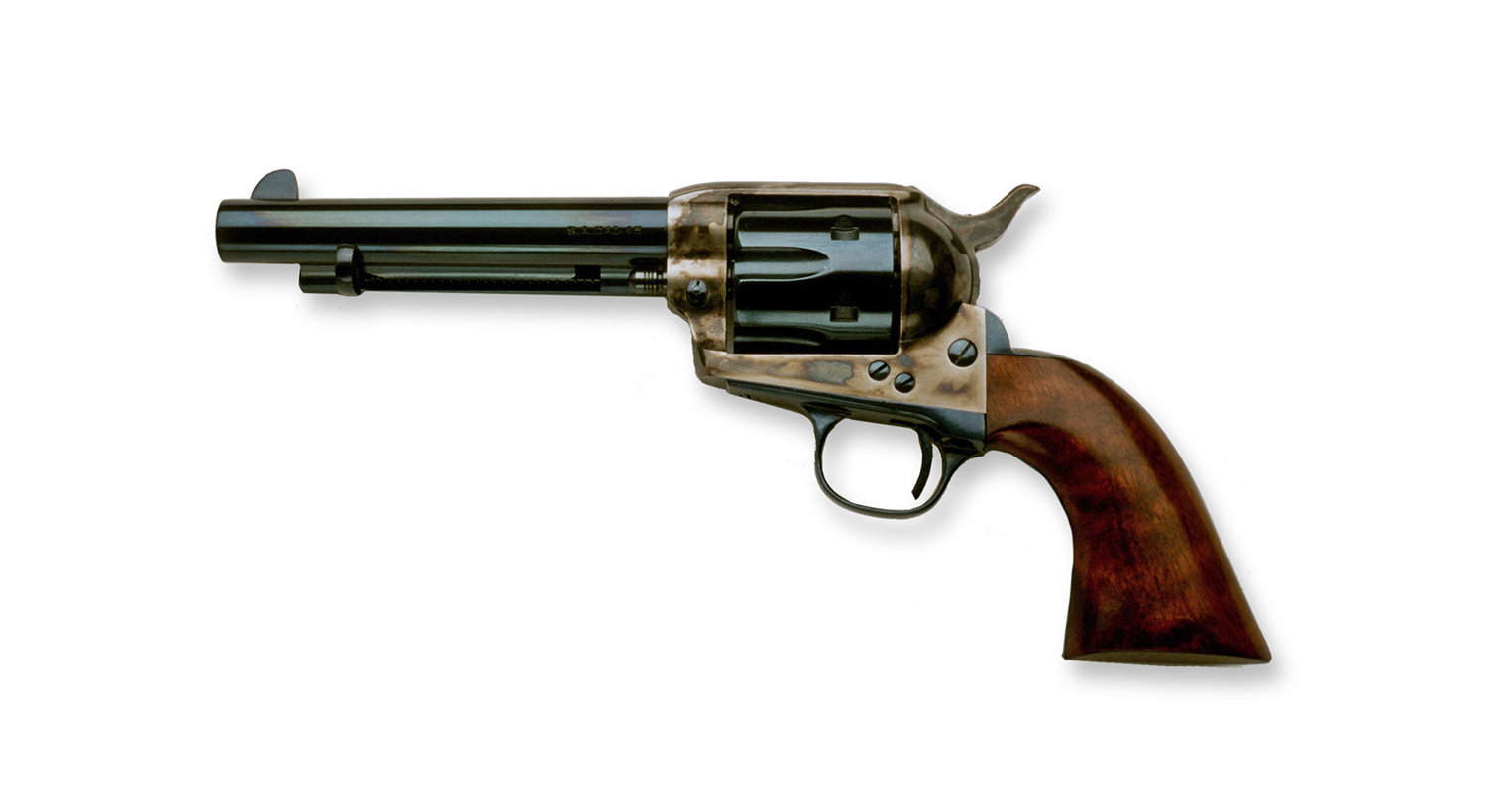

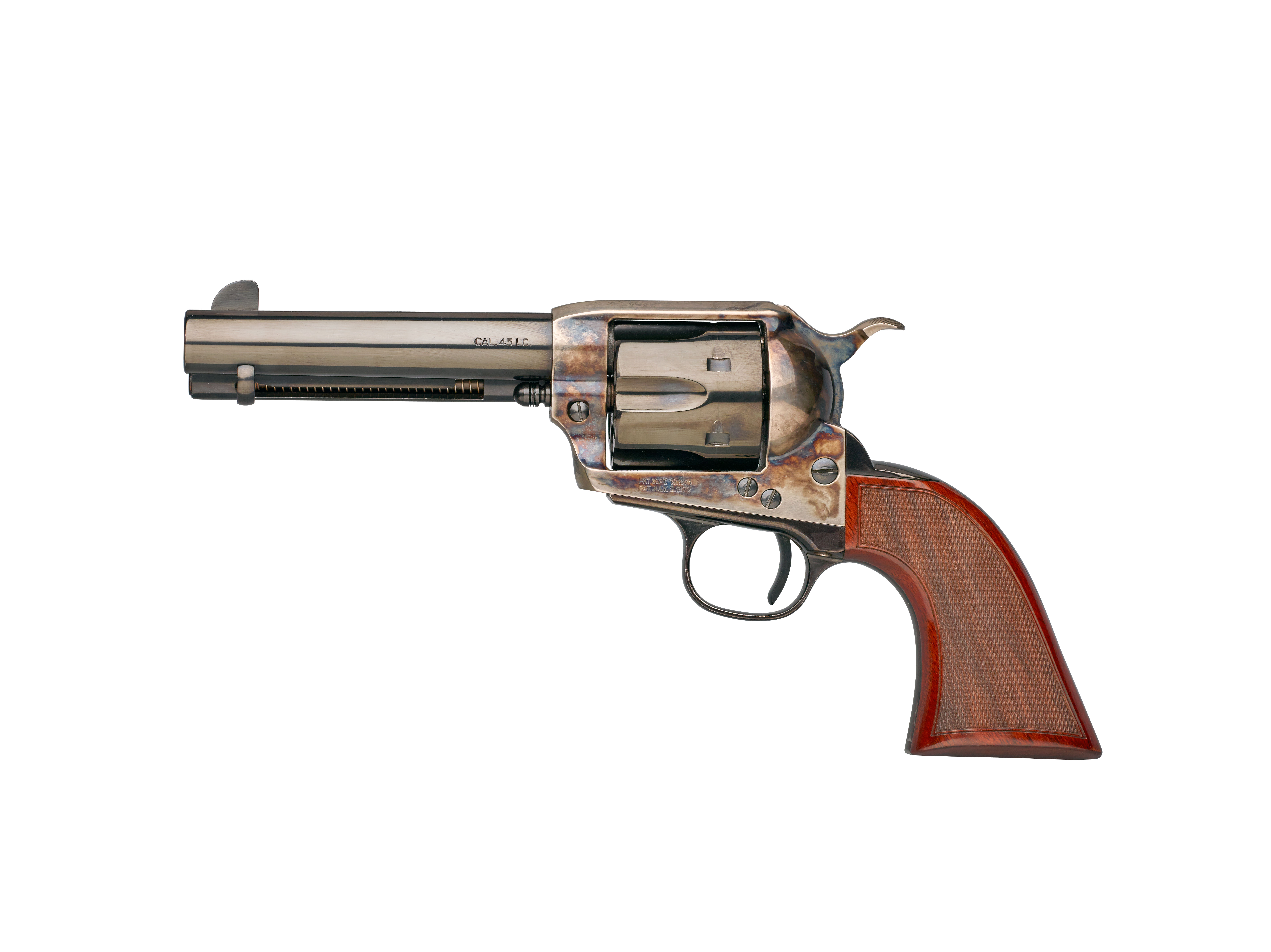

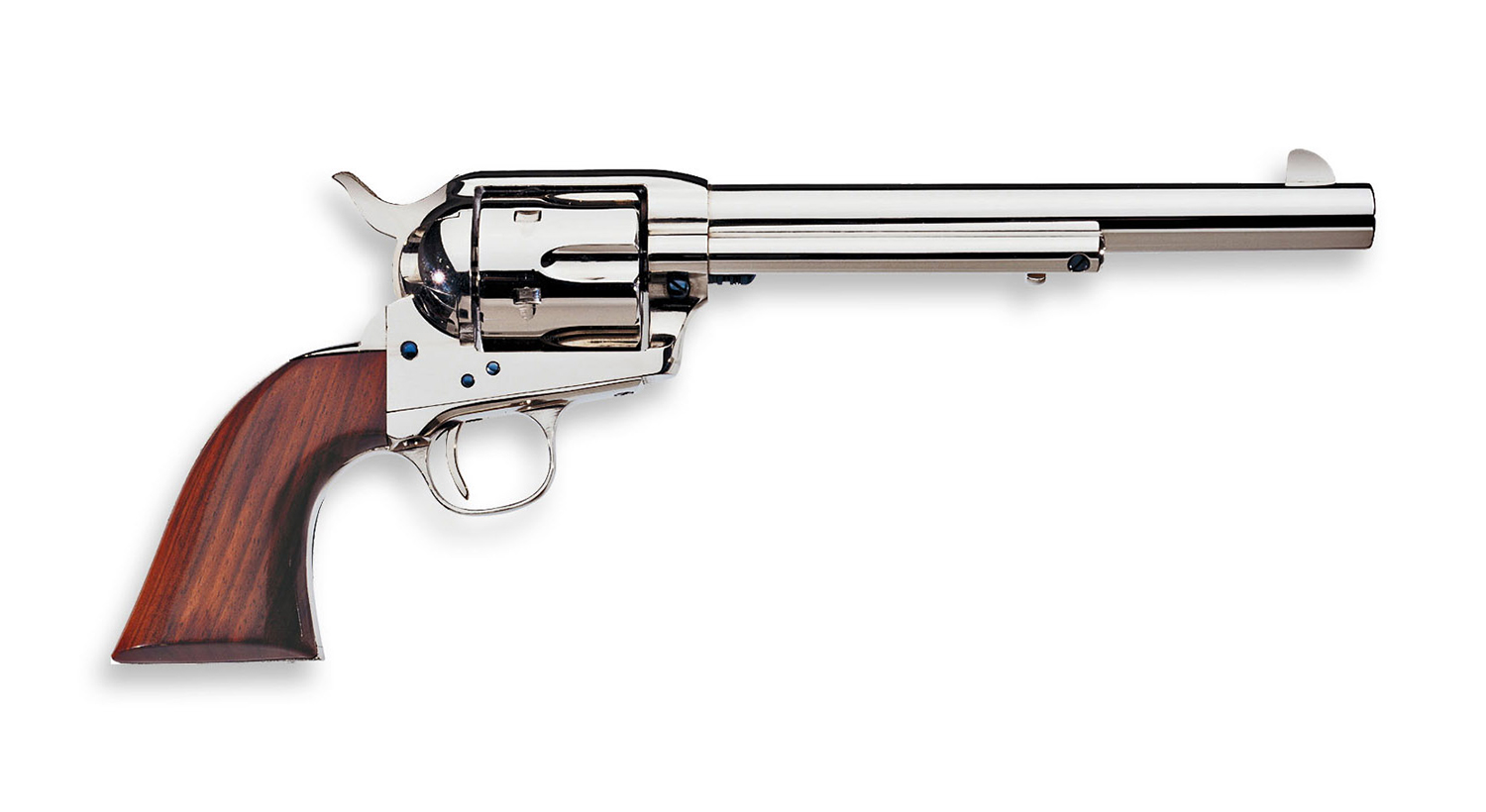

1873 CATTLEMAN NEW MODEL
Made in 1872 this is a gun that needs no introduction. The buyer can specify either the “old model” screw retainer for the cylinder pin or the more convenient “new model” plunger. The grip frame can be either steel or brass and on the metal surface you can select standard blueing eye-catching charcoal blueing full nickel plating white finish old west antique f inish. Grips can also be selected i.e. smooth walnut checkered walnut black plastic polymer ivory pearl or buffalo. These single actions are available also with a “birdhead” style grip (only in walnut). Uberti has such a vast range of Single Action revolvers – between the finish caliber and barrel length you are looking at an assortment of over 500 000 different models. Incredible but true!
Back to category
With an improved loading lever shorter cylinder and lighter weight the Dragoon was an improvement over the Colt Walker. Of the four Dragoon models the first was manufactured for Colt by Eli Whitney. Small enhancements separate the four Dragoon models the Whitneyville model is made like the original Walker but uses a dragoon barrel and cylinder the 1st model uses oval cylinder bolt slots the 2nd model uses squared cylinder bolt slots and the 3rd model incorporates a round trigger guard.

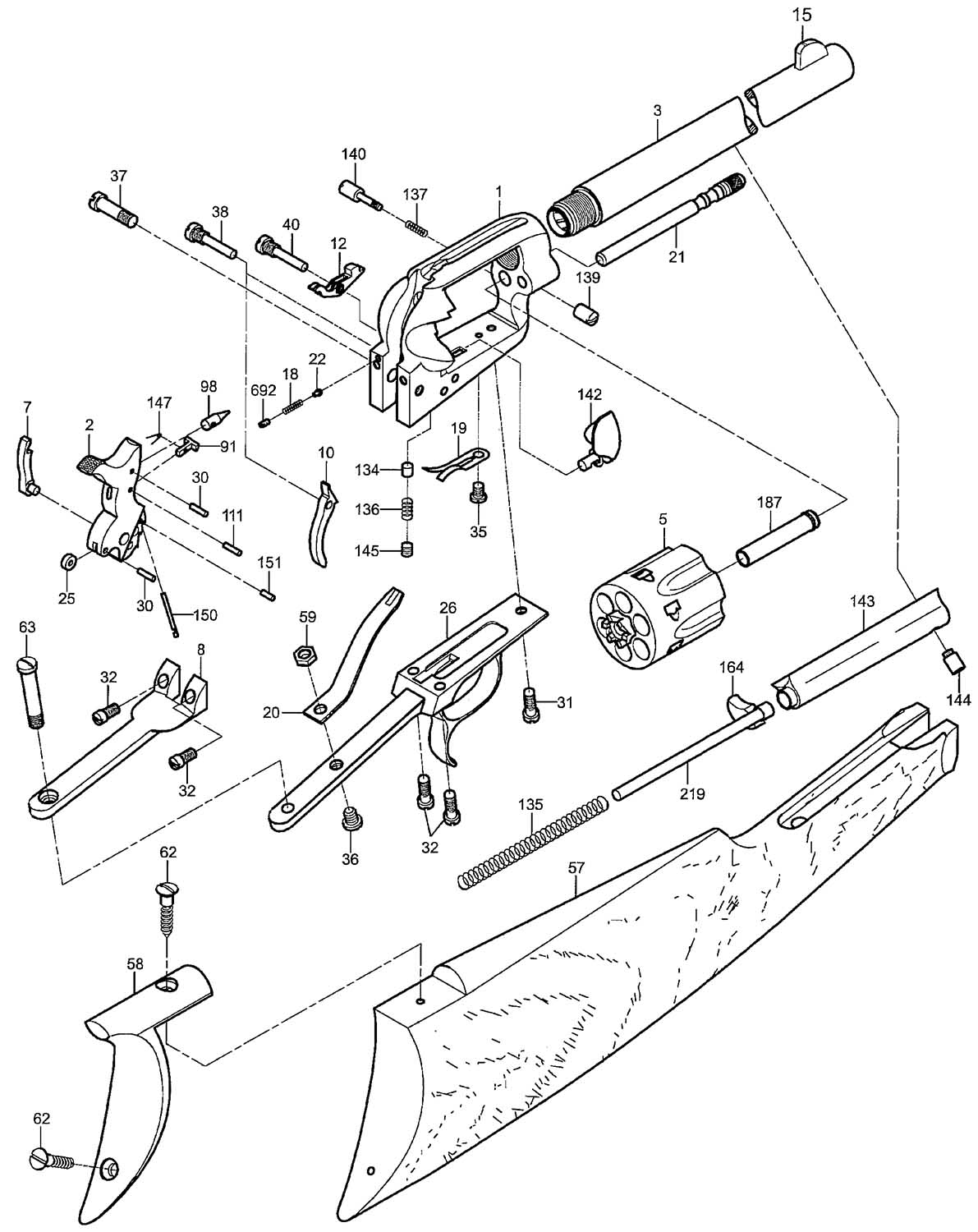

FinishesTechnicalParts and Schematics
| 000: | STANDARD |
|---|---|
| A00: | OLD WEST ANTIQUE PATINA FINISH REV. |
| C00: | CHARCOAL BLUE FINISH |
| W00: | WHITE FINISH FOR REV. |
| N00: | NICKEL PLATING FOR REV. |
| E35: | S.A. GOLD ENGRAV. |
| L06: | LASERENGRAVING FOR S.A. PATTON |
| Caliber: | .32/20-.38SP-.357MAG-.38/40-.44SP-.45LC-.45ACP |
|---|---|
| Length of Barrel: | 3″ – 3½” – 4″ – 4¾” – 5½” – 7½” – 10″ – 12″ – 18″ |
| Overall Length: | bbl.7½ 13.11″ |
| Weight: | bbl.7½ 2.50 lbs |
| Barrel: | Forged steel |
| Frame: | Forged steel and color case |
| Twist: | Left |
| Cylinder: | Fluted |
| Triggerguard: | Steel or Brass |
| Grip: | One piece walnut |
| Cylinder: | 6 |
| Barrel Shape: | Round Tapered |
| Sight: | Fixed or Adjustable |

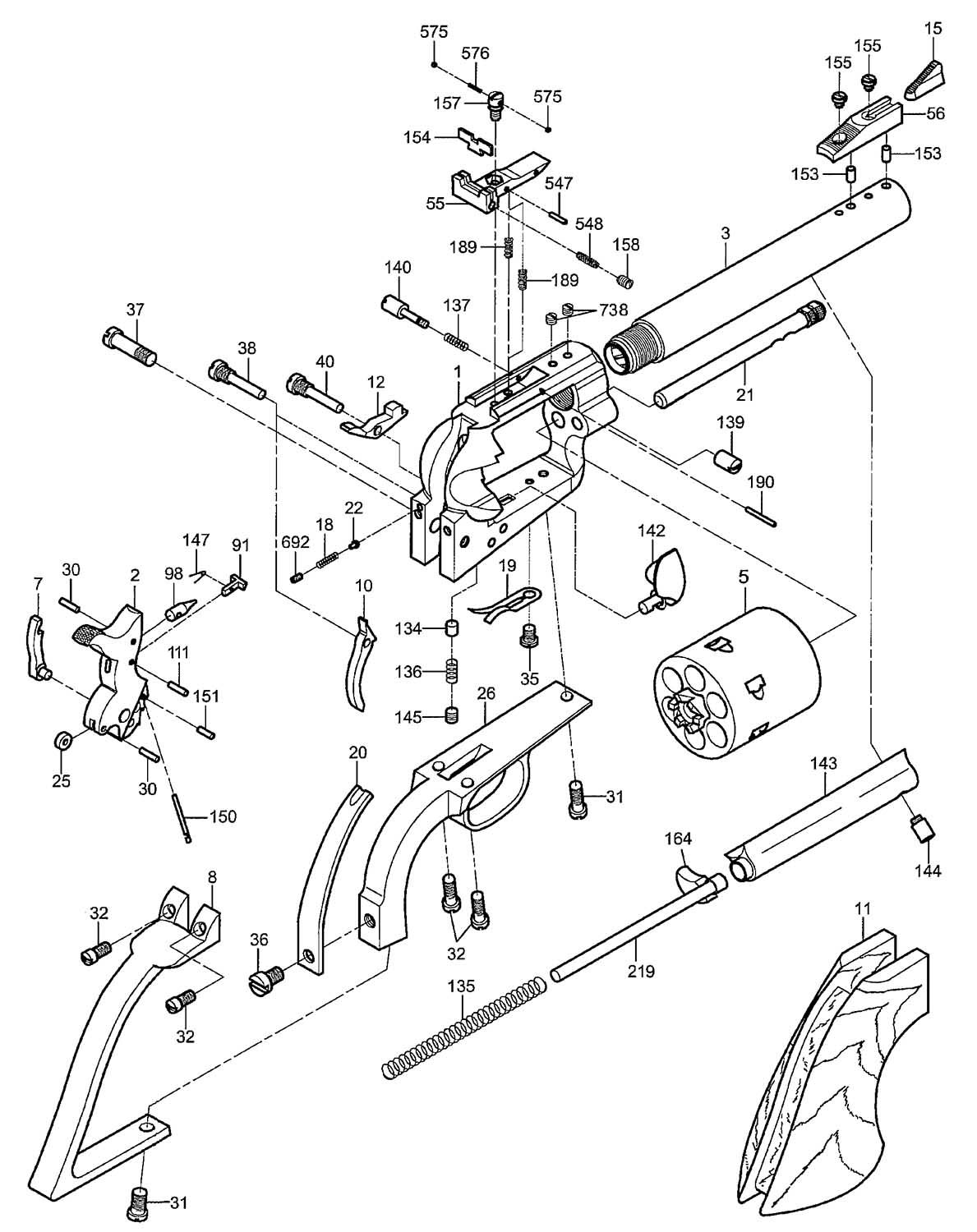

| Item | Model | Barrel | Length cal. |
|---|---|---|---|

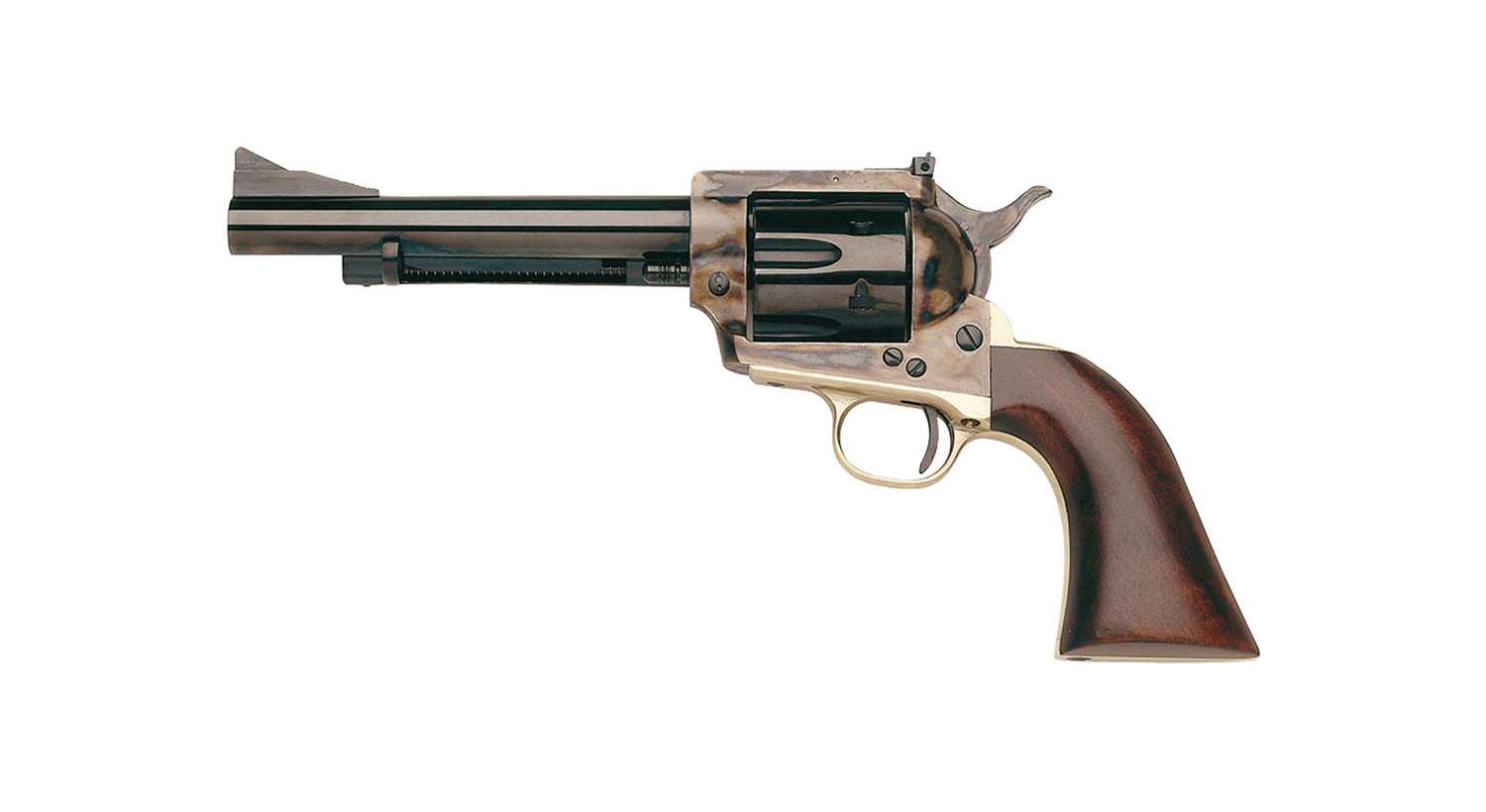

| 0358 | 1873 S.A.TARGET REV. 6″.44MAG STEEL CAT.1487 | 6” | 44 MAG. |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0500001 | 1 | CATTLEMAN TARGET FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0378003 | 1 | BARREL TARGET 6″ .44MAG |
| 5 | 4450005 | 1 | CYLINDER .44MAG |
| 7 | 0400007 | 1 | HAND |
| 8 | 0047008 | 1 | STEEL CIVIL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0040011 | 1 | GRIP |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0101015 | 1 | SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0395021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0360026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 55 | 0310055 | 1 | REAR |
| 56 | 0500056 | 1 | FRONT SIGHT RAMP |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 153 | 1 | ||
| 154 | 0310154 | 1 | REAR SIGHT BLADE |
| 155 | 0310155 | 2 | FRONT SIGHT RAMP RET.SCREW |
| 157 | 0310157 | 1 | REAR SIGHT ELEV. SCREW |
| 158 | 0310158 | 1 | REAR SIGHT SCREW |
| 189 | 0310189 | 2 | REAR SIGHT SPRING |
| 219 | A0410219 | 1 | SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 547 | 0310547 | 1 | REAR SIGHT ELEV.SCREW PIN |
| 575 | 0310575 | 2 | REAR SIGHT SCREW SPHERE |
| 576 | 0310576 | 1 | REAR SIGHT DETENT BALL SPRING |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0366 | 1873 S.A.TARGET REV.7.1/2″ .44MAG STEEL CAT.1489 | 7.1/2” | 44 MAG. |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0500001 | 1 | CATTLEMAN TARGET FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0379003 | 1 | BARREL TARGET 7.1/2″ .44MAG |
| 5 | 4450005 | 1 | CYLINDER .44MAG |
| 7 | 0400007 | 1 | HAND |
| 8 | 0047008 | 1 | STEEL CIVIL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0040011 | 1 | GRIP |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0101015 | 1 | SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0395021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0360026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 55 | 0310055 | 1 | REAR |
| 56 | 0500056 | 1 | FRONT SIGHT RAMP |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 153 | 1 | ||
| 154 | 0310154 | 1 | REAR SIGHT BLADE |
| 155 | 0310155 | 2 | FRONT SIGHT RAMP RET.SCREW |
| 157 | 0310157 | 1 | REAR SIGHT ELEV. SCREW |
| 158 | 0310158 | 1 | REAR SIGHT SCREW |
| 189 | 0310189 | 2 | REAR SIGHT SPRING |
| 219 | A0410219 | 1 | SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 547 | 0310547 | 1 | REAR SIGHT ELEV.SCREW PIN |
| 575 | 0310575 | 2 | REAR SIGHT SCREW SPHERE |
| 576 | 0310576 | 1 | REAR SIGHT DETENT BALL SPRING |
| 692 | 0400692 | 1 | HAND PIN SCREW |

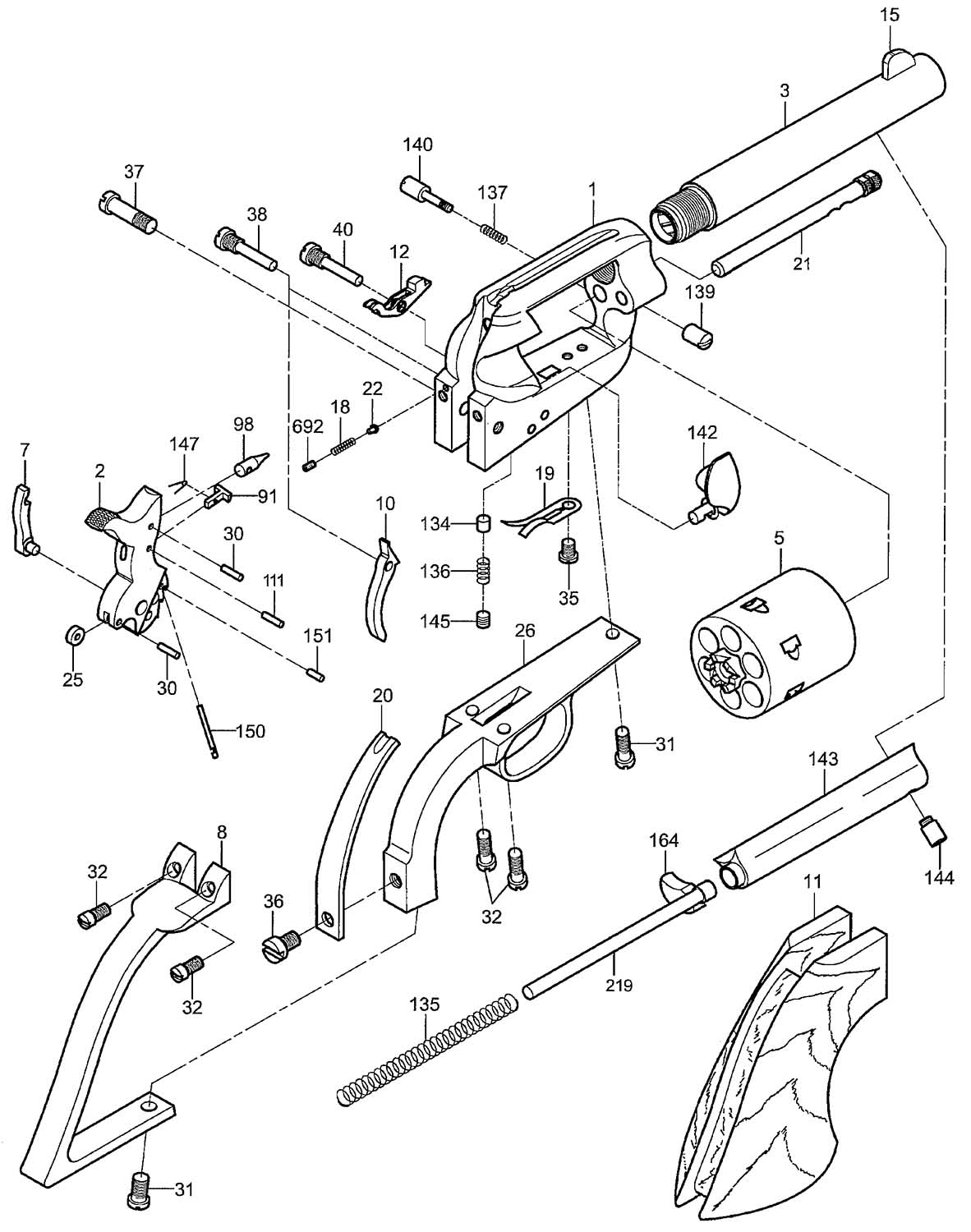

| 0393 | 1873 S.A. REV.7.1/2″ .44MAG STEEL CAT.1488 | 7.1/2” | 44 MAG. |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A4100001 | 1 | CATTLEMAN FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0393003 | 1 | BARREL 7.1/2″ .44MAG |
| 5 | 4450005 | 1 | CYLINDER .44MAG |
| 7 | 0400007 | 1 | HAND |
| 8 | 0047008 | 1 | STEEL CIVIL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0040011 | 1 | GRIP |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0940015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0395021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0360026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 219 | A0410219 | 1 | SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0394 | 1873 S.A. REV. 6″.44MAG STEEL CAT.1486 | 44 MAG. |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A4100001 | 1 | CATTLEMAN FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0394003 | 1 | BARREL 6″ .44MAG |
| 5 | 4450005 | 1 | CYLINDER .44MAG |
| 7 | 0400007 | 1 | HAND |
| 8 | 0047008 | 1 | STEEL CIVIL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0040011 | 1 | GRIP |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0940015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0395021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0360026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 219 | A0410219 | 1 | SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0395 | 1873 S.A. REV.4.3/4″ .44MAG STEEL CAT.1551 | 4.3/4” | 44 MAG. |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A4100001 | 1 | CATTLEMAN FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0395003 | 1 | BARREL 4.3/4″ .44MAG |
| 5 | 4450005 | 1 | CYLINDER .44MAG |
| 7 | 0400007 | 1 | HAND |
| 8 | 0047008 | 1 | STEEL CIVIL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0040011 | 1 | GRIP |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0940015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0395021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0360026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 219 | A0410219 | 1 | SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 692 | 0400692 | 1 | HAND PIN SCREW |

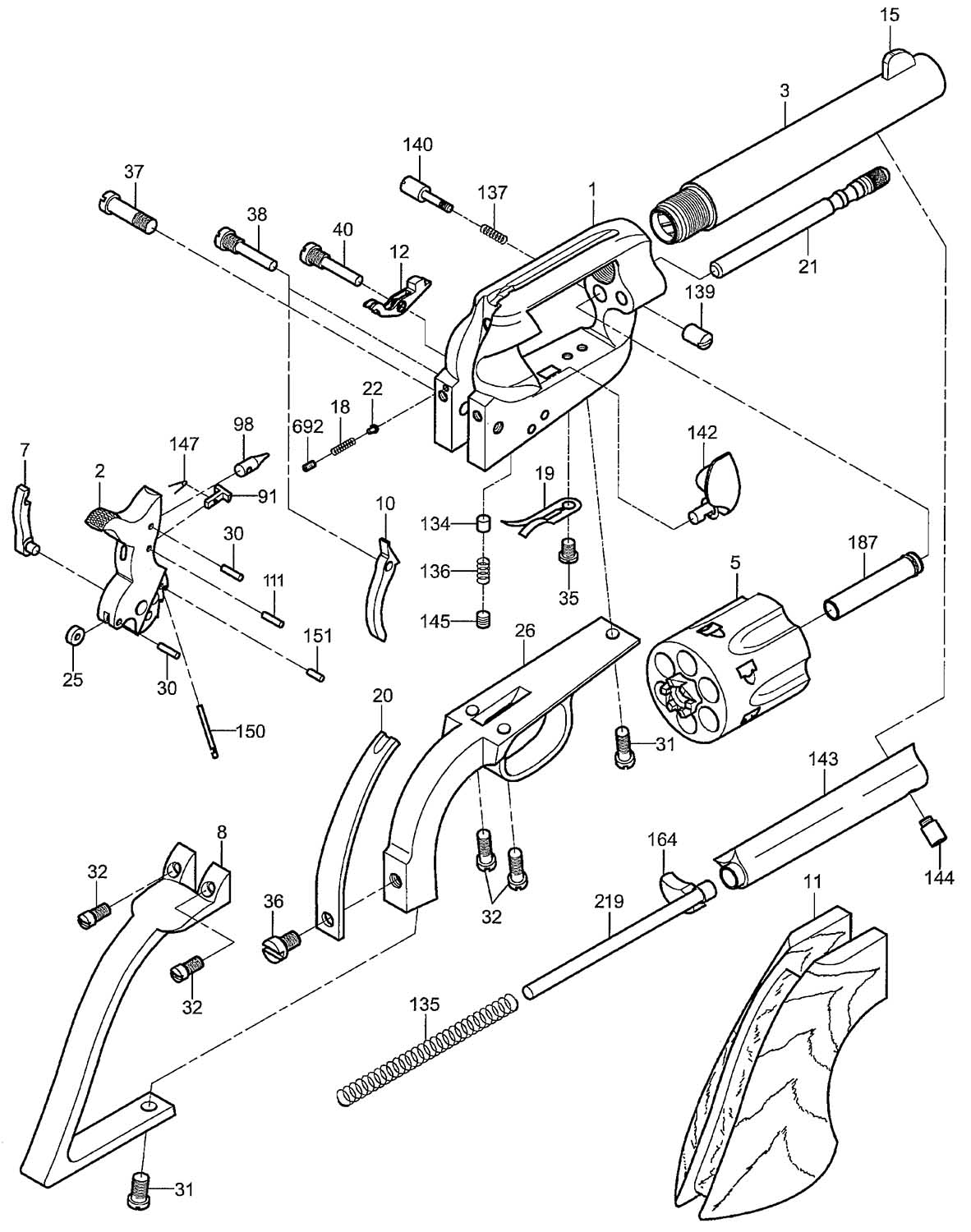

| 0396 | CATTLEMAN REV. QD. 5.1/2″ .357MAG. BRASS CAT.1522 MILLENIUM | 5.1/2” | 357MAG. |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A4100001 | 1 | CATTLEMAN FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0401003 | 1 | BARREL 5.1/2″ .357MAG/38SP. |
| 5 | 0946005 | 1 | CYLINDER .357MAG |
| 7 | 0400007 | 1 | HAND |
| 8 | 0000008 | 1 | CIVIL BRASS BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0000011 | 1 | GRIP |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0946015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0000026 | 1 | CIVIL BRASS TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 219 | A0400219 | 1 | SAA EJECTOR N.M.4.3/4″.357MG ASS. |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0397 | CATTLEMAN REV. QD. 4.3/4″ .357MAG. BRASS CAT.1521 MILLENIUM | 4.3/4” | 357MAG. |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A4100001 | 1 | CATTLEMAN FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0400003 | 1 | BARREL 4.3/4″ .357MAG/38SP. |
| 5 | 0946005 | 1 | CYLINDER .357MAG |
| 7 | 0400007 | 1 | HAND |
| 8 | 0000008 | 1 | CIVIL BRASS BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0000011 | 1 | GRIP |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0946015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0000026 | 1 | CIVIL BRASS TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 219 | A0400219 | 1 | SAA EJECTOR N.M.4.3/4″.357MG ASS. |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0398 | CATTLEMAN REV. QD. 5.1/2″ .45LC BRASS CAT.13231 MILLENIUM | 5.1/2” | 45LC |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A4100001 | 1 | CATTLEMAN FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0411003 | 1 | BARREL 5.1/2″ |
| 5 | 0940005 | 1 | CYLINDER .45LC |
| 7 | 0400007 | 1 | HAND |
| 8 | 0000008 | 1 | CIVIL BRASS BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0000011 | 1 | GRIP |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0940015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0000026 | 1 | CIVIL BRASS TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 219 | A0410219 | 1 | SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0399 | CATTLEMAN REV. QD. 4.3/4″ .45LC BRASS CAT.1518 MILLENIUM | 4.3/4” | 45LC |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A4100001 | 1 | CATTLEMAN FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0410003 | 1 | BARREL 4.3/4″ .45LC |
| 5 | 0940005 | 1 | CYLINDER .45LC |
| 7 | 0400007 | 1 | HAND |
| 8 | 0000008 | 1 | CIVIL BRASS BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0000011 | 1 | GRIP |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0940015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0000026 | 1 | CIVIL BRASS TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 219 | A0410219 | 1 | SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0400 | CATTLEMAN REV.Q.D.4.3/4″ .357MAG. STEEL CAT.1521 | 4.3/4” | 357MAG. |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A4100001 | 1 | CATTLEMAN FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0400003 | 1 | BARREL 4.3/4″ .357MAG/38SP. |
| 5 | 0400005 | 1 | CYLINDER .357MAG |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0946015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0400219 | 1 | SAA EJECTOR N.M.4.3/4″.357MG ASS. |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0401 | CATTLEMAN REV.Q.D. 5.1/2″.357MAG STEEL CAT.1522 | 5.1/2” | 357MAG. |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A4100001 | 1 | CATTLEMAN FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0401003 | 1 | BARREL 5.1/2″ .357MAG/38SP. |
| 5 | 0400005 | 1 | CYLINDER .357MAG |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0946015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0400219 | 1 | SAA EJECTOR N.M.4.3/4″.357MG ASS. |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0402 | CATTLEMAN REV.QD.STEEL 4.3/4″.45ACP CAT.11117 | 4.3/4” | 45ACP |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A4100001 | 1 | CATTLEMAN FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0410003 | 1 | BARREL 4.3/4″ .45LC |
| 5 | 0402005 | 1 | CYLINDER .45ACP |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0940015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0410219 | 1 | SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0403 | CATTLEMAN REV.QD.STEEL 5.1/2″.45ACP CAT.11118 | 5.1/2” | 45ACP |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A4100001 | 1 | CATTLEMAN FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0411003 | 1 | BARREL 5.1/2″ |
| 5 | 0402005 | 1 | CYLINDER .45ACP |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0940015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0410219 | 1 | SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0404 | CATTLEMAN REV.QD.STEEL 7.1/2″.45ACP CAT.11095 | 7.1/2” | 45ACP |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A4100001 | 1 | CATTLEMAN FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0415003 | 1 | BARREL 7.1/2″ .45LC |
| 5 | 0402005 | 1 | CYLINDER .45ACP |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0940015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0410219 | 1 | SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0405 | CATTLEMAN REV.Q.D.7.1/2″ .357MAG STEEL CAT.1523 | 7.1/2” | 357MAG. |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A4100001 | 1 | CATTLEMAN FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0405003 | 1 | BARREL 7.1/2″ .357MAG/38SP. |
| 5 | 0400005 | 1 | CYLINDER .357MAG |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0946015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0400219 | 1 | SAA EJECTOR N.M.4.3/4″.357MG ASS. |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0406 | CATTLEMAN BUNTLINE REV.QD.18″.357M STEEL CAT.1499 | 18” | 357MAG. |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A4100001 | 1 | CATTLEMAN FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0406003 | 1 | BARREL 18″QD .357MAG |
| 5 | 0400005 | 1 | CYLINDER .357MAG |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0946015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0400219 | 1 | SAA EJECTOR N.M.4.3/4″.357MG ASS. |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0408 | CATTLEMAN REV.QD.STEEL 3.1/2″ CAL.357 MAG.CAT.8273 | 3.1/2” | 357MAG. |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A4100001 | 1 | CATTLEMAN FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0340003 | 1 | SA BARREL 3.1/2″ .357MAG |
| 5 | 0400005 | 1 | CYLINDER .357MAG |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0946015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 0338135 | 1 | EJECTOR SPRING 3.1/2″ |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0338143 | 1 | EJECTOR ROD TUBE 3.1/2″ |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0340219 | 1 | SAA EJECTOR N.M. 3.1/2″ .357MAG ASSEMBLY |
| 692 | 0400692 | 1 | HAND PIN SCREW |

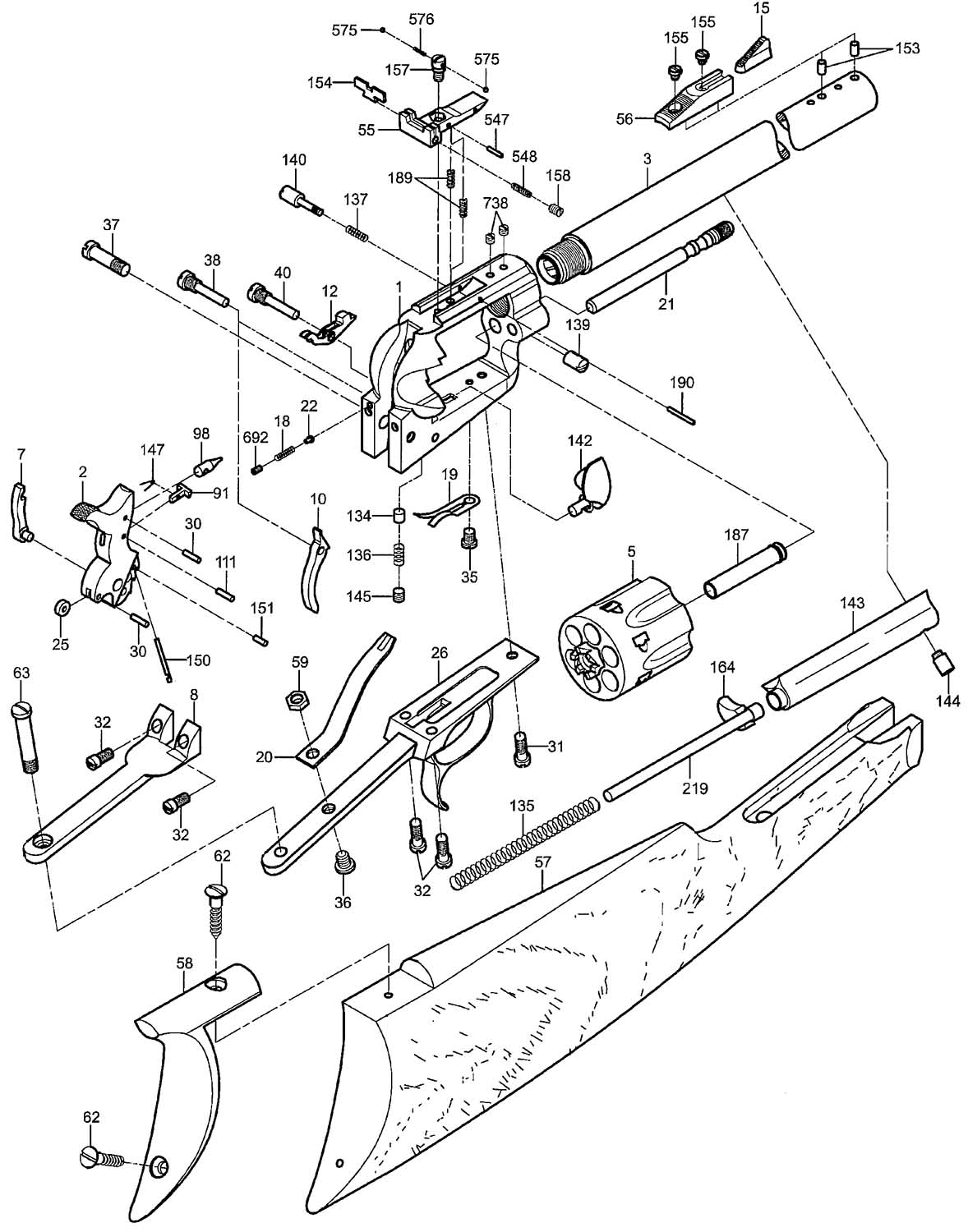

| 0409 | S.A.REV.CARB. Q.D. 18″ .357MAG CAT.1591 | 18” | 357MAG. |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A4100001 | 1 | CATTLEMAN FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0406003 | 1 | BARREL 18″QD .357MAG |
| 5 | 0400005 | 1 | CYLINDER .357MAG |
| 7 | 0400007 | 1 | HAND |
| 8 | 0409008 | 1 | BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0946015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0409020 | 1 | MAIN SPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0409026 | 1 | TRIGGERGUARD |
| 31 | 0000031 | 1 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 57 | 0409057 | 1 | STOCK |
| 58 | 0120058 | 1 | BUTT PLATE |
| 59 | 0120059 | 1 | MAIN SPRING LOOP SCREW |
| 62 | 0200062 | 2 | BUTT PLATE SCREW |
| 63 | 0409063 | 1 | TANG SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0400219 | 1 | SAA EJECTOR N.M.4.3/4″.357MG ASS. |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0410 | CATTLEMAN REV.Q.D. 4.3/4″ .45LC STEEL CAT.1518 | 4.3/4” | 45LC |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A4100001 | 1 | CATTLEMAN FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0410003 | 1 | BARREL 4.3/4″ .45LC |
| 5 | 0410005 | 1 | CYLINDER .45LC |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0940015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0410219 | 1 | SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0411 | CATTLEMAN REV.Q.D. 5.1/2″ .45LC STEEL CAT.1519 | 5.1/2” | 45LC |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A4100001 | 1 | CATTLEMAN FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0411003 | 1 | BARREL 5.1/2″ |
| 5 | 0410005 | 1 | CYLINDER .45LC |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0940015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0410219 | 1 | SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 692 | 0400692 | 1 | HAND PIN SCREW |

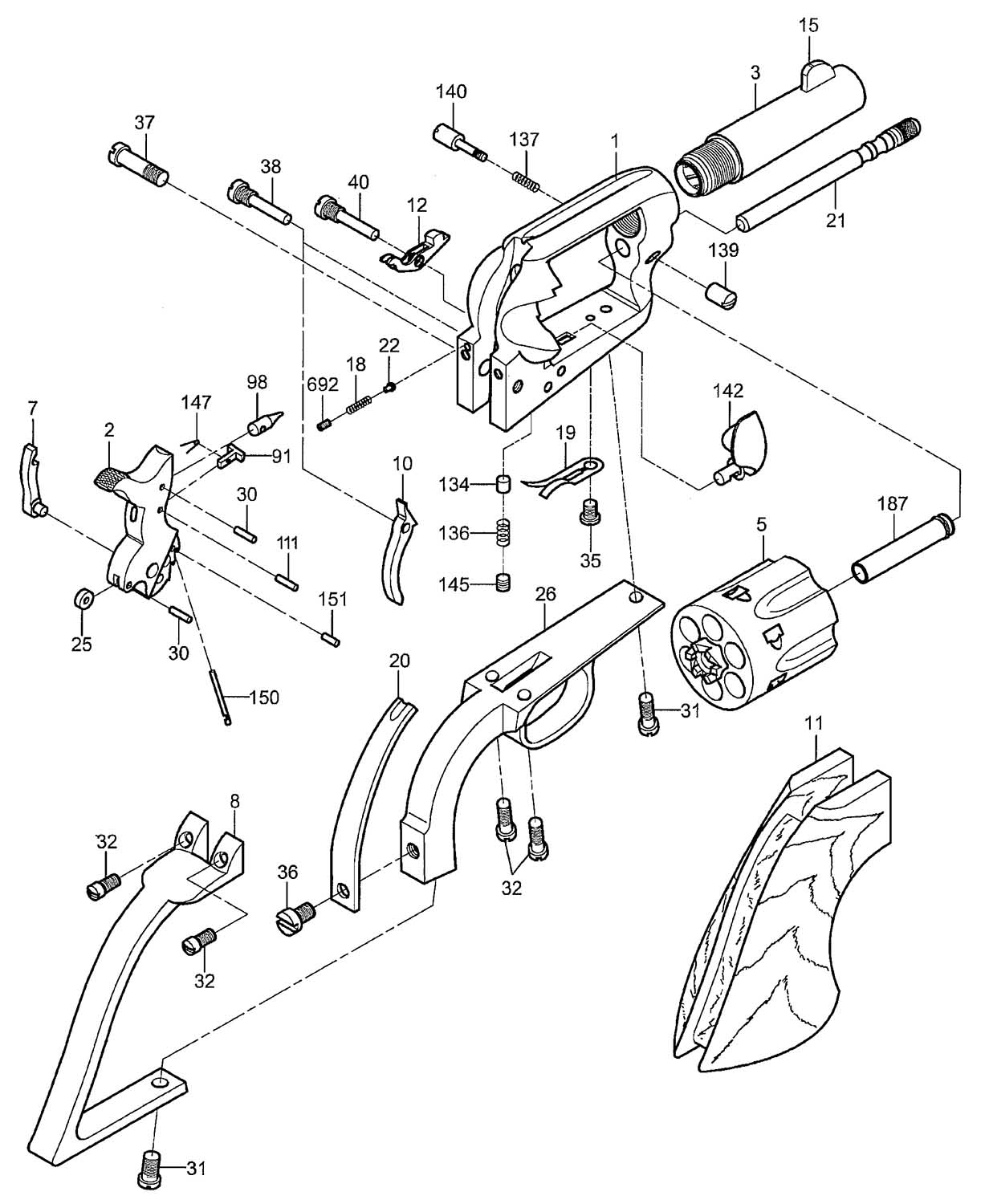

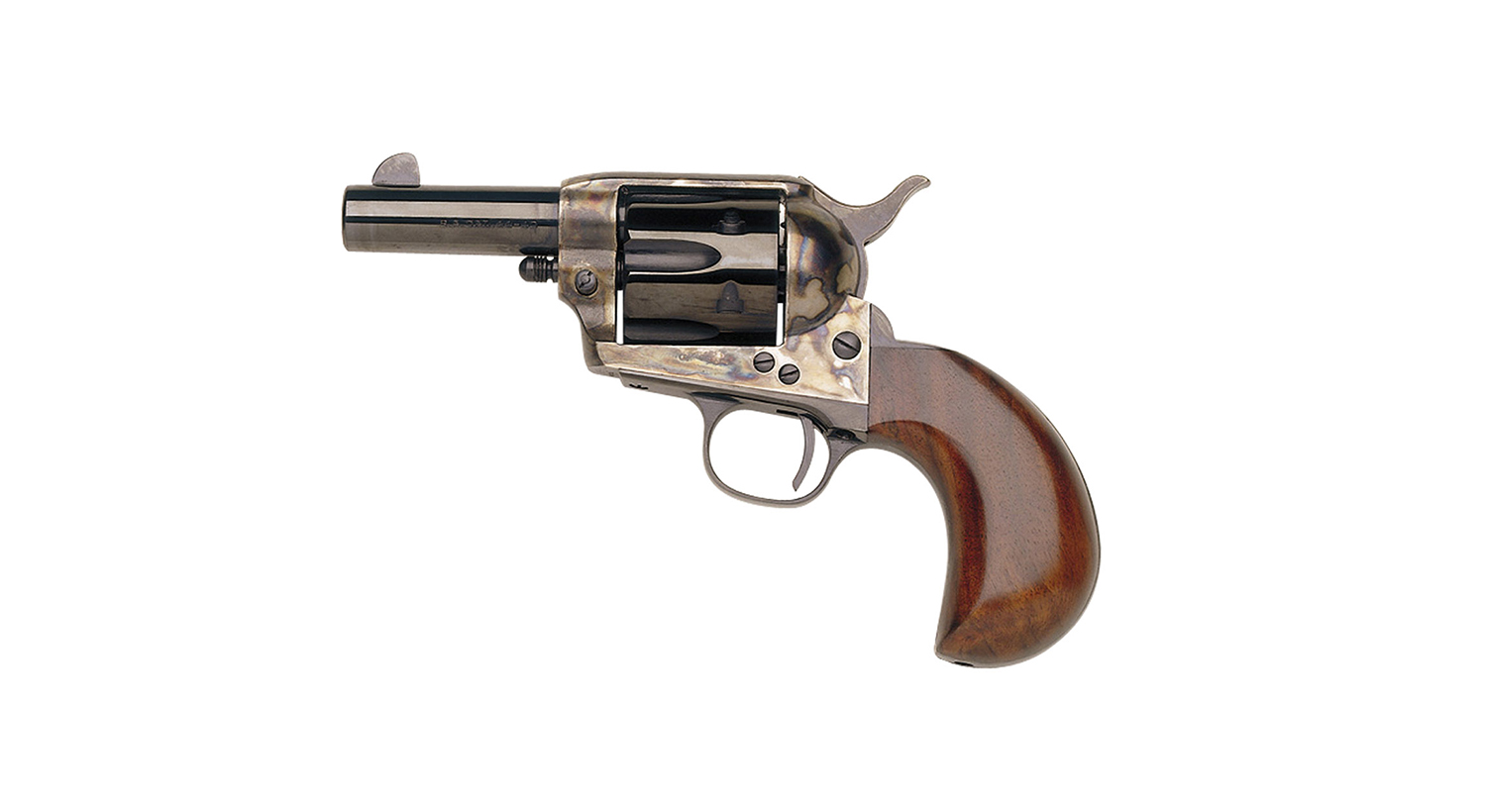

| 0412 | CATTLEMAN REV.Q.D. SHERIFF`S 3″ .45LC STEEL CAT.4053 | 3” | 45LC |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0412001 | 1 | CATTLEMAN SHERIFF FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0412003 | 1 | BARREL 3″ .45LC |
| 5 | 0410005 | 1 | CYLINDER .45LC |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0940015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 145 | 0400145 | 1 | GATE CATCH SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0413 | CATTLEMAN REV.Q.D.SHERIFF`S 4″ .45LC STEEL CAT.5474 | 4” | 45LC |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0412001 | 1 | CATTLEMAN SHERIFF FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0413003 | 1 | BARREL 4″ .45LC |
| 5 | 0410005 | 1 | CYLINDER .45LC |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0940015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0414 | CATTLEMAN REV. QD 4″WITH EJECT. .45LC STEEL CAT.5474 | 4” | 45LC |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A4100001 | 1 | CATTLEMAN FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0414003 | 1 | BARREL 4″ .45 |
| 5 | 0410005 | 1 | CYLINDER .45LC |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0940015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0414143 | 1 | EJECTOR ROD TUBE 4″ |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0414219 | 1 | SAA EJECTOR N.M. 4″ ASSEMBLY |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0415 | CATTLEMAN REV.Q.D. 7.1/2″ .45LC STEEL CAT.1520 | 7.1/2” | 45LC |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0415003 | 1 | BARREL 7.1/2″ .45LC |
| 5 | 0410005 | 1 | CYLINDER .45LC |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0940015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0410219 | 1 | SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0416 | CATTLEMAN BUNTLINE REV.QD.18″ .45LC STEEL CAT.1497 | 18” | 45LC |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A4100001 | 1 | CATTLEMAN FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0416003 | 1 | BARREL 18″ QD. .45LC |
| 5 | 0410005 | 1 | CYLINDER .45LC |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0940015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0410219 | 1 | SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0417 | CATTLEMAN BUNTLINE REV.QD.12″.45LC STEEL CAT.1496 | 12” | 45LC |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A4100001 | 1 | CATTLEMAN FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0417003 | 1 | BARREL |
| 5 | 0410005 | 1 | CYLINDER .45LC |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0940015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0410219 | 1 | SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0418 | CATTLEMAN REV.Q.D. 3.1/2″ .45LC STEEL CAT.8276 | 3.1/2” | 45LC |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A4100001 | 1 | CATTLEMAN FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0346003 | 1 | SA BARREL 3.1/2″ .45 |
| 5 | 0410005 | 1 | CYLINDER .45LC |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0940015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 0338135 | 1 | EJECTOR SPRING 3.1/2″ |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0338143 | 1 | EJECTOR ROD TUBE 3.1/2″ |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0338219 | 1 | SAA EJECTOR N.M. 3.1/2″ .45LC ASSEMBLY |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0419 | S.A. REV.CARB. Q.D. 18″ .45LC CAT.1590 | 18” | 45LC |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A4100001 | 1 | CATTLEMAN FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0416003 | 1 | BARREL 18″ QD. .45LC |
| 5 | 0410005 | 1 | CYLINDER .45LC |
| 7 | 0400007 | 1 | HAND |
| 8 | 0409008 | 1 | BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0940015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0409020 | 1 | MAIN SPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0409026 | 1 | TRIGGERGUARD |
| 31 | 0000031 | 1 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 57 | 0409057 | 1 | STOCK |
| 58 | 0120058 | 1 | BUTT PLATE |
| 59 | 0120059 | 1 | MAIN SPRING LOOP SCREW |
| 62 | 0200062 | 2 | BUTT PLATE SCREW |
| 63 | 0409063 | 1 | TANG SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0410219 | 1 | SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0420 | CATTLEMAN REV.Q.D. 4.3/4″ .44/40 STEEL CAT.1515 | 4.3/4” | 44-40 |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A4100001 | 1 | CATTLEMAN FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0420003 | 1 | BARREL 4.3/4″ .44/40 |
| 5 | 0420005 | 1 | CYLINDER .44/40 |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0940015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0410219 | 1 | SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0421 | CATTLEMAN REV. Q.D. 5 12″.44/40 STEEL CAT.1516 | 5.1/2” | 44-40 |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A4100001 | 1 | CATTLEMAN FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0421003 | 1 | BARREL 5.1/2″ .44/40 |
| 5 | 0420005 | 1 | CYLINDER .44/40 |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0940015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0410219 | 1 | SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0422 | CATTLEMAN REV.QD. SHERIFF`S 3″ .44/40 STEEL CAT.4052 | 3” | 44-40 |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0412001 | 1 | CATTLEMAN SHERIFF FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0422003 | 1 | BARREL 3″ .44/40 |
| 5 | 0420005 | 1 | CYLINDER .44/40 |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0940015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0423 | CATTLEMAN REV. QD. SHERIFF`S 4″ .44/40 CAT.5475 | 4” | 44-40 |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0412001 | 1 | CATTLEMAN SHERIFF FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0423003 | 1 | BARREL 4″ .44/40 |
| 5 | 0420005 | 1 | CYLINDER .44/40 |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0940015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0424 | CATTLEMAN REV.QD. 4″ WITH EJECT. .44/40 STEEL CAT.5475 | 4” | 44-40 |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A4100001 | 1 | CATTLEMAN FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 1 | ||
| 5 | 0420005 | 1 | CYLINDER .44/40 |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0940015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0414143 | 1 | EJECTOR ROD TUBE 4″ |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0414219 | 1 | SAA EJECTOR N.M. 4″ ASSEMBLY |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0425 | CATTLEMAN REV. QD. 7.1/2″ .44/40 STEEL CAT.1517 | 7.1/2” | 44-40 |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A4100001 | 1 | CATTLEMAN FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0425003 | 1 | BARREL 7.1/2″ .44/40 |
| 5 | 0420005 | 1 | CYLINDER .44/40 |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0940015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0410219 | 1 | SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0428 | CATTLEMAN REV.BUNTLINE QD.18″.44/40 STEEL CAT.9088 | 18” | 44-40 |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A4100001 | 1 | CATTLEMAN FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0429003 | 1 | BARREL 18″QD .44/40 |
| 5 | 0420005 | 1 | CYLINDER .44/40 |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0940015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0410219 | 1 | SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0434 | CATTLEMAN REV.Q.D. 3.1/2″ CAL.44-40 STEEL CAT.8271 | 3.1/2” | 44-40 |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A4100001 | 1 | CATTLEMAN FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0344003 | 1 | SA BARREL 3.1/2″ .44/40 |
| 5 | 0420005 | 1 | CYLINDER .44/40 |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0940015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 0338135 | 1 | EJECTOR SPRING 3.1/2″ |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0338143 | 1 | EJECTOR ROD TUBE 3.1/2″ |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0338219 | 1 | SAA EJECTOR N.M. 3.1/2″ .45LC ASSEMBLY |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0436 | CATTLEMAN REV.QD.STEEL 4.3/4″ .45LC-45ACP WITH EXTRA CYL.CAT.6205 | 4.3/4” | 45LC/ACP |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A4100001 | 1 | CATTLEMAN FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0410003 | 1 | BARREL 4.3/4″ .45LC |
| 5 | 0410005 | 1 | CYLINDER .45LC |
| 5 | 0402005 | 1 | CYLINDER .45ACP |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0940015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 2 | BASE PIN BUSHING |
| 219 | A0410219 | 1 | SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0437 | CATTLEMAN REV. QD. STEEL 5 12″ .45LC-45ACP WITH EXTRA CYL.CAT.6206 | 5.1/2” | 45LC/ACP |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A4100001 | 1 | CATTLEMAN FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0411003 | 1 | BARREL 5.1/2″ |
| 5 | 0410005 | 1 | CYLINDER .45LC |
| 5 | 0402005 | 1 | CYLINDER .45ACP |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0940015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 2 | BASE PIN BUSHING |
| 219 | A0410219 | 1 | SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0438 | CATTLEMAN REV.QD.STEEL 7.1/2″ .45LC-45ACP WITH EXTRA CYL.CAT.6204 | 7.1/2” | 45LC/ACP |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A4100001 | 1 | CATTLEMAN FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0415003 | 1 | BARREL 7.1/2″ .45LC |
| 5 | 0410005 | 1 | CYLINDER .45LC |
| 5 | 0402005 | 1 | CYLINDER .45ACP |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0940015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 2 | BASE PIN BUSHING |
| 219 | A0410219 | 1 | SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0440 | CATTLEMAN REV. QD. 4.3/4″ .357MAG BRASS CAT.1521 | 4.3/4” | 357MAG. |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A4100001 | 1 | CATTLEMAN FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0400003 | 1 | BARREL 4.3/4″ .357MAG/38SP. |
| 5 | 0400005 | 1 | CYLINDER .357MAG |
| 7 | 0400007 | 1 | HAND |
| 8 | 0000008 | 1 | CIVIL BRASS BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0000011 | 1 | GRIP |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0946015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0000026 | 1 | CIVIL BRASS TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0400219 | 1 | SAA EJECTOR N.M.4.3/4″.357MG ASS. |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0441 | CATTLEMAN REV. QD. 5.1/2″ .357MAG BRASS CAT.1522 | 5.1/2” | 357MAG. |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A4100001 | 1 | CATTLEMAN FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0401003 | 1 | BARREL 5.1/2″ .357MAG/38SP. |
| 5 | 0400005 | 1 | CYLINDER .357MAG |
| 7 | 0400007 | 1 | HAND |
| 8 | 0000008 | 1 | CIVIL BRASS BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0000011 | 1 | GRIP |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0946015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0000026 | 1 | CIVIL BRASS TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0400219 | 1 | SAA EJECTOR N.M.4.3/4″.357MG ASS. |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0442 | CATTLEMAN REV.QD.BRASS 4.3/4″.45ACP CAT.11117 | 4.3/4” | 45ACP |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A4100001 | 1 | CATTLEMAN FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0410003 | 1 | BARREL 4.3/4″ .45LC |
| 5 | 0402005 | 1 | CYLINDER .45ACP |
| 7 | 0400007 | 1 | HAND |
| 8 | 0000008 | 1 | CIVIL BRASS BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0000011 | 1 | GRIP |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0940015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0000026 | 1 | CIVIL BRASS TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0410219 | 1 | SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0443 | CATTLEMAN REV.QD.BRASS 5.1/2″.45ACP CAT.11118 | 5.1/2” | 45ACP |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A4100001 | 1 | CATTLEMAN FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0411003 | 1 | BARREL 5.1/2″ |
| 5 | 0402005 | 1 | CYLINDER .45ACP |
| 7 | 0400007 | 1 | HAND |
| 8 | 0000008 | 1 | CIVIL BRASS BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0000011 | 1 | GRIP |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0940015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0000026 | 1 | CIVIL BRASS TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0410219 | 1 | SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0444 | CATTLEMAN REV.QD.BRASS 7.1/2″.45ACP CAT.11095 | 7.1/2” | 45ACP |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A4100001 | 1 | CATTLEMAN FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0415003 | 1 | BARREL 7.1/2″ .45LC |
| 5 | 0402005 | 1 | CYLINDER .45ACP |
| 7 | 0400007 | 1 | HAND |
| 8 | 0000008 | 1 | CIVIL BRASS BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0000011 | 1 | GRIP |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0940015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0000026 | 1 | CIVIL BRASS TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0410219 | 1 | SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0445 | CATTLEMAN REV. QD. 7.1/2″ .357MAG BRASS CAT.1523 | 7.1/2” | 357MAG. |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A4100001 | 1 | CATTLEMAN FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0405003 | 1 | BARREL 7.1/2″ .357MAG/38SP. |
| 5 | 0400005 | 1 | CYLINDER .357MAG |
| 7 | 0400007 | 1 | HAND |
| 8 | 0000008 | 1 | CIVIL BRASS BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0000011 | 1 | GRIP |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0946015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0000026 | 1 | CIVIL BRASS TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0400219 | 1 | SAA EJECTOR N.M.4.3/4″.357MG ASS. |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0446 | CATTLEMAN BUNTLINE REV. 18″ .357MAG BRASS CAT.1499 | 18” | 357MAG. |
| 0450 | CATTLEMAN REV. QD. 4.3/4″ .45LC BRASS CAT.1518 | 4.3/4” | 45LC |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A4100001 | 1 | CATTLEMAN FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0410003 | 1 | BARREL 4.3/4″ .45LC |
| 5 | 0410005 | 1 | CYLINDER .45LC |
| 7 | 0400007 | 1 | HAND |
| 8 | 0000008 | 1 | CIVIL BRASS BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0000011 | 1 | GRIP |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0940015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0000026 | 1 | CIVIL BRASS TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0410219 | 1 | SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0451 | CATTLEMAN REV. QD. 5.1/2″ .45LC BRASS CAT.1519 | 5.1/2” | 45LC |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A4100001 | 1 | CATTLEMAN FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0411003 | 1 | BARREL 5.1/2″ |
| 5 | 0410005 | 1 | CYLINDER .45LC |
| 7 | 0400007 | 1 | HAND |
| 8 | 0000008 | 1 | CIVIL BRASS BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0000011 | 1 | GRIP |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0940015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0000026 | 1 | CIVIL BRASS TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0410219 | 1 | SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0452 | CATTLEMAN REV. QD. SHERIFF`S 3″ .45LC BRASS CAT.4053 | 3” | 45LC |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0412001 | 1 | CATTLEMAN SHERIFF FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0412003 | 1 | BARREL 3″ .45LC |
| 5 | 0410005 | 1 | CYLINDER .45LC |
| 7 | 0400007 | 1 | HAND |
| 8 | 0000008 | 1 | CIVIL BRASS BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0000011 | 1 | GRIP |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0940015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0000026 | 1 | CIVIL BRASS TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0453 | CATTLEMAN REV. QD. SHERIFF`S 4″ .45LC BRASS CAT.5474 | 4” | 45LC |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0412001 | 1 | CATTLEMAN SHERIFF FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0413003 | 1 | BARREL 4″ .45LC |
| 5 | 0410005 | 1 | CYLINDER .45LC |
| 7 | 0400007 | 1 | HAND |
| 8 | 0000008 | 1 | CIVIL BRASS BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0000011 | 1 | GRIP |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0940015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0000026 | 1 | CIVIL BRASS TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0454 | CATTLEMAN REV. QD. 4″ WITH EJECT. .45LC BRASS CAT.5474 | 4” | 45LC |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A4100001 | 1 | CATTLEMAN FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0414003 | 1 | BARREL 4″ .45 |
| 5 | 0410005 | 1 | CYLINDER .45LC |
| 7 | 0400007 | 1 | HAND |
| 8 | 0000008 | 1 | CIVIL BRASS BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0000011 | 1 | GRIP |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0940015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0000026 | 1 | CIVIL BRASS TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0414143 | 1 | EJECTOR ROD TUBE 4″ |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0414219 | 1 | SAA EJECTOR N.M. 4″ ASSEMBLY |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0455 | CATTLEMAN REV. QD. 7.1/2″ .45LC BRASS CAT.1520 | 7.1/2” | 45LC |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A4100001 | 1 | CATTLEMAN FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0415003 | 1 | BARREL 7.1/2″ .45LC |
| 5 | 0410005 | 1 | CYLINDER .45LC |
| 7 | 0400007 | 1 | HAND |
| 8 | 0000008 | 1 | CIVIL BRASS BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0000011 | 1 | GRIP |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0940015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0000026 | 1 | CIVIL BRASS TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0410219 | 1 | SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0456 | CATTLEMAN BUNTLINE REV.QD. 18″.45LC BRASS CAT.1497 | 18” | 45LC |
| 0457 | CATTLEMAN BUNTLINE REV. 12″ .45LC BRASS CAT.1496 | 12” | 45LC |
| 0460 | CATTLEMAN REV. QD. 4.3/4″ .44/40 BRASS CAT.1515 | 4.3/4” | 44-40 |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A4100001 | 1 | CATTLEMAN FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0420003 | 1 | BARREL 4.3/4″ .44/40 |
| 5 | 0420005 | 1 | CYLINDER .44/40 |
| 7 | 0400007 | 1 | HAND |
| 8 | 0000008 | 1 | CIVIL BRASS BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0000011 | 1 | GRIP |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0940015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0000026 | 1 | CIVIL BRASS TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0410219 | 1 | SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0461 | CATTLEMAN REV. QD. 5.1/2″ .44/40 BRASS CAT.1516 | 5.1/2” | 44-40 |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A4100001 | 1 | CATTLEMAN FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0421003 | 1 | BARREL 5.1/2″ .44/40 |
| 5 | 0420005 | 1 | CYLINDER .44/40 |
| 7 | 0400007 | 1 | HAND |
| 8 | 0000008 | 1 | CIVIL BRASS BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0000011 | 1 | GRIP |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0940015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0000026 | 1 | CIVIL BRASS TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0410219 | 1 | SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0462 | CATTLEMAN REV. QD. SHERIFF`S 3″ .44/40 BRASS CAT.4052 | 3” | 44-40 |
| 0463 | CATTLEMAN REV. QD. SHERIFF`S 4″ .44/40 BRASS CAT.5475 | 4” | 44-40 |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0412001 | 1 | CATTLEMAN SHERIFF FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0423003 | 1 | BARREL 4″ .44/40 |
| 5 | 0420005 | 1 | CYLINDER .44/40 |
| 7 | 0400007 | 1 | HAND |
| 8 | 0000008 | 1 | CIVIL BRASS BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0000011 | 1 | GRIP |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0940015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0000026 | 1 | CIVIL BRASS TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0464 | CATTLEMAN REV.QD.4″WITH EJECT. .44/40 BRASS CAT.5475 | 4” | 44-40 |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A4100001 | 1 | CATTLEMAN FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 1 | ||
| 5 | 0420005 | 1 | CYLINDER .44/40 |
| 7 | 0400007 | 1 | HAND |
| 8 | 0000008 | 1 | CIVIL BRASS BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0000011 | 1 | GRIP |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0940015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0000026 | 1 | CIVIL BRASS TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0414143 | 1 | EJECTOR ROD TUBE 4″ |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0414219 | 1 | SAA EJECTOR N.M. 4″ ASSEMBLY |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0465 | CATTLEMAN REV. QD. 7.1/2″ .44/40 BRASS CAT.1517 | 7.1/2” | 44-40 |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A4100001 | 1 | CATTLEMAN FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0425003 | 1 | BARREL 7.1/2″ .44/40 |
| 5 | 0420005 | 1 | CYLINDER .44/40 |
| 7 | 0400007 | 1 | HAND |
| 8 | 0000008 | 1 | CIVIL BRASS BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0000011 | 1 | GRIP |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0940015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0000026 | 1 | CIVIL BRASS TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0410219 | 1 | SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0468 | CATTLEMAN REV.BUNTLINE QD.18″.44/40 BRASS CAT.9088 | 18” | 44-40 |
| 0472 | CATTLEMAN BIRDHEAD REV.3.1/2″.357M NEW MODEL WITH EJEC. CAT.8273 | 3.1/2” | 357MAG. |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A4100001 | 1 | CATTLEMAN FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0340003 | 1 | SA BARREL 3.1/2″ .357MAG |
| 5 | 0400005 | 1 | CYLINDER .357MAG |
| 7 | 0400007 | 1 | HAND |
| 8 | 0482008 | 1 | BIRDHEAD BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0482011 | 1 | BIRDHEAD GRIP |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0946015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 1 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 0338135 | 1 | EJECTOR SPRING 3.1/2″ |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0338143 | 1 | EJECTOR ROD TUBE 3.1/2″ |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0340219 | 1 | SAA EJECTOR N.M. 3.1/2″ .357MAG ASSEMBLY |
| 455 | 0338455 | 1 | CONNECT.SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0473 | CATTLEMAN BIRDHEAD REV.4.3/4″.357M NEW MODEL STEEL CAT.8305 | 4.3/4” | 357MAG. |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A4100001 | 1 | CATTLEMAN FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0400003 | 1 | BARREL 4.3/4″ .357MAG/38SP. |
| 5 | 0400005 | 1 | CYLINDER .357MAG |
| 7 | 0400007 | 1 | HAND |
| 8 | 0482008 | 1 | BIRDHEAD BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0482011 | 1 | BIRDHEAD GRIP |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0946015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 1 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0400219 | 1 | SAA EJECTOR N.M.4.3/4″.357MG ASS. |
| 455 | 0338455 | 1 | CONNECT.SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0476 | CATTLEMAN REV. QD.BRASS 4.3/4″ .45LC-45ACP WITH EXTRA CYL.CAT.6205 | 4.3/4” | 45LC/ACP |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A4100001 | 1 | CATTLEMAN FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0410003 | 1 | BARREL 4.3/4″ .45LC |
| 5 | 0410005 | 1 | CYLINDER .45LC |
| 5 | 0402005 | 1 | CYLINDER .45ACP |
| 7 | 0400007 | 1 | HAND |
| 8 | 0000008 | 1 | CIVIL BRASS BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0000011 | 1 | GRIP |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0940015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0000026 | 1 | CIVIL BRASS TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 2 | BASE PIN BUSHING |
| 219 | A0410219 | 1 | SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0477 | CATTLEMAN REV.QD.BRASS 5.1/2″ .45LC-45ACP WITH EXTRA CYL.CAT.6206 | 5.1/2” | 45LC/ACP |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A4100001 | 1 | CATTLEMAN FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0411003 | 1 | BARREL 5.1/2″ |
| 5 | 0410005 | 1 | CYLINDER .45LC |
| 5 | 0402005 | 1 | CYLINDER .45ACP |
| 7 | 0400007 | 1 | HAND |
| 8 | 0000008 | 1 | CIVIL BRASS BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0000011 | 1 | GRIP |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0940015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0000026 | 1 | CIVIL BRASS TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 2 | BASE PIN BUSHING |
| 219 | A0410219 | 1 | SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0478 | CATTLEMAN REV.QD.BRASS 7.1/2″ .45LC-45ACP WITH EXTRA CYL.CAT.6204 | 7.1/2” | 45LC/ACP |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A4100001 | 1 | CATTLEMAN FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0415003 | 1 | BARREL 7.1/2″ .45LC |
| 5 | 0410005 | 1 | CYLINDER .45LC |
| 5 | 0402005 | 1 | CYLINDER .45ACP |
| 7 | 0400007 | 1 | HAND |
| 8 | 0000008 | 1 | CIVIL BRASS BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0000011 | 1 | GRIP |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0940015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0000026 | 1 | CIVIL BRASS TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 2 | BASE PIN BUSHING |
| 219 | A0410219 | 1 | SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0479 | CATTLEMAN BIRDHEAD REV.3.1/2 .45LC NEW MODEL WITH EJEC. CAT.8276 | 3.1/2” | 45LC |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A4100001 | 1 | CATTLEMAN FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0346003 | 1 | SA BARREL 3.1/2″ .45 |
| 5 | 0410005 | 1 | CYLINDER .45LC |
| 7 | 0400007 | 1 | HAND |
| 8 | 0482008 | 1 | BIRDHEAD BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0482011 | 1 | BIRDHEAD GRIP |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0940015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 1 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 0338135 | 1 | EJECTOR SPRING 3.1/2″ |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0338143 | 1 | EJECTOR ROD TUBE 3.1/2″ |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0338219 | 1 | SAA EJECTOR N.M. 3.1/2″ .45LC ASSEMBLY |
| 455 | 0338455 | 1 | CONNECT.SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0484 | CATTLEMAN BIRDHEAD REV.4.3/4″.45LC NEW MODEL STEEL CAT.8304 | 4.3/4” | 45LC |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A4100001 | 1 | CATTLEMAN FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0410003 | 1 | BARREL 4.3/4″ .45LC |
| 5 | 0410005 | 1 | CYLINDER .45LC |
| 7 | 0400007 | 1 | HAND |
| 8 | 0482008 | 1 | BIRDHEAD BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0482011 | 1 | BIRDHEAD GRIP |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0940015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 1 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0410219 | 1 | SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 455 | 0338455 | 1 | CONNECT.SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0486 | CATTLEMAN BIRDHEAD REV. 5.1/2″.45LC NEW MODEL STEEL WITH EJEC.CAT.1519 | 5.1/2” | 45LC |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A4100001 | 1 | CATTLEMAN FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0411003 | 1 | BARREL 5.1/2″ |
| 5 | 0410005 | 1 | CYLINDER .45LC |
| 7 | 0400007 | 1 | HAND |
| 8 | 0482008 | 1 | BIRDHEAD BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0482011 | 1 | BIRDHEAD GRIP |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0940015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 1 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0410219 | 1 | SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 455 | 0338455 | 1 | CONNECT.SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0488 | CATTLEMAN BIRDHEAD REV.4″ WITH EJEC .45LC NEW MODEL STEEL CAT.5474 | 4” | 45LC |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A4100001 | 1 | CATTLEMAN FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0414003 | 1 | BARREL 4″ .45 |
| 5 | 0410005 | 1 | CYLINDER .45LC |
| 7 | 0400007 | 1 | HAND |
| 8 | 0482008 | 1 | BIRDHEAD BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0482011 | 1 | BIRDHEAD GRIP |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0940015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 1 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0414143 | 1 | EJECTOR ROD TUBE 4″ |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0414219 | 1 | SAA EJECTOR N.M. 4″ ASSEMBLY |
| 455 | 0338455 | 1 | CONNECT.SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0498 | CATTLEMAN BIRDHEAD REV.3″SHERIFF`S .45LC NEW MODEL STEEL CAT.4053 | 3” | 45LC |
| 0499 | CATTLEMAN BIRDHEAD REV. 4″SHERIFF`S .45LC NEW MODEL STEEL CAT.5474 | 4” | 45LC |
| 0500 | CATTLEMAN REV.TARGET 4.3/4″ .357MAG STEEL CAT.2604 | 4.3/4” | 357MAG. |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0500001 | 1 | CATTLEMAN TARGET FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0500003 | 1 | BARREL 4.3/4″ .357MAG/38SP. |
| 5 | 0400005 | 1 | CYLINDER .357MAG |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0101015 | 1 | SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 55 | 0310055 | 1 | REAR |
| 56 | 0500056 | 1 | FRONT SIGHT RAMP |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 153 | 1 | ||
| 154 | 0310154 | 1 | REAR SIGHT BLADE |
| 155 | 0310155 | 2 | FRONT SIGHT RAMP RET.SCREW |
| 157 | 0310157 | 1 | REAR SIGHT ELEV. SCREW |
| 158 | 0310158 | 1 | REAR SIGHT SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 189 | 0310189 | 2 | REAR SIGHT SPRING |
| 190 | 0500190 | 1 | REAR SIGHT RET.SCREW |
| 219 | A0400219 | 1 | SAA EJECTOR N.M.4.3/4″.357MG ASS. |
| 547 | 0310547 | 1 | REAR SIGHT ELEV.SCREW PIN |
| 575 | 0310575 | 2 | REAR SIGHT SCREW SPHERE |
| 576 | 0310576 | 1 | REAR SIGHT DETENT BALL SPRING |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0501 | CATTLEMAN REV. TARGET 5.1/2″.357MAG STEEL CAT.1534 | 5.1/2” | 357MAG. |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0500001 | 1 | CATTLEMAN TARGET FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0501003 | 1 | BARREL 4.3/4″ .357MAG/38SP. |
| 5 | 0400005 | 1 | CYLINDER .357MAG |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0101015 | 1 | SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 55 | 0310055 | 1 | REAR |
| 56 | 0500056 | 1 | FRONT SIGHT RAMP |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 153 | 1 | ||
| 154 | 0310154 | 1 | REAR SIGHT BLADE |
| 155 | 0310155 | 2 | FRONT SIGHT RAMP RET.SCREW |
| 157 | 0310157 | 1 | REAR SIGHT ELEV. SCREW |
| 158 | 0310158 | 1 | REAR SIGHT SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 189 | 0310189 | 2 | REAR SIGHT SPRING |
| 190 | 0500190 | 1 | REAR SIGHT RET.SCREW |
| 219 | A0400219 | 1 | SAA EJECTOR N.M.4.3/4″.357MG ASS. |
| 547 | 0310547 | 1 | REAR SIGHT ELEV.SCREW PIN |
| 575 | 0310575 | 2 | REAR SIGHT SCREW SPHERE |
| 576 | 0310576 | 1 | REAR SIGHT DETENT BALL SPRING |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0505 | CATTLEMAN REV.TARGET 7.1/2″ .357MAG STEEL CAT.1535 | 7.1/2” | 357MAG. |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0500001 | 1 | CATTLEMAN TARGET FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 1 | ||
| 5 | 0400005 | 1 | CYLINDER .357MAG |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0101015 | 1 | SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 55 | 0310055 | 1 | REAR |
| 56 | 0500056 | 1 | FRONT SIGHT RAMP |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 153 | 1 | ||
| 154 | 0310154 | 1 | REAR SIGHT BLADE |
| 155 | 0310155 | 2 | FRONT SIGHT RAMP RET.SCREW |
| 157 | 0310157 | 1 | REAR SIGHT ELEV. SCREW |
| 158 | 0310158 | 1 | REAR SIGHT SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 189 | 0310189 | 2 | REAR SIGHT SPRING |
| 190 | 0500190 | 1 | REAR SIGHT RET.SCREW |
| 219 | A0400219 | 1 | SAA EJECTOR N.M.4.3/4″.357MG ASS. |
| 547 | 0310547 | 1 | REAR SIGHT ELEV.SCREW PIN |
| 575 | 0310575 | 2 | REAR SIGHT SCREW SPHERE |
| 576 | 0310576 | 1 | REAR SIGHT DETENT BALL SPRING |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0506 | CATTLEMAN BUNTLINE REV.TARGET 18″ .357MAG STEEL CAT.1505 | 18” | 357MAG. |
| 0509 | S.A. REV.CARB.TARGET 18″ .357MAG CAT.1596 | 18” | 357MAG. |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0500001 | 1 | CATTLEMAN TARGET FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0506003 | 1 | BARREL 18″ TARGET .357MAG |
| 5 | 0400005 | 1 | CYLINDER .357MAG |
| 7 | 0400007 | 1 | HAND |
| 8 | 0409008 | 1 | BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0101015 | 1 | SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0409020 | 1 | MAIN SPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0409026 | 1 | TRIGGERGUARD |
| 31 | 0000031 | 1 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0409036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 56 | 0500056 | 1 | FRONT SIGHT RAMP |
| 57 | 0409057 | 1 | STOCK |
| 58 | 0120058 | 1 | BUTT PLATE |
| 59 | 0120059 | 1 | MAIN SPRING LOOP SCREW |
| 62 | 0200062 | 2 | BUTT PLATE SCREW |
| 63 | 0409063 | 1 | TANG SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 153 | 1 | ||
| 154 | 0500154 | 1 | REAR SIGHT BLADE |
| 155 | 0310155 | 2 | FRONT SIGHT RAMP RET.SCREW |
| 157 | 0500157 | 1 | REAR SIGHT ELEVATION SCREW |
| 158 | 0500158 | 2 | REAR SIGHT SCREW |
| 159 | 0500159 | 1 | REAR SIGHT |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 189 | 0500189 | 1 | REAR SIGHT SPRING |
| 190 | 0500190 | 2 | REAR SIGHT RET.SCREW |
| 219 | A0400219 | 1 | SAA EJECTOR N.M.4.3/4″.357MG ASS. |
| 547 | 0500547 | 1 | REAR SIGHT ELEV.SCREW PIN |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0510 | CATTLEMAN REV. TARGET 4.3/4″ .45LC STEEL CAT.1854 | 4.3/4” | 45LC |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0500001 | 1 | CATTLEMAN TARGET FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0510003 | 1 | BARREL 4.3/4″ .357MAG/38SP. |
| 5 | 0410005 | 1 | CYLINDER .45LC |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0101015 | 1 | SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 55 | 0310055 | 1 | REAR |
| 56 | 0500056 | 1 | FRONT SIGHT RAMP |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 153 | 1 | ||
| 154 | 0310154 | 1 | REAR SIGHT BLADE |
| 155 | 0310155 | 2 | FRONT SIGHT RAMP RET.SCREW |
| 157 | 0310157 | 1 | REAR SIGHT ELEV. SCREW |
| 158 | 0310158 | 1 | REAR SIGHT SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 189 | 0310189 | 2 | REAR SIGHT SPRING |
| 190 | 0500190 | 1 | REAR SIGHT RET.SCREW |
| 219 | A0410219 | 1 | SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 547 | 0310547 | 1 | REAR SIGHT ELEV.SCREW PIN |
| 575 | 0310575 | 2 | REAR SIGHT SCREW SPHERE |
| 576 | 0310576 | 1 | REAR SIGHT DETENT BALL SPRING |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0511 | CATTLEMAN REV.TARGET 5.1/2″ .45LC STEEL CAT.1532 | 5.1/2” | 45LC |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0500001 | 1 | CATTLEMAN TARGET FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 0511003 | 1 | BARREL 4.3/4″ .357MAG/38SP. |
| 5 | 0410005 | 1 | CYLINDER .45LC |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0101015 | 1 | SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 55 | 0310055 | 1 | REAR |
| 56 | 0500056 | 1 | FRONT SIGHT RAMP |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 153 | 1 | ||
| 154 | 0310154 | 1 | REAR SIGHT BLADE |
| 155 | 0310155 | 2 | FRONT SIGHT RAMP RET.SCREW |
| 157 | 0310157 | 1 | REAR SIGHT ELEV. SCREW |
| 158 | 0310158 | 1 | REAR SIGHT SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 189 | 0310189 | 2 | REAR SIGHT SPRING |
| 190 | 0500190 | 1 | REAR SIGHT RET.SCREW |
| 219 | A0410219 | 1 | SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 547 | 0310547 | 1 | REAR SIGHT ELEV.SCREW PIN |
| 575 | 0310575 | 2 | REAR SIGHT SCREW SPHERE |
| 576 | 0310576 | 1 | REAR SIGHT DETENT BALL SPRING |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0515 | CATTLEMAN REV. TARGET 7.1/2″ .45LC STEEL CAT.1533 | 7.1/2” | 45LC |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0500001 | 1 | CATTLEMAN TARGET FRAME ASSEMBLY |
| 2 | A0400002 | 1 | SAA HAMMER WITH SAFETY ASSEMBLY |
| 3 | 1 | ||
| 5 | 0410005 | 1 | CYLINDER .45LC |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0101015 | 1 | SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0400021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 55 | 0310055 | 1 | REAR |
| 56 | 0500056 | 1 | FRONT SIGHT RAMP |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 137 | 4500137 | 1 | BASE PIN SPRING |
| 139 | 0400139 | 1 | BASE PIN NUT |
| 140 | 0400140 | 1 | BASE PIN SCREW |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 153 | 1 | ||
| 154 | 0310154 | 1 | REAR SIGHT BLADE |
| 155 | 0310155 | 2 | FRONT SIGHT RAMP RET.SCREW |
| 157 | 0310157 | 1 | REAR SIGHT ELEV. SCREW |
| 158 | 0310158 | 1 | REAR SIGHT SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 189 | 0310189 | 2 | REAR SIGHT SPRING |
| 190 | 0500190 | 1 | REAR SIGHT RET.SCREW |
| 219 | A0410219 | 1 | SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 547 | 0310547 | 1 | REAR SIGHT ELEV.SCREW PIN |
| 575 | 0310575 | 2 | REAR SIGHT SCREW SPHERE |
| 576 | 0310576 | 1 | REAR SIGHT DETENT BALL SPRING |
| 692 | 0400692 | 1 | HAND PIN SCREW |
