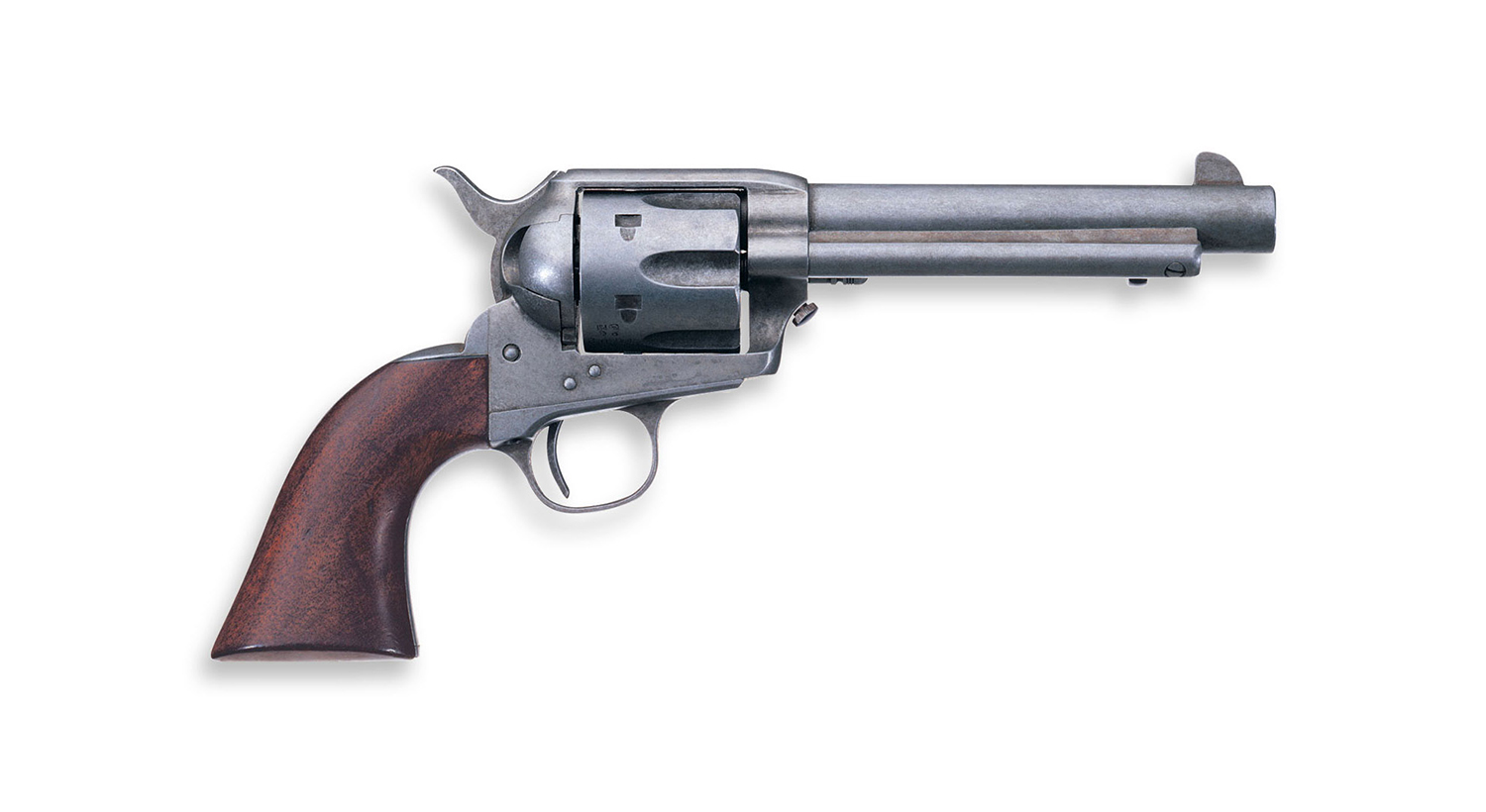

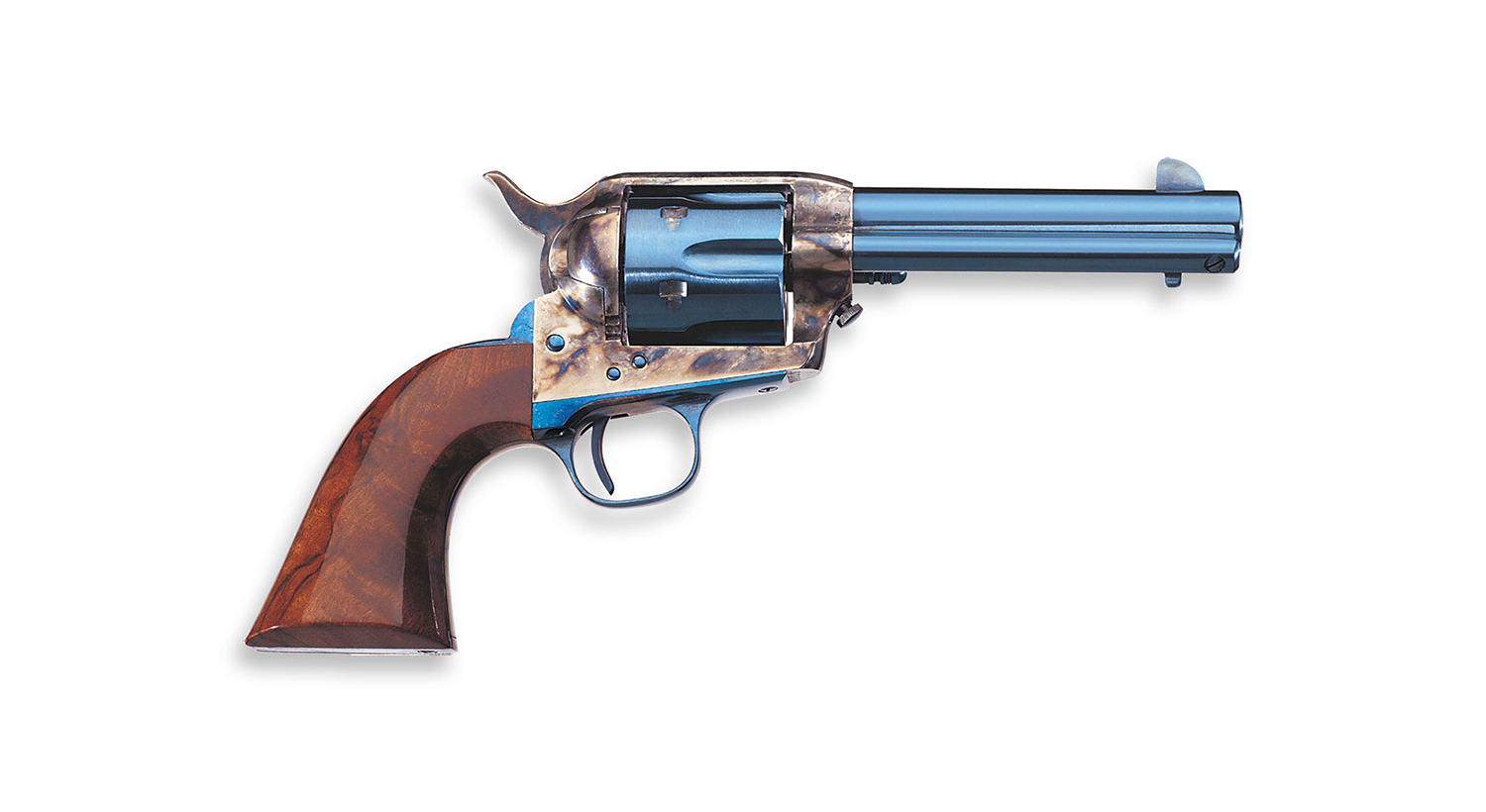

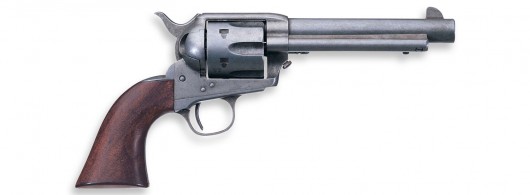

1873 CATTLEMAN OLD MODEL
Made in 1872 this is a gun that needs no introduction. The buyer can specify either the “old model” screw retainer for the cylinder pin or the more convenient “new model” plunger. The grip frame can be either steel or brass and, on the metal surface, you can select standard blueing, eye-catching charcoal blueing, full nickel plating, white finish, old west antique
finish. Grips can also be selected, i.e. smooth walnut, checkered walnut, black plastic, polymer ivory, pearl or buffalo. These single actions are available also with a “birdhead”
style grip (only in walnut). Uberti has such a vast range of Single Action revolvers – between the finish, caliber and barrel length, you are looking at an assortment of over 500,000 different models. Incredible but true!
Back to category
Made in 1872 this is a gun that needs no introduction. The buyer can specify either the “old model” screw retainer for the cylinder pin or the more convenient “new model” plunger. The grip frame can be either steel or brass and, on the metal surface, you can select standard blueing, eye-catching charcoal blueing, full nickel plating, white finish, old west antique
finish. Grips can also be selected, i.e. smooth walnut, checkered walnut, black plastic, polymer ivory, pearl or buffalo. These single actions are available also with a “birdhead”
style grip (only in walnut). Uberti has such a vast range of Single Action revolvers – between the finish, caliber and barrel length, you are looking at an assortment of over 500,000 different models. Incredible but true!
FinishesTechnicalParts and Schematics
| 000: | STANDARD |
|---|---|
| A00: | OLD WEST ANTIQUE PATINA FINISH REV. |
| C00: | CHARCOAL BLUE FINISH |
| W00: | WHITE FINISH FOR REV. |
| N00: | NICKEL PLATING FOR REV. |
| Caliber: | .32/20-.38SP-.357MAG-.38/40-.44SP-.45LC-.45ACP |
|---|---|
| Length of Barrel: | 3″ – 3½” – 4″ – 4¾” – 5½” – 7½” – 10″ |
| Overall Length: | bbl.5½ 11.10″ |
| Weight: | bbl.5½ 2.28 lbs |
| Barrel: | Forged steel |
| Frame: | Forged steel and color case |
| Twist: | Left |
| Cylinder: | Fluted |
| Triggerguard: | Steel |
| Grip: | One piece walnut |
| Magazine tube capacity: | 6 |
| Barrel Shape: | Round Tapered |
| Sight: | Fixed |
| Item | Model | Barrel | Length cal. |
|---|---|---|---|
| 0308 | CATTLEMAN REV. QD. 5.1/2″ .44-40 STEEL THUNDERER MOD. CAT.1516 | 5.1/2” | 44-40 |
| 0315 | CATTLEMAN REV. QD. 5.1/2″ 357MAG. STEEL THUNDERER MOD. CAT.1522 | 5.1/2” | 357MAG |

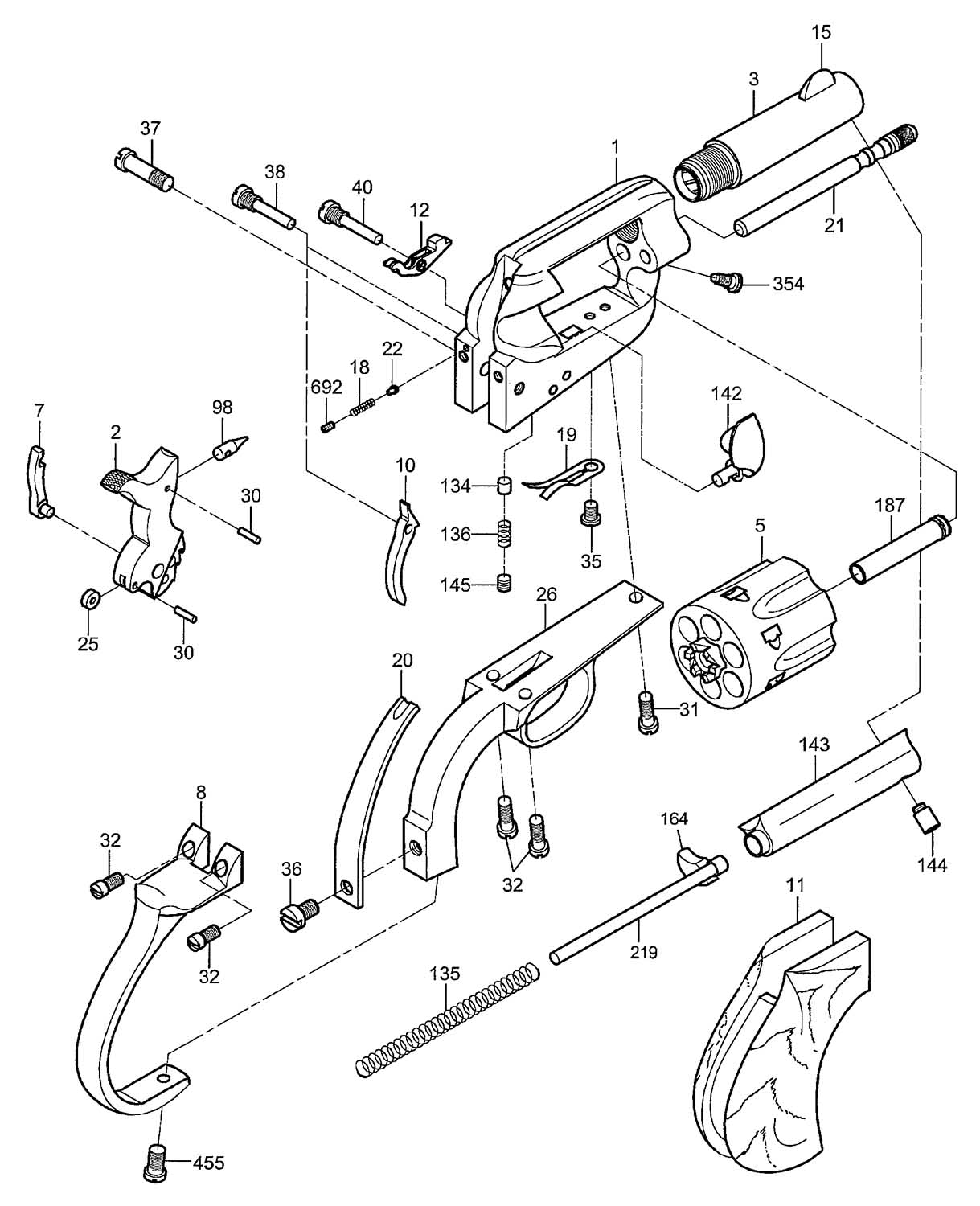

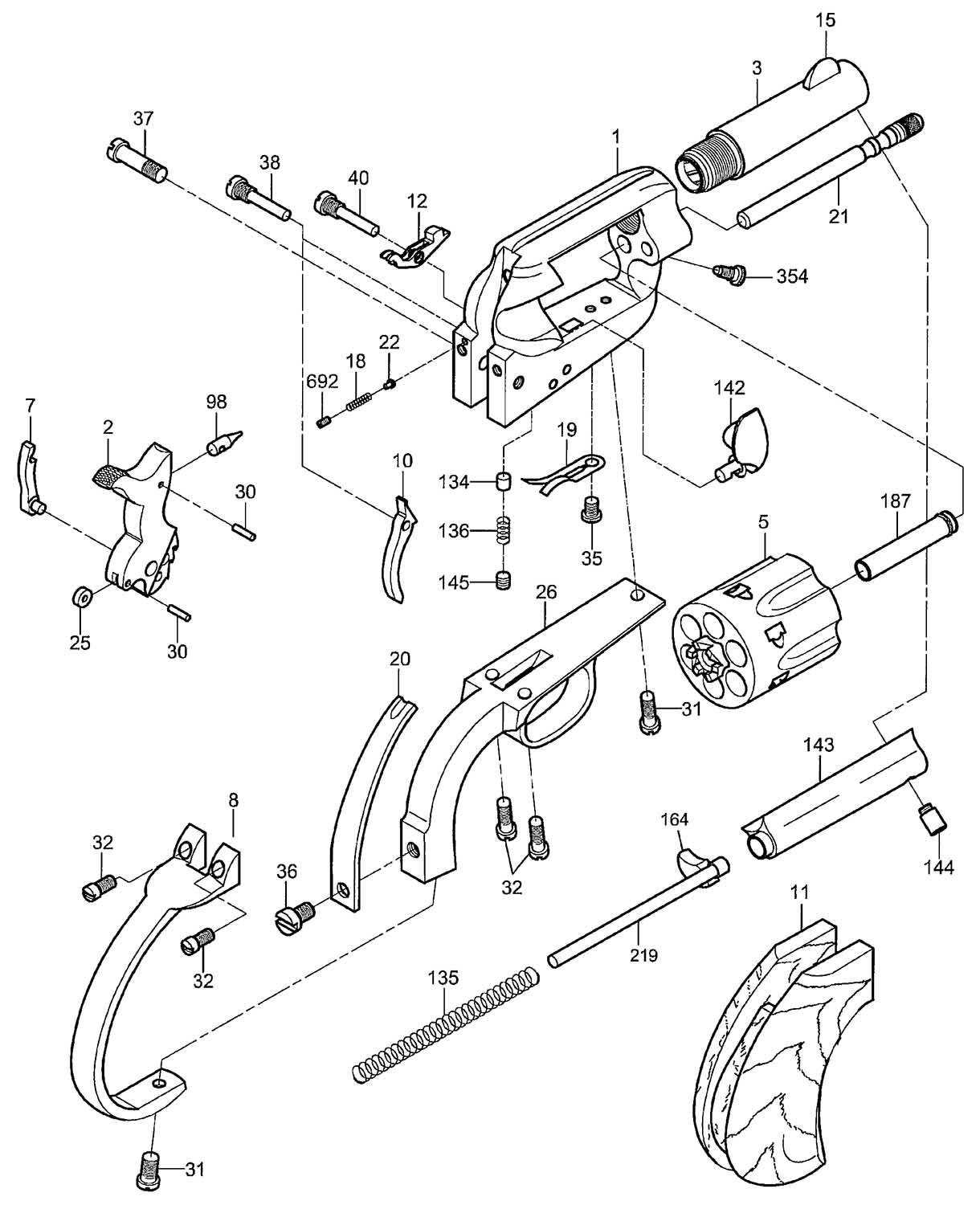

| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0502001 | 1 | CATTLEMAN O.M. FRAME ASSEMBLY |
| 2 | A0502002 | 1 | SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
| 3 | 0401003 | 1 | BARREL 5.1/2″ .357MAG/38SP. |
| 5 | 0400005 | 1 | CYLINDER .357MAG |
| 7 | 0400007 | 1 | HAND |
| 8 | 0338008 | 1 | `THUNDERER` BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0338011 | 1 | `THUNDERER` GRIP |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0400015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0502021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0400219 | 1 | SAA EJECTOR N.M.4.3/4″.357MG ASS. |
| 354 | 0502354 | 1 | SAFETY BASE PIN SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |

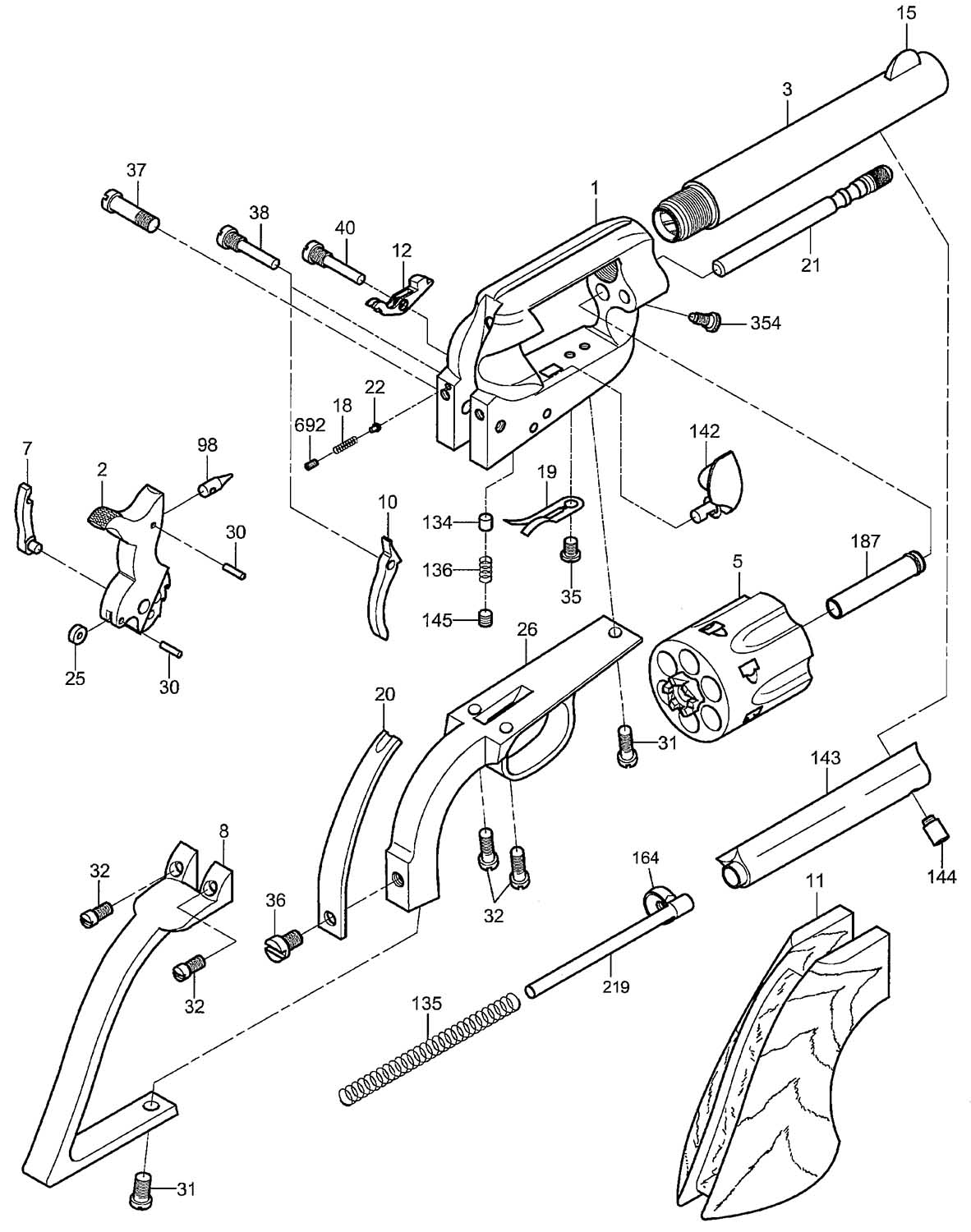

| 0318 | CATTLEMAN REV. QD. 7.1/2″ .357MAG STEEL THUNDERER MOD. CAT.1523 | 7.1/2” | 357MAG |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0502001 | 1 | CATTLEMAN O.M. FRAME ASSEMBLY |
| 2 | A0502002 | 1 | SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
| 3 | 0405003 | 1 | BARREL 7.1/2″ .357MAG/38SP. |
| 5 | 0400005 | 1 | CYLINDER .357MAG |
| 7 | 0400007 | 1 | HAND |
| 8 | 0338008 | 1 | `THUNDERER` BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0338011 | 1 | `THUNDERER` GRIP |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0400015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0502021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0400219 | 1 | SAA EJECTOR N.M.4.3/4″.357MG ASS. |
| 354 | 0502354 | 1 | SAFETY BASE PIN SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0326 | CATTLEMAN REV.QD.5.1/2″.45LC STEEL THUNDERER MOD. CAT.1519 | 5.1/2” | 45LC |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0502001 | 1 | CATTLEMAN O.M. FRAME ASSEMBLY |
| 2 | A0502002 | 1 | SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
| 3 | 0411003 | 1 | BARREL 5.1/2″ |
| 5 | 0410005 | 1 | CYLINDER .45LC |
| 7 | 0400007 | 1 | HAND |
| 8 | 0338008 | 1 | `THUNDERER` BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0338011 | 1 | `THUNDERER` GRIP |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0410015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0502021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 1 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0410219 | 1 | SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 354 | 0502354 | 1 | SAFETY BASE PIN SCREW |
| 455 | 0338455 | 1 | CONNECT.SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0327 | CATTLEMAN REV.QD.7.1/2″.45LC STEEL THUNDERER MOD. CAT.1520 | 7.1/2” | 45LC |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0502001 | 1 | CATTLEMAN O.M. FRAME ASSEMBLY |
| 2 | A0502002 | 1 | SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
| 3 | 0415003 | 1 | BARREL 7.1/2″ .45LC |
| 5 | 0410005 | 1 | CYLINDER .45LC |
| 7 | 0400007 | 1 | HAND |
| 8 | 0338008 | 1 | `THUNDERER` BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0338011 | 1 | `THUNDERER` GRIP |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0410015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0502021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0410219 | 1 | SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 354 | 0502354 | 1 | SAFETY BASE PIN SCREW |
| 455 | 0338455 | 1 | CONNECT.SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0328 | CATTLEMAN REV.QD.7.1/2″.44/40 STEEL THUNDERER MOD. CAT.1517 | 7.1/2” | 44-40 |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0502001 | 1 | CATTLEMAN O.M. FRAME ASSEMBLY |
| 2 | A0502002 | 1 | SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
| 3 | 0425003 | 1 | BARREL 7.1/2″ .44/40 |
| 5 | 0420005 | 1 | CYLINDER .44/40 |
| 7 | 0400007 | 1 | HAND |
| 8 | 0338008 | 1 | `THUNDERER` BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0338011 | 1 | `THUNDERER` GRIP |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0410015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0502021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0410219 | 1 | SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 354 | 0502354 | 1 | SAFETY BASE PIN SCREW |
| 455 | 0338455 | 1 | CONNECT.SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |

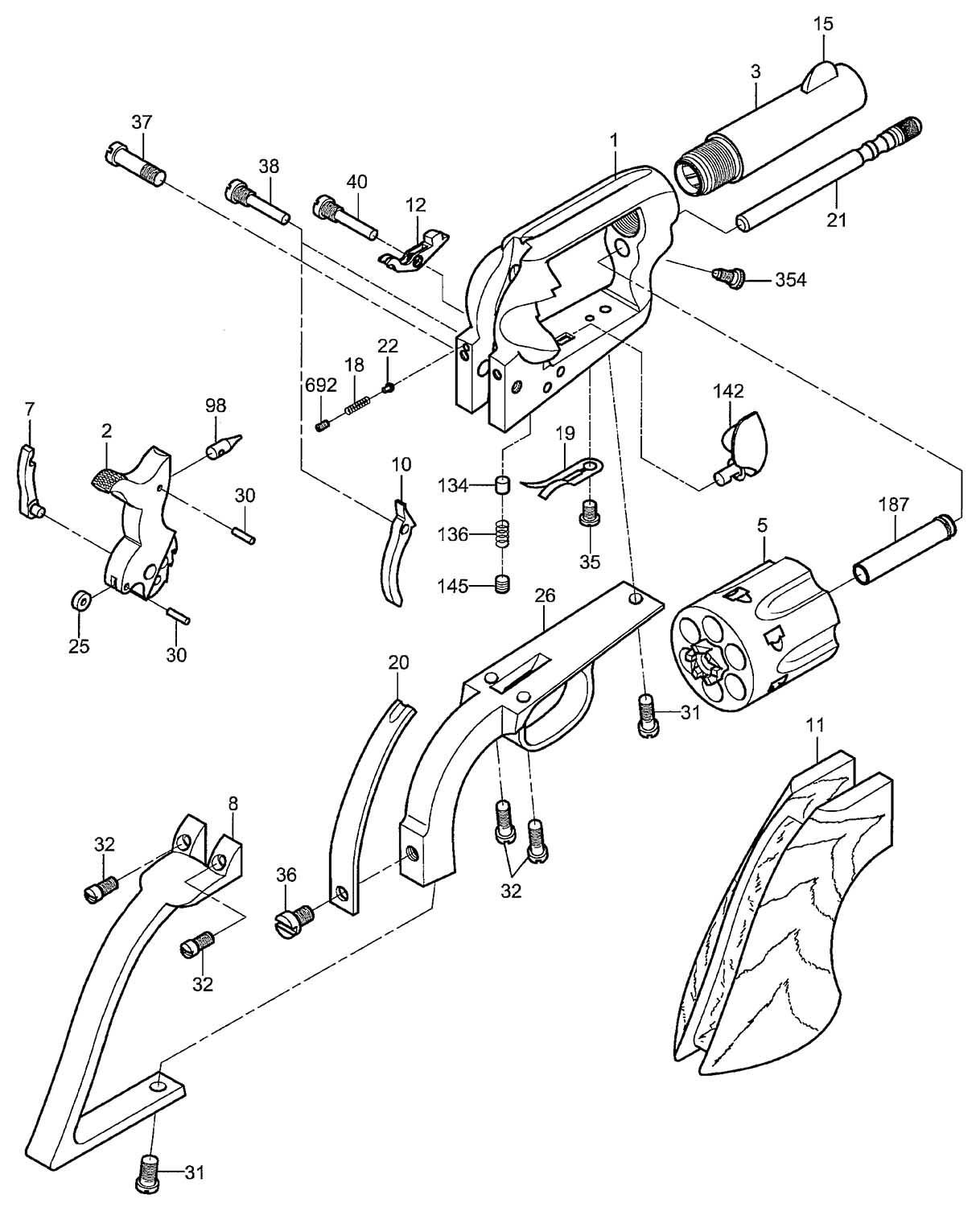

| 0329 | CATTLEMAN REV.QD.3.1/2″ .357MAG O.M.-HALF MOON EJEC.-STEEL CAT.8273 | 3.1/2” | 357MAG |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0502001 | 1 | CATTLEMAN O.M. FRAME ASSEMBLY |
| 2 | A0502002 | 1 | SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
| 3 | 0340003 | 1 | SA BARREL 3.1/2″ .357MAG |
| 5 | 0400005 | 1 | CYLINDER .357MAG |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0400015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0502021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 0338135 | 1 | EJECTOR SPRING 3.1/2″ |
| 143 | 0338143 | 1 | EJECTOR ROD TUBE 3.1/2″ |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0340219 | 1 | SAA EJECTOR N.M. 3.1/2″ .357MAG ASSEMBLY |
| 354 | 0502354 | 1 | SAFETY BASE PIN SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0330 | CATTLEMAN REV.QD.3.1/2″ .44/40 O.M.-HALF MOON EJEC.-STEEL CAT.8271 | 3.1/2” | 44-40 |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0502001 | 1 | CATTLEMAN O.M. FRAME ASSEMBLY |
| 2 | A0502002 | 1 | SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
| 3 | 0344003 | 1 | SA BARREL 3.1/2″ .44/40 |
| 5 | 0420005 | 1 | CYLINDER .44/40 |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0410015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0502021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 0338135 | 1 | EJECTOR SPRING 3.1/2″ |
| 143 | 0338143 | 1 | EJECTOR ROD TUBE 3.1/2″ |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0338219 | 1 | SAA EJECTOR N.M. 3.1/2″ .45LC ASSEMBLY |
| 354 | 0502354 | 1 | SAFETY BASE PIN SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0332 | CATTLEMAN REV.QD.3.1/2″ .45COLT O.M.-HALF MOON EJEC. STEEL CAT.8276 | 3.1/2” | 45LC |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0502001 | 1 | CATTLEMAN O.M. FRAME ASSEMBLY |
| 2 | A0502002 | 1 | SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
| 3 | 0346003 | 1 | SA BARREL 3.1/2″ .45 |
| 5 | 0410005 | 1 | CYLINDER .45LC |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0410015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0502021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 0338135 | 1 | EJECTOR SPRING 3.1/2″ |
| 143 | 0338143 | 1 | EJECTOR ROD TUBE 3.1/2″ |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0338219 | 1 | SAA EJECTOR N.M. 3.1/2″ .45LC ASSEMBLY |
| 354 | 0502354 | 1 | SAFETY BASE PIN SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0334 | CATTLEMAN REV.QD.SHERIFF`S 3″.44/40 STEEL THUNDERER MOD. CAT.4052 | 3” | 44-40 |
| 0335 | CATTLEMAN REV.QD.SHERIFF`S 4″.44/40 STEEL THUNDERER MOD. CAT.5475 | 4” | 44-40 |
| 0336 | CATTLEMAN REV.QD.SHERIFF`S 3″.45LC STEEL THUNDERER MOD. CAT.4053 | 3” | 45LC |
| 0337 | CATTLEMAN REV.QD.SHERIFF`S 4″.45LC STEEL THUNDERER MOD.CAT.5474 | 4” | 45LC |
| 0338 | CATTLEMAN REV.QD.3.1/2″.45ACP STEEL THUNDERER MOD. CAT.11094 | 3.1/2” | 45ACP |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0502001 | 1 | CATTLEMAN O.M. FRAME ASSEMBLY |
| 2 | A0502002 | 1 | SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
| 3 | 0346003 | 1 | SA BARREL 3.1/2″ .45 |
| 5 | 0402005 | 1 | CYLINDER .45ACP |
| 7 | 0400007 | 1 | HAND |
| 8 | 0338008 | 1 | `THUNDERER` BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0338011 | 1 | `THUNDERER` GRIP |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0410015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0502021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 1 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 0338135 | 1 | EJECTOR SPRING 3.1/2″ |
| 143 | 0338143 | 1 | EJECTOR ROD TUBE 3.1/2″ |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0338219 | 1 | SAA EJECTOR N.M. 3.1/2″ .45LC ASSEMBLY |
| 354 | 0502354 | 1 | SAFETY BASE PIN SCREW |
| 455 | 0338455 | 1 | CONNECT.SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0339 | CATTLEMAN REV.QD.4.3/4″.45ACP STEEL THUNDERER MOD. CAT.11117 | 4.3/4” | 45ACP |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0502001 | 1 | CATTLEMAN O.M. FRAME ASSEMBLY |
| 2 | A0502002 | 1 | SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
| 3 | 0410003 | 1 | BARREL 4.3/4″ .45LC |
| 5 | 0402005 | 1 | CYLINDER .45ACP |
| 7 | 0400007 | 1 | HAND |
| 8 | 0338008 | 1 | `THUNDERER` BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0338011 | 1 | `THUNDERER` GRIP |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0410015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0502021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 1 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0410219 | 1 | SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 354 | 0502354 | 1 | SAFETY BASE PIN SCREW |
| 455 | 0338455 | 1 | CONNECT.SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0340 | CATTLEMAN REV.QD.3.1/2″.357M STEEL THUNDERER MOD. CAT.8273 | 3.1/2” | 357MAG |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0502001 | 1 | CATTLEMAN O.M. FRAME ASSEMBLY |
| 2 | A0502002 | 1 | SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
| 3 | 0340003 | 1 | SA BARREL 3.1/2″ .357MAG |
| 5 | 0400005 | 1 | CYLINDER .357MAG |
| 7 | 0400007 | 1 | HAND |
| 8 | 0338008 | 1 | `THUNDERER` BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0338011 | 1 | `THUNDERER` GRIP |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0400015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0502021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 1 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 0338135 | 1 | EJECTOR SPRING 3.1/2″ |
| 143 | 0338143 | 1 | EJECTOR ROD TUBE 3.1/2″ |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0340219 | 1 | SAA EJECTOR N.M. 3.1/2″ .357MAG ASSEMBLY |
| 354 | 0502354 | 1 | SAFETY BASE PIN SCREW |
| 455 | 0338455 | 1 | CONNECT.SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0341 | CATTLEMAN REV.QD.4.3/4″.357MAG STEEL THUNDERER MOD.CAT.8305 | 4.3/4” | 357MAG |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0502001 | 1 | CATTLEMAN O.M. FRAME ASSEMBLY |
| 2 | A0502002 | 1 | SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
| 3 | 0400003 | 1 | BARREL 4.3/4″ .357MAG/38SP. |
| 5 | 0400005 | 1 | CYLINDER .357MAG |
| 7 | 0400007 | 1 | HAND |
| 8 | 0338008 | 1 | `THUNDERER` BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0338011 | 1 | `THUNDERER` GRIP |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0400015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0502021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 1 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0400219 | 1 | SAA EJECTOR N.M.4.3/4″.357MG ASS. |
| 354 | 0502354 | 1 | SAFETY BASE PIN SCREW |
| 455 | 0338455 | 1 | CONNECT.SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0342 | CATTLEMAN REV.QD.3.1/2″.44S&W SP STEEL THUNDERER MOD. CAT.8270 | 3.1/2” | 44SPEC. |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0502001 | 1 | CATTLEMAN O.M. FRAME ASSEMBLY |
| 2 | A0502002 | 1 | SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
| 3 | 0344003 | 1 | SA BARREL 3.1/2″ .44/40 |
| 5 | 0680005 | 1 | CYLINDER .44S&WSP |
| 7 | 0400007 | 1 | HAND |
| 8 | 0338008 | 1 | `THUNDERER` BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0338011 | 1 | `THUNDERER` GRIP |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0410015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0502021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 1 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 0338135 | 1 | EJECTOR SPRING 3.1/2″ |
| 143 | 0338143 | 1 | EJECTOR ROD TUBE 3.1/2″ |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0338219 | 1 | SAA EJECTOR N.M. 3.1/2″ .45LC ASSEMBLY |
| 354 | 0502354 | 1 | SAFETY BASE PIN SCREW |
| 455 | 0338455 | 1 | CONNECT.SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0343 | CATTLEMAN REV.QD.4.3/4″.44S&W SP STEEL THUNDERER MOD. CAT.8302 | 4.3/4” | 44SPEC. |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0502001 | 1 | CATTLEMAN O.M. FRAME ASSEMBLY |
| 2 | A0502002 | 1 | SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
| 3 | 0420003 | 1 | BARREL 4.3/4″ .44/40 |
| 5 | 0680005 | 1 | CYLINDER .44S&WSP |
| 7 | 0400007 | 1 | HAND |
| 8 | 0338008 | 1 | `THUNDERER` BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0338011 | 1 | `THUNDERER` GRIP |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0410015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0502021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 1 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0410219 | 1 | SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 354 | 0502354 | 1 | SAFETY BASE PIN SCREW |
| 455 | 0338455 | 1 | CONNECT.SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0344 | CATTLEMAN REV.QD.3.1/2″.44/40 STEEL THUNDERER MOD. CAT.8271 | 3.1/2” | 44-40 |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0502001 | 1 | CATTLEMAN O.M. FRAME ASSEMBLY |
| 2 | A0502002 | 1 | SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
| 3 | 0344003 | 1 | SA BARREL 3.1/2″ .44/40 |
| 5 | 0420005 | 1 | CYLINDER .44/40 |
| 7 | 0400007 | 1 | HAND |
| 8 | 0338008 | 1 | `THUNDERER` BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0338011 | 1 | `THUNDERER` GRIP |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0410015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0502021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 1 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 0338135 | 1 | EJECTOR SPRING 3.1/2″ |
| 143 | 0338143 | 1 | EJECTOR ROD TUBE 3.1/2″ |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0338219 | 1 | SAA EJECTOR N.M. 3.1/2″ .45LC ASSEMBLY |
| 354 | 0502354 | 1 | SAFETY BASE PIN SCREW |
| 455 | 0338455 | 1 | CONNECT.SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0345 | CATTLEMAN REV.QD.4.3/4″.44/40 STEEL THUNDERER MOD. CAT.8303 | 4.3/4” | 44-40 |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0502001 | 1 | CATTLEMAN O.M. FRAME ASSEMBLY |
| 2 | A0502002 | 1 | SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
| 3 | 0420003 | 1 | BARREL 4.3/4″ .44/40 |
| 5 | 0420005 | 1 | CYLINDER .44/40 |
| 7 | 0400007 | 1 | HAND |
| 8 | 0338008 | 1 | `THUNDERER` BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0338011 | 1 | `THUNDERER` GRIP |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0410015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0502021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 1 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0410219 | 1 | SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 354 | 0502354 | 1 | SAFETY BASE PIN SCREW |
| 455 | 0338455 | 1 | CONNECT.SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0346 | CATTLEMAN REV.QD.3.1/2″ .45LC STEEL THUNDERER MOD. CAT.8276 | 3.1/2” | 45LC |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0502001 | 1 | CATTLEMAN O.M. FRAME ASSEMBLY |
| 2 | A0502002 | 1 | SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
| 3 | 0346003 | 1 | SA BARREL 3.1/2″ .45 |
| 5 | 0410005 | 1 | CYLINDER .45LC |
| 7 | 0400007 | 1 | HAND |
| 8 | 0338008 | 1 | `THUNDERER` BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0338011 | 1 | `THUNDERER` GRIP |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0410015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0502021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 1 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 0338135 | 1 | EJECTOR SPRING 3.1/2″ |
| 143 | 0338143 | 1 | EJECTOR ROD TUBE 3.1/2″ |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0338219 | 1 | SAA EJECTOR N.M. 3.1/2″ .45LC ASSEMBLY |
| 354 | 0502354 | 1 | SAFETY BASE PIN SCREW |
| 455 | 0338455 | 1 | CONNECT.SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0347 | CATTLEMAN REV.QD.4.3/4″.45LC STEEL THUNDERER MOD. CAT.8304 | 4.3/4” | 45LC |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0502001 | 1 | CATTLEMAN O.M. FRAME ASSEMBLY |
| 2 | A0502002 | 1 | SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
| 3 | 0410003 | 1 | BARREL 4.3/4″ .45LC |
| 5 | 0410005 | 1 | CYLINDER .45LC |
| 7 | 0400007 | 1 | HAND |
| 8 | 0338008 | 1 | `THUNDERER` BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0338011 | 1 | `THUNDERER` GRIP |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0410015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0502021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 1 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0410219 | 1 | SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 354 | 0502354 | 1 | SAFETY BASE PIN SCREW |
| 455 | 0338455 | 1 | CONNECT.SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0348 | CATTLEMAN REV.QD.3.1/2″.45LC/ACP WITH EXTRA CYL.STEEL THUNDERER MOD. CAT.8276 | 3.1/2” | 45LC/ACP |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0502001 | 1 | CATTLEMAN O.M. FRAME ASSEMBLY |
| 2 | A0502002 | 1 | SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
| 3 | 0346003 | 1 | SA BARREL 3.1/2″ .45 |
| 5 | 0410005 | 1 | CYLINDER .45LC |
| 5 | 0402005 | 1 | CYLINDER .45ACP |
| 7 | 0400007 | 1 | HAND |
| 8 | 0338008 | 1 | `THUNDERER` BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0338011 | 1 | `THUNDERER` GRIP |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0410015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0502021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 1 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 0338135 | 1 | EJECTOR SPRING 3.1/2″ |
| 143 | 0338143 | 1 | EJECTOR ROD TUBE 3.1/2″ |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 2 | BASE PIN BUSHING |
| 219 | A0338219 | 1 | SAA EJECTOR N.M. 3.1/2″ .45LC ASSEMBLY |
| 354 | 0502354 | 1 | SAFETY BASE PIN SCREW |
| 455 | 0338455 | 1 | CONNECT.SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0349 | CATTLEMAN REV.QD.4.3/4″.45LC/ACP WITH EXTRA CYL. STEEL THUNDERER MOD CAT.8304 | 4.3/4” | 45LC/ACP |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0502001 | 1 | CATTLEMAN O.M. FRAME ASSEMBLY |
| 2 | A0502002 | 1 | SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
| 3 | 0410003 | 1 | BARREL 4.3/4″ .45LC |
| 5 | 0410005 | 1 | CYLINDER .45LC |
| 5 | 0402005 | 1 | CYLINDER .45ACP |
| 7 | 0400007 | 1 | HAND |
| 8 | 0338008 | 1 | `THUNDERER` BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0338011 | 1 | `THUNDERER` GRIP |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0410015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0502021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 1 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 2 | BASE PIN BUSHING |
| 219 | A0410219 | 1 | SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 354 | 0502354 | 1 | SAFETY BASE PIN SCREW |
| 455 | 0338455 | 1 | CONNECT.SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0469 | CATTLEMAN BIRDHEAD REV.3.1/2″.45LC OLD MODEL WITH EJEC. CAT.8276 | 3.1/2” | 45LC |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0502001 | 1 | CATTLEMAN O.M. FRAME ASSEMBLY |
| 2 | A0502002 | 1 | SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
| 3 | 0346003 | 1 | SA BARREL 3.1/2″ .45 |
| 5 | 0410005 | 1 | CYLINDER .45LC |
| 7 | 0400007 | 1 | HAND |
| 8 | 0482008 | 1 | BIRDHEAD BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0482011 | 1 | BIRDHEAD GRIP |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0410015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0502021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 1 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 0338135 | 1 | EJECTOR SPRING 3.1/2″ |
| 143 | 0338143 | 1 | EJECTOR ROD TUBE 3.1/2″ |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0338219 | 1 | SAA EJECTOR N.M. 3.1/2″ .45LC ASSEMBLY |
| 354 | 0502354 | 1 | SAFETY BASE PIN SCREW |
| 455 | 0338455 | 1 | CONNECT.SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0502 | CATTLEMAN O.M.REV.QD.STEEL 4.3/4″ .357MAG CAT.1521 | 4.3/4” | 357MAG. |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0502001 | 1 | CATTLEMAN O.M. FRAME ASSEMBLY |
| 2 | A0502002 | 1 | SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
| 3 | 0400003 | 1 | BARREL 4.3/4″ .357MAG/38SP. |
| 5 | 0400005 | 1 | CYLINDER .357MAG |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0400015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0502021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | B0400219 | 1 | SAA EJECTOR O.M.4.3/4″.357MG ASS. |
| 354 | 0502354 | 1 | SAFETY BASE PIN SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0503 | CATTLEMAN O.M.REV.QD.STEEL 5.1/2″ .357MAG CAT.1522 | 5.1/2” | 357MAG. |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0502001 | 1 | CATTLEMAN O.M. FRAME ASSEMBLY |
| 2 | A0502002 | 1 | SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
| 3 | 0401003 | 1 | BARREL 5.1/2″ .357MAG/38SP. |
| 5 | 0400005 | 1 | CYLINDER .357MAG |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0400015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0502021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | B0400219 | 1 | SAA EJECTOR O.M.4.3/4″.357MG ASS. |
| 354 | 0502354 | 1 | SAFETY BASE PIN SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0504 | CATTLEMAN O.M.REV.QD.STEEL 7.1/2″ .357MAG CAT.1523 | 7.1/2” | 357MAG. |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0502001 | 1 | CATTLEMAN O.M. FRAME ASSEMBLY |
| 2 | A0502002 | 1 | SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
| 3 | 0405003 | 1 | BARREL 7.1/2″ .357MAG/38SP. |
| 5 | 0400005 | 1 | CYLINDER .357MAG |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0400015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0502021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | B0400219 | 1 | SAA EJECTOR O.M.4.3/4″.357MG ASS. |
| 354 | 0502354 | 1 | SAFETY BASE PIN SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0508 | CATTLEMAN O.M.REV.QD.STEEL 3″.45LC CAT.4053 | 3” | 45LC |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0508001 | 1 | SAA O.M.SHERIFF FRAME ASSEMBLY |
| 2 | A0502002 | 1 | SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
| 3 | 0412003 | 1 | BARREL 3″ .45LC |
| 5 | 0410005 | 1 | CYLINDER .45LC |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0410015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0502021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 354 | 0502354 | 1 | SAFETY BASE PIN SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0512 | CATTLEMAN O.M.REV.QD.STEEL 4.3/4″ .45LC CAT.1518 | 4.3/4” | 45LC |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0502001 | 1 | CATTLEMAN O.M. FRAME ASSEMBLY |
| 2 | A0502002 | 1 | SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
| 3 | 0410003 | 1 | BARREL 4.3/4″ .45LC |
| 5 | 0410005 | 1 | CYLINDER .45LC |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0410015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0502021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | B0410219 | 1 | SAA EJECTOR O.M.4.3/4″.45LC ASS. |
| 354 | 0502354 | 1 | SAFETY BASE PIN SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0513 | CATTLEMAN O.M.REV.QD.STEEL 5.1/2″ .45LC CAT.1519 | 5.1/2” | 45LC |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0502001 | 1 | CATTLEMAN O.M. FRAME ASSEMBLY |
| 2 | A0502002 | 1 | SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
| 3 | 0411003 | 1 | BARREL 5.1/2″ |
| 5 | 0410005 | 1 | CYLINDER .45LC |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0410015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0502021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | B0410219 | 1 | SAA EJECTOR O.M.4.3/4″.45LC ASS. |
| 354 | 0502354 | 1 | SAFETY BASE PIN SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0514 | CATTLEMAN O.M.REV.QD.STEEL 7.1/2″ .45LC CAT.1520 | 7.1/2” | 45LC |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0502001 | 1 | CATTLEMAN O.M. FRAME ASSEMBLY |
| 2 | A0502002 | 1 | SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
| 3 | 0415003 | 1 | BARREL 7.1/2″ .45LC |
| 5 | 0410005 | 1 | CYLINDER .45LC |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0410015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0502021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | B0410219 | 1 | SAA EJECTOR O.M.4.3/4″.45LC ASS. |
| 354 | 0502354 | 1 | SAFETY BASE PIN SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0518 | CATTLEMAN O.M.REV.QD.STEEL 4″.45LC CAT.5474 | 4” | 45LC |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0508001 | 1 | SAA O.M.SHERIFF FRAME ASSEMBLY |
| 2 | A0502002 | 1 | SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
| 3 | 0413003 | 1 | BARREL 4″ .45LC |
| 5 | 0410005 | 1 | CYLINDER .45LC |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0410015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0502021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 145 | 0400145 | 1 | GATE CATCH SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 354 | 0502354 | 1 | SAFETY BASE PIN SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0522 | CATTLEMAN O.M.REV.QD.STEEL 4.3/4″ .44/40 CAT.1515 | 4.3/4” | 44-40 |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0502001 | 1 | CATTLEMAN O.M. FRAME ASSEMBLY |
| 2 | A0502002 | 1 | SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
| 3 | 0420003 | 1 | BARREL 4.3/4″ .44/40 |
| 5 | 0420005 | 1 | CYLINDER .44/40 |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0410015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0502021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | B0410219 | 1 | SAA EJECTOR O.M.4.3/4″.45LC ASS. |
| 354 | 0502354 | 1 | SAFETY BASE PIN SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0523 | CATTLEMAN O.M.REV.QD.STEEL 5.1/2″ .44/40 CAT.1516 | 5.1/2” | 44-40 |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0502001 | 1 | CATTLEMAN O.M. FRAME ASSEMBLY |
| 2 | A0502002 | 1 | SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
| 3 | 0421003 | 1 | BARREL 5.1/2″ .44/40 |
| 5 | 0420005 | 1 | CYLINDER .44/40 |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0410015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0502021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | B0410219 | 1 | SAA EJECTOR O.M.4.3/4″.45LC ASS. |
| 354 | 0502354 | 1 | SAFETY BASE PIN SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0524 | CATTLEMAN O.M.REV.QD.STEEL 7.1/2″ .44/40 CAT.1517 | 7.1/2” | 44-40 |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0502001 | 1 | CATTLEMAN O.M. FRAME ASSEMBLY |
| 2 | A0502002 | 1 | SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
| 3 | 0425003 | 1 | BARREL 7.1/2″ .44/40 |
| 5 | 0420005 | 1 | CYLINDER .44/40 |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0410015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0502021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | B0410219 | 1 | SAA EJECTOR O.M.4.3/4″.45LC ASS. |
| 354 | 0502354 | 1 | SAFETY BASE PIN SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0526 | CATTLEMAN O.M.REV.QD.STEEL 3″.44/40 CAT.4052 | 3” | 44-40 |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0508001 | 1 | SAA O.M.SHERIFF FRAME ASSEMBLY |
| 2 | A0502002 | 1 | SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
| 3 | 0422003 | 1 | BARREL 3″ .44/40 |
| 5 | 0420005 | 1 | CYLINDER .44/40 |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0410015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0502021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 354 | 0502354 | 1 | SAFETY BASE PIN SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0528 | CATTLEMAN O.M.REV.QD.STEEL 4″.44/40 CAT.5475 | 4” | 44-40 |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0508001 | 1 | SAA O.M.SHERIFF FRAME ASSEMBLY |
| 2 | A0502002 | 1 | SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
| 3 | 0423003 | 1 | BARREL 4″ .44/40 |
| 5 | 0420005 | 1 | CYLINDER .44/40 |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0410015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0502021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 354 | 0502354 | 1 | SAFETY BASE PIN SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0532 | CATTLEMAN O.M.REV.QD.STEEL 4.3/4″ .45ACP CAT.11117 | 4.3/4” | 45ACP |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0502001 | 1 | CATTLEMAN O.M. FRAME ASSEMBLY |
| 2 | A0502002 | 1 | SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
| 3 | 0410003 | 1 | BARREL 4.3/4″ .45LC |
| 5 | 0402005 | 1 | CYLINDER .45ACP |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0410015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0502021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | B0410219 | 1 | SAA EJECTOR O.M.4.3/4″.45LC ASS. |
| 354 | 0502354 | 1 | SAFETY BASE PIN SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0533 | CATTLEMAN O.M.REV.QD.STEEL 5.1/2″ .45ACP CAT.11118 | 5.1/2” | 45ACP |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0502001 | 1 | CATTLEMAN O.M. FRAME ASSEMBLY |
| 2 | A0502002 | 1 | SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
| 3 | 0411003 | 1 | BARREL 5.1/2″ |
| 5 | 0402005 | 1 | CYLINDER .45ACP |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0410015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0502021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | B0410219 | 1 | SAA EJECTOR O.M.4.3/4″.45LC ASS. |
| 354 | 0502354 | 1 | SAFETY BASE PIN SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0534 | CATTLEMAN O.M.REV.QD.STEEL 7.1/2″ .45ACP CAT.11095 | 7.1/2” | 45ACP |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0502001 | 1 | CATTLEMAN O.M. FRAME ASSEMBLY |
| 2 | A0502002 | 1 | SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
| 3 | 0415003 | 1 | BARREL 7.1/2″ .45LC |
| 5 | 0402005 | 1 | CYLINDER .45ACP |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0410015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0502021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | B0410219 | 1 | SAA EJECTOR O.M.4.3/4″.45LC ASS. |
| 354 | 0502354 | 1 | SAFETY BASE PIN SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0536 | CATTLEMAN O.M.REV.QD.STEEL 4.3/4″ .45LC-45ACP WITH EXTRA CYL.CAT.6205 | 4.3/4” | 45LC/ACP |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0502001 | 1 | CATTLEMAN O.M. FRAME ASSEMBLY |
| 2 | A0502002 | 1 | SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
| 3 | 0410003 | 1 | BARREL 4.3/4″ .45LC |
| 5 | 0402005 | 1 | CYLINDER .45ACP |
| 5 | 0410005 | 1 | CYLINDER .45LC |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0410015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0502021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 2 | BASE PIN BUSHING |
| 219 | B0410219 | 1 | SAA EJECTOR O.M.4.3/4″.45LC ASS. |
| 354 | 0502354 | 1 | SAFETY BASE PIN SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0537 | CATTLEMAN O.M.REV.QD.STEEL 5.1/2″ .45LC-45ACP WITH EXTRA CYL.CAT.6206 | 5.1/2” | 45LC/ACP |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0502001 | 1 | CATTLEMAN O.M. FRAME ASSEMBLY |
| 2 | A0502002 | 1 | SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
| 3 | 0411003 | 1 | BARREL 5.1/2″ |
| 5 | 0410005 | 1 | CYLINDER .45LC |
| 5 | 0402005 | 1 | CYLINDER .45ACP |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0410015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0502021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 2 | BASE PIN BUSHING |
| 219 | B0410219 | 1 | SAA EJECTOR O.M.4.3/4″.45LC ASS. |
| 354 | 0502354 | 1 | SAFETY BASE PIN SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0538 | CATTLEMAN O.M.REV.QD.STEEL 7.1/2″ .45LC-45ACP WITH EXTRA CYL.CAT.6204 | 7.1/2” | 45LC/ACP |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0502001 | 1 | CATTLEMAN O.M. FRAME ASSEMBLY |
| 2 | A0502002 | 1 | SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
| 3 | 0415003 | 1 | BARREL 7.1/2″ .45LC |
| 5 | 0410005 | 1 | CYLINDER .45LC |
| 5 | 0402005 | 1 | CYLINDER .45ACP |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0410015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0502021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 2 | BASE PIN BUSHING |
| 219 | B0410219 | 1 | SAA EJECTOR O.M.4.3/4″.45LC ASS. |
| 354 | 0502354 | 1 | SAFETY BASE PIN SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0543 | CATTLEMAN BIRDHEAD REV.3.1/2″ .357M OLD MODEL WITH EJEC. CAT.8273 | 3.1/2” | 357MAG. |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0502001 | 1 | CATTLEMAN O.M. FRAME ASSEMBLY |
| 2 | A0502002 | 1 | SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
| 3 | 0340003 | 1 | SA BARREL 3.1/2″ .357MAG |
| 5 | 0400005 | 1 | CYLINDER .357MAG |
| 7 | 0400007 | 1 | HAND |
| 8 | 0482008 | 1 | BIRDHEAD BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0482011 | 1 | BIRDHEAD GRIP |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0400015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0502021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 1 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 0338135 | 1 | EJECTOR SPRING 3.1/2″ |
| 143 | 0338143 | 1 | EJECTOR ROD TUBE 3.1/2″ |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0340219 | 1 | SAA EJECTOR N.M. 3.1/2″ .357MAG ASSEMBLY |
| 354 | 0502354 | 1 | SAFETY BASE PIN SCREW |
| 455 | 0338455 | 1 | CONNECT.SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0544 | CATTLEMAN BIRDHEAD REV.4.3/4″.45LC OLD MODEL WITH EJEC. CAT.8304 | 4.3/4” | 45LC |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0502001 | 1 | CATTLEMAN O.M. FRAME ASSEMBLY |
| 2 | A0502002 | 1 | SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
| 3 | 0410003 | 1 | BARREL 4.3/4″ .45LC |
| 5 | 0410005 | 1 | CYLINDER .45LC |
| 7 | 0400007 | 1 | HAND |
| 8 | 0482008 | 1 | BIRDHEAD BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0482011 | 1 | BIRDHEAD GRIP |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0410015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0502021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 1 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0410219 | 1 | SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 354 | 0502354 | 1 | SAFETY BASE PIN SCREW |
| 455 | 0338455 | 1 | CONNECT.SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0549 | CATTLEMAN BIRDHEAD REV.4.3/4″ .357M OLD MODEL WITH EJEC. CAT.8305 | 4.3/4” | 357MAG. |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0502001 | 1 | CATTLEMAN O.M. FRAME ASSEMBLY |
| 2 | A0502002 | 1 | SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
| 3 | 0400003 | 1 | BARREL 4.3/4″ .357MAG/38SP. |
| 5 | 0400005 | 1 | CYLINDER .357MAG |
| 7 | 0400007 | 1 | HAND |
| 8 | 0482008 | 1 | BIRDHEAD BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0482011 | 1 | BIRDHEAD GRIP |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0400015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0502021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 1 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0400219 | 1 | SAA EJECTOR N.M.4.3/4″.357MG ASS. |
| 354 | 0502354 | 1 | SAFETY BASE PIN SCREW |
| 455 | 0338455 | 1 | CONNECT.SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0637 | CATTLEMAN REV.QD.4.3/4″.38/40 STEEL THUNDERER MOD. CAT.5537 | 4.3/4” | 38-40 |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0502001 | 1 | CATTLEMAN O.M. FRAME ASSEMBLY |
| 2 | A0502002 | 1 | SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
| 3 | 0685003 | 1 | BARREL 4.3/4″ .38/40 |
| 5 | 0685005 | 1 | CYLINDER .38/40 |
| 7 | 0400007 | 1 | HAND |
| 8 | 0338008 | 1 | `THUNDERER` BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0338011 | 1 | `THUNDERER` GRIP |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0410015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0502021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0410219 | 1 | SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 354 | 0502354 | 1 | SAFETY BASE PIN SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0638 | CATTLEMAN REV.QD.3.1/2″.32/20 STEEL THUNDERER MOD. CAT.10491 | 3.1/2” | 32-20 |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0502001 | 1 | CATTLEMAN O.M. FRAME ASSEMBLY |
| 2 | A0502002 | 1 | SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
| 3 | 0665003 | 1 | SA BARREL 3.1/2″ .32-20 |
| 5 | 0665005 | 1 | CYLINDER .32-20 |
| 7 | 0400007 | 1 | HAND |
| 8 | 0338008 | 1 | `THUNDERER` BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0338011 | 1 | `THUNDERER` GRIP |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0410015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0502021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 0338135 | 1 | EJECTOR SPRING 3.1/2″ |
| 143 | 0338143 | 1 | EJECTOR ROD TUBE 3.1/2″ |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0340219 | 1 | SAA EJECTOR N.M. 3.1/2″ .357MAG ASSEMBLY |
| 354 | 0502354 | 1 | SAFETY BASE PIN SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0639 | CATTLEMAN REV.QD.4.3/4″.32/20 STEEL THUNDERER MOD. CAT.10492 | 4.3/4” | 32-20 |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0502001 | 1 | CATTLEMAN O.M. FRAME ASSEMBLY |
| 2 | A0502002 | 1 | SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
| 3 | 0666003 | 1 | BARREL 4.3/4″ .32-20 |
| 5 | 0665005 | 1 | CYLINDER .32-20 |
| 7 | 0400007 | 1 | HAND |
| 8 | 0338008 | 1 | `THUNDERER` BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0338011 | 1 | `THUNDERER` GRIP |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0410015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0502021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0400219 | 1 | SAA EJECTOR N.M.4.3/4″.357MG ASS. |
| 354 | 0502354 | 1 | SAFETY BASE PIN SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0665 | CATTLEMAN REV.QD.3.1/2″ .32/20 O.M.-HALF MOON EJEC.STEEL CAT.10491 | 3.1/2” | 32-20 |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0502001 | 1 | CATTLEMAN O.M. FRAME ASSEMBLY |
| 2 | A0502002 | 1 | SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
| 3 | 0665003 | 1 | SA BARREL 3.1/2″ .32-20 |
| 5 | 0665005 | 1 | CYLINDER .32-20 |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0410015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0502021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 0338135 | 1 | EJECTOR SPRING 3.1/2″ |
| 143 | 0338143 | 1 | EJECTOR ROD TUBE 3.1/2″ |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | A0340219 | 1 | SAA EJECTOR N.M. 3.1/2″ .357MAG ASSEMBLY |
| 354 | 0502354 | 1 | SAFETY BASE PIN SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0666 | CATTLEMAN O.M.REV.QD.STEEL 4.3/4″ .32/20 CAT.10492 | 4.3/4” | 32-20 |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0502001 | 1 | CATTLEMAN O.M. FRAME ASSEMBLY |
| 2 | A0502002 | 1 | SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
| 3 | 0666003 | 1 | BARREL 4.3/4″ .32-20 |
| 5 | 0665005 | 1 | CYLINDER .32-20 |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0410015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0502021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | B0400219 | 1 | SAA EJECTOR O.M.4.3/4″.357MG ASS. |
| 354 | 0502354 | 1 | SAFETY BASE PIN SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0667 | CATTLEMAN O.M.REV.QD.STEEL 5.1/2″ .32/20 CAT.10493 | 5.1/2” | 32-20 |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0502001 | 1 | CATTLEMAN O.M. FRAME ASSEMBLY |
| 2 | A0502002 | 1 | SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
| 3 | 0667003 | 1 | BARREL 5.1/2″ .32-20 |
| 5 | 0665005 | 1 | CYLINDER .32-20 |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0410015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0502021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | B0400219 | 1 | SAA EJECTOR O.M.4.3/4″.357MG ASS. |
| 354 | 0502354 | 1 | SAFETY BASE PIN SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0668 | CATTLEMAN O.M.REV.QD.STEEL 7.1/2″ .32/20 CAT.10494 | 7.1/2” | 32-20 |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0502001 | 1 | CATTLEMAN O.M. FRAME ASSEMBLY |
| 2 | A0502002 | 1 | SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
| 3 | 0668003 | 1 | BARREL 7.1/2″ .32-20 |
| 5 | 0665005 | 1 | CYLINDER .32-20 |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0410015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0502021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | B0400219 | 1 | SAA EJECTOR O.M.4.3/4″.357MG ASS. |
| 354 | 0502354 | 1 | SAFETY BASE PIN SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0677 | CATTLEMAN O.M.REV.QD.STEEL 4.3/4″ .44S&W SP CAT.5539 | 4.3/4” | 44SPEC. |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0502001 | 1 | CATTLEMAN O.M. FRAME ASSEMBLY |
| 2 | A0502002 | 1 | SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
| 3 | 0420003 | 1 | BARREL 4.3/4″ .44/40 |
| 5 | 0680005 | 1 | CYLINDER .44S&WSP |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0410015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0502021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | B0410219 | 1 | SAA EJECTOR O.M.4.3/4″.45LC ASS. |
| 354 | 0502354 | 1 | SAFETY BASE PIN SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0678 | CATTLEMAN O.M.REV.QD.STEEL 5.1/2″ .44S&W SP CAT.5540 | 5.1/2” | 44SPEC. |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0502001 | 1 | CATTLEMAN O.M. FRAME ASSEMBLY |
| 2 | A0502002 | 1 | SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
| 3 | 0421003 | 1 | BARREL 5.1/2″ .44/40 |
| 5 | 0680005 | 1 | CYLINDER .44S&WSP |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0410015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0502021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | B0410219 | 1 | SAA EJECTOR O.M.4.3/4″.45LC ASS. |
| 354 | 0502354 | 1 | SAFETY BASE PIN SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0679 | CATTLEMAN O.M.REV.QD.STEEL 7.1/2″ .44S&W SP CAT.5541 | 7.1/2” | 44SPEC. |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0502001 | 1 | CATTLEMAN O.M. FRAME ASSEMBLY |
| 2 | A0502002 | 1 | SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
| 3 | 0425003 | 1 | BARREL 7.1/2″ .44/40 |
| 5 | 0680005 | 1 | CYLINDER .44S&WSP |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0410015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0502021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | B0410219 | 1 | SAA EJECTOR O.M.4.3/4″.45LC ASS. |
| 354 | 0502354 | 1 | SAFETY BASE PIN SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0683 | CATTLEMAN O.M.REV.QD.STEEL 4.3/4″ .38/40 CAT.5537 | 4.3/4” | 38-40 |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0502001 | 1 | CATTLEMAN O.M. FRAME ASSEMBLY |
| 2 | A0502002 | 1 | SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
| 3 | 0685003 | 1 | BARREL 4.3/4″ .38/40 |
| 5 | 0685005 | 1 | CYLINDER .38/40 |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0410015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0502021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | B0410219 | 1 | SAA EJECTOR O.M.4.3/4″.45LC ASS. |
| 354 | 0502354 | 1 | SAFETY BASE PIN SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0684 | CATTLEMAN O.M.REV.QD.STEEL 5.1/2″ .38/40 CAT.5542 | 5.1/2” | 38-40 |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0502001 | 1 | CATTLEMAN O.M. FRAME ASSEMBLY |
| 2 | A0502002 | 1 | SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
| 3 | 0686003 | 1 | BARREL 5.1/2″ .38/40 |
| 5 | 0685005 | 1 | CYLINDER .38/40 |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0410015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0502021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | B0410219 | 1 | SAA EJECTOR O.M.4.3/4″.45LC ASS. |
| 354 | 0502354 | 1 | SAFETY BASE PIN SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |
| 0688 | CATTLEMAN O.M.REV.QD.STEEL 7.1/2″ .38/40 CAT.5538 | 7.1/2” | 38-40 |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | A0502001 | 1 | CATTLEMAN O.M. FRAME ASSEMBLY |
| 2 | A0502002 | 1 | SAA O.M. HAMMER WITHOUT SAFETY ASSEMBLY |
| 3 | 0687003 | 1 | BARREL 7.1/2″ .38/40 |
| 5 | 0685005 | 1 | CYLINDER .38/40 |
| 7 | 0400007 | 1 | HAND |
| 8 | 0005008 | 1 | STEEL BACKSTRAP |
| 10 | 0400010 | 1 | TRIGGER |
| 11 | 0005011 | 1 | GRIPS |
| 12 | 0400012 | 1 | BOLT |
| 15 | 0410015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0000019 | 1 | TRIGGER BOLT SPRING |
| 20 | 0400020 | 1 | MAINSPRING |
| 21 | 0502021 | 1 | BASE PIN |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0005026 | 1 | STEEL TRIGGERGUARD |
| 31 | 0000031 | 2 | TRIGGERGUARD SCREW |
| 32 | 0000032 | 4 | REAR BACKSTRAP SCREW |
| 35 | 0000035 | 1 | SCREW |
| 36 | 0000036 | 1 | MAIN SPRING SCREW |
| 37 | 0400037 | 1 | HAMMER SCREW |
| 38 | 0000038 | 1 | TRIGGER SCREW |
| 40 | 0000040 | 1 | BOLT SCREW |
| 135 | 4500135 | 1 | EJECTOR SPRING |
| 143 | 0400143 | 1 | EJECTOR TUBE |
| 144 | 0400144 | 1 | EJECTOR TUBE SCREW |
| 187 | 0400187 | 1 | BASE PIN BUSHING |
| 219 | B0410219 | 1 | SAA EJECTOR O.M.4.3/4″.45LC ASS. |
| 354 | 0502354 | 1 | SAFETY BASE PIN SCREW |
| 692 | 0400692 | 1 | HAND PIN SCREW |
